This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0359228011
Active
mv396
3.96mm (.156") Pitch Wire-to-Board Terminal, Phosphor Bronze
Documents:

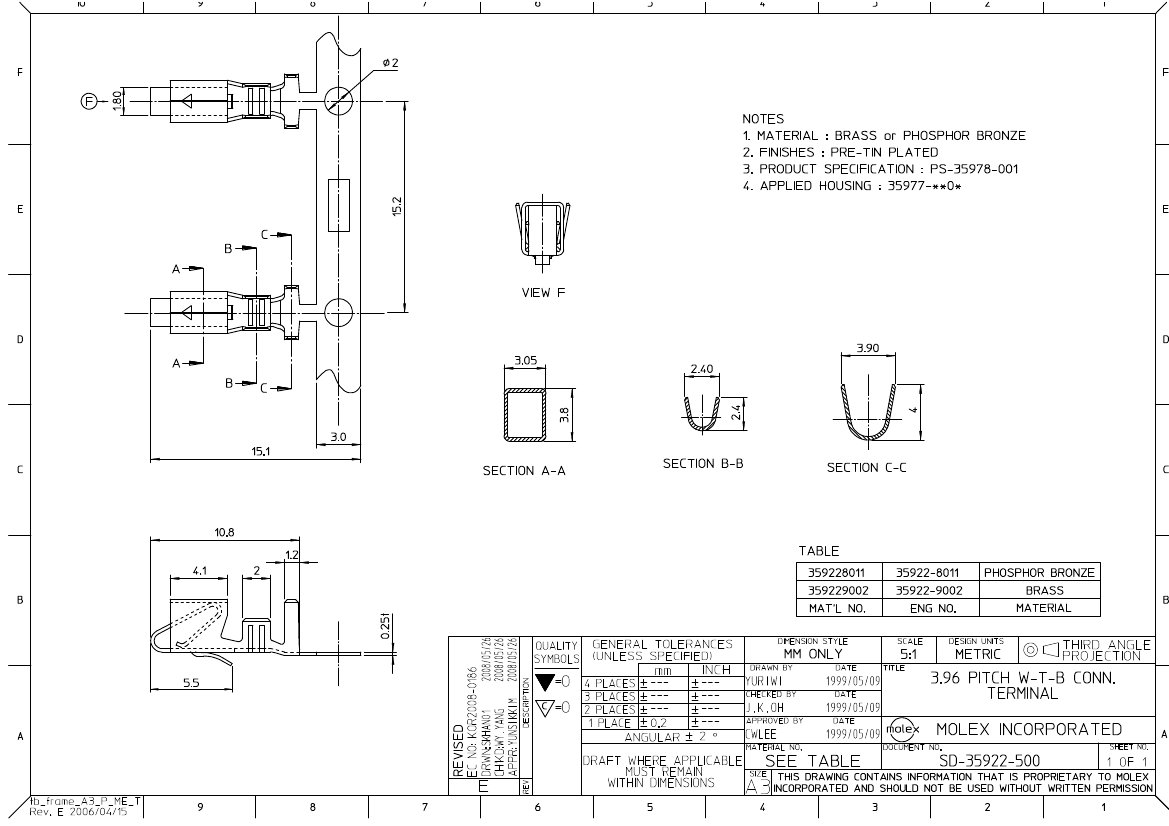

Drawing (PDF)
Product Specification PS-35978-001 (PDF)
Product Specification PS-35979-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Crimp Quality Equipment
MolexKits
Overview
Product Name
Crimp Terminals
35922
Yes
Yes
mv396
MV-396™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
Reel
60
1.5
60
1.5
Crimp or Compression
3.00mm (.118") max.
18, 20
N/A
Search Parts in this Series
35922Series
Use With
35977
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
T2 Terminator Die 0638557000
FineAdjust™
0638657000
Applicator
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-35922-001
PS-35978-001, PS-35979-001
SD-35922-500
This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
