36648-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 36648-001

36648-001: Description1 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG; CategoryThe connector; File Size342KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

36648-001 Overview

1 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG

36648-001 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Total number of contacts	1
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	plug
Manufacturer Series	42021
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	power connector
Connector male and female	Pin
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Shell material	Polyamide
Terminal type	riveting
UL flammability code	94V-0

Preview

Download Datasheet

View All

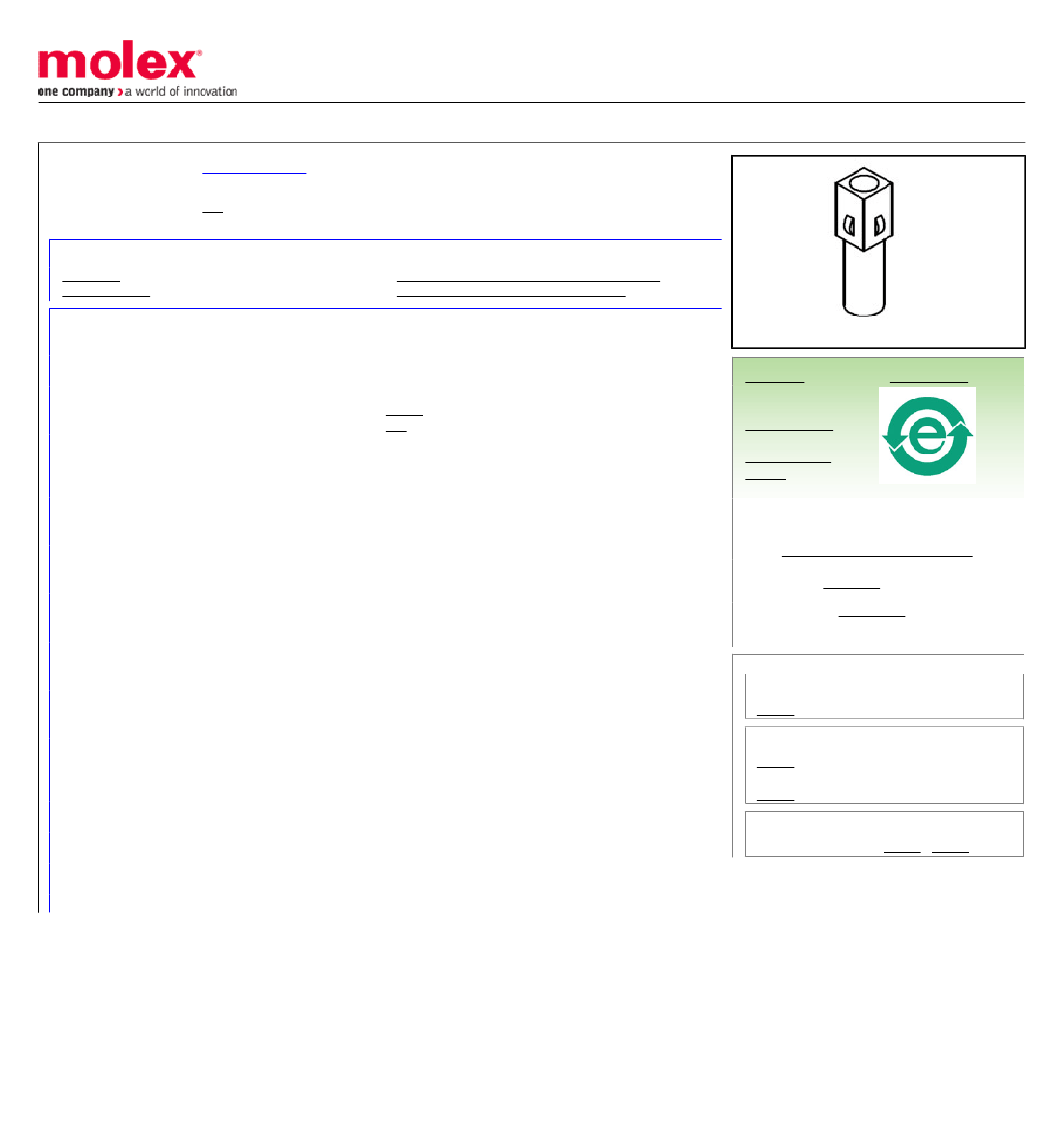

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0366480001

Active

mlx

2.13mm (.084") Diameter MLX™ Power Crimp Housing Plug, Nylon, 94V-2, 1 Circuit

Product Specification PS-42022-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Overview

Product Name

Crimp Housings

42021

mlx

MLX™

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Black

94V-0

Male

None

Yes

Nylon

Bag

0.000 In

0.00 mm

Yes

-55°C to +105°C

Search Parts in this Series

42021Series

Mates With

42002 MLX™ Power Connector Header,

42022 MLX™ Pin and Socket Receptacle,

43255 MLX™ Power Connector Header

Use With

MLX Crimp Terminal 42023 , 42024

Electrical

Current - Maximum per Contact

13.5A

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

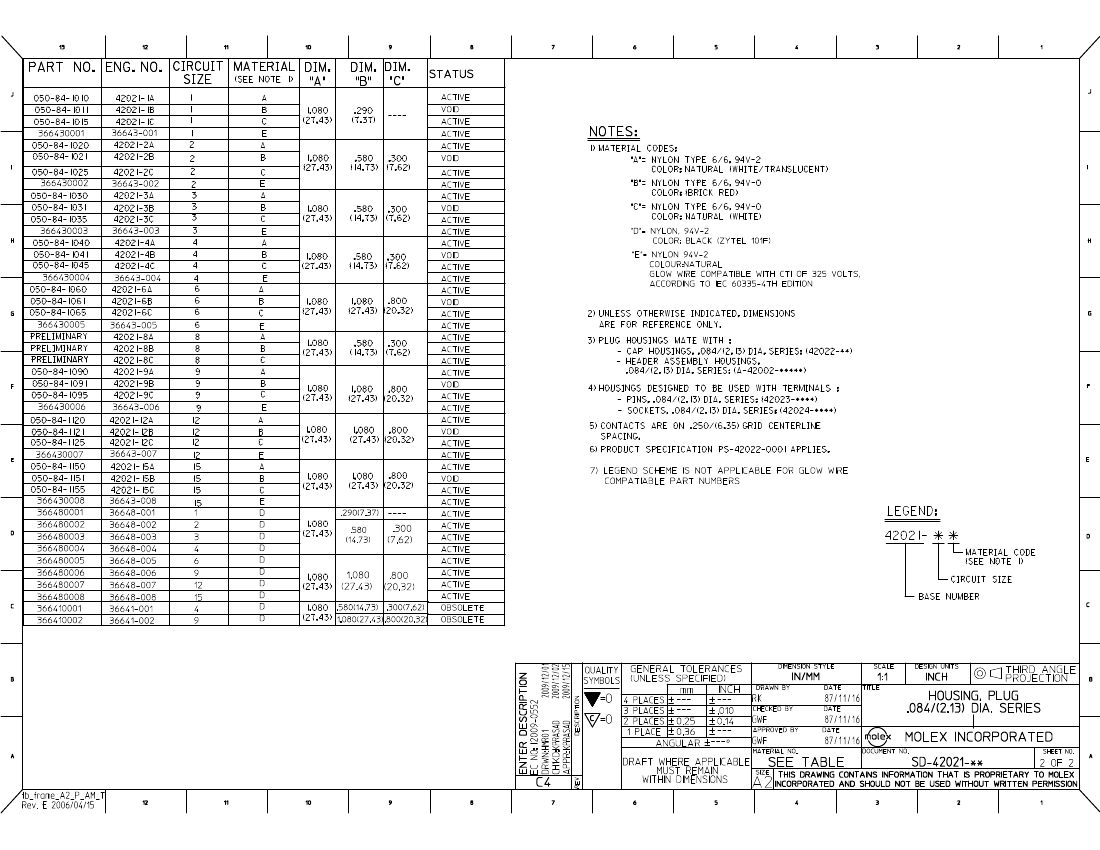

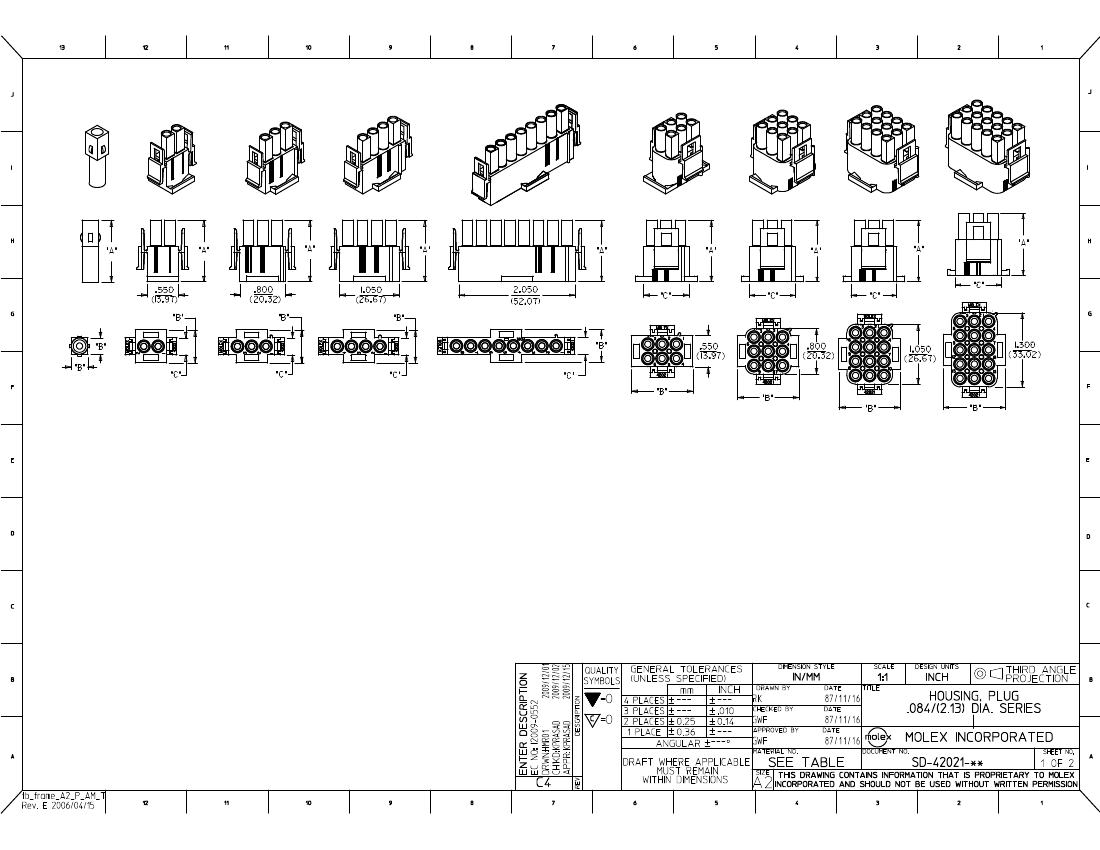

Sales Drawing

PK-42021-**

PS-42022-0001

SD-42021-**

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
