Part Number:
Status:
Description:
0394220007
Active

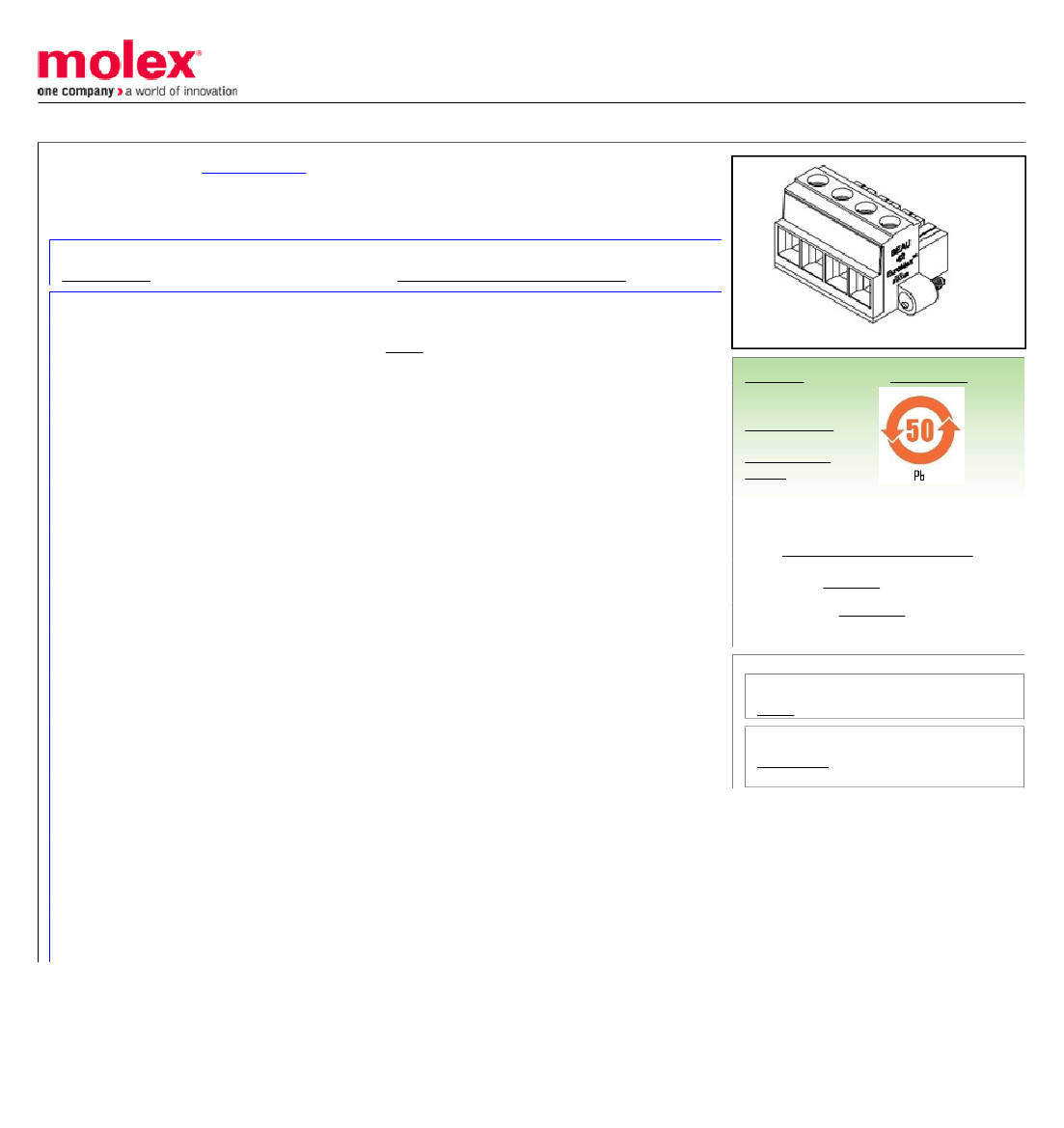

12.00mm (.472") Pitch Beau™ EuroMax™ Horizontal Plug, with Retention Screws, 7
Circuits
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39422
Wire-to-Board
Plug
EuroMax™Pluggable
Euro Block
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
7
Black
180° Angle
Yes
Brass
Tin
Tin
Polyester
1
Horizontal
N/A
No
0.472 In
12.00 mm
150
3.75
150
3.75
Yes
No
130°C
10, 12, 14, 3, 4, 6, 8
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39422Series
Mates With
39426-0007 Horizontal PCB Header, with
Threaded Retention Inserts
Electrical
Current - Maximum per Contact
Voltage - Maximum
85A
600V
Material Info
Old Part Number
424507
Reference - Drawing Numbers

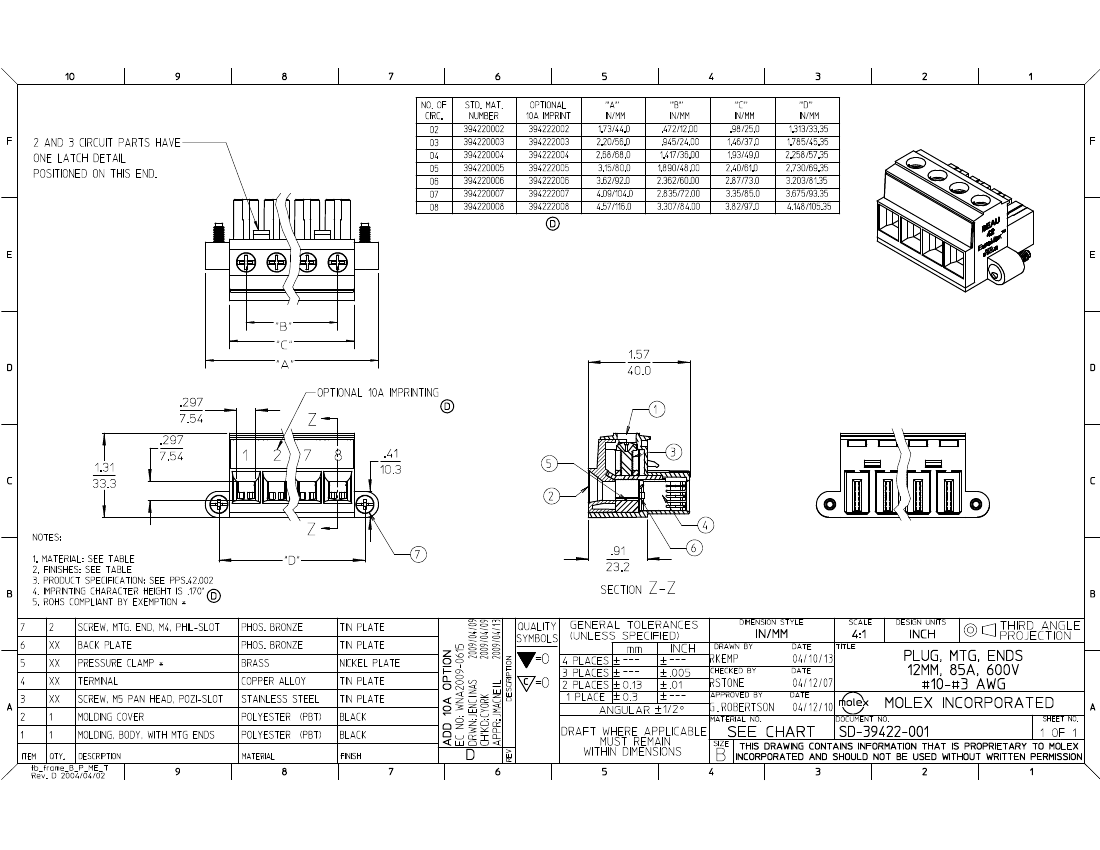

Sales Drawing
SD-39422-001
