This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395133004
Active
3.81mm (.150") Pitch Eurostyle™ Vertical Plug, Front Wire Entry, 4 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39513
Wire-to-Board
Front Wire Entry
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
4
Horizontal
None
1
Vertical
No
0.150 In
3.81 mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 26, 28, 30
0.05 - 1.31
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Search Parts in this Series
39513Series
Mates With
Most 3.81mm (.150") Pitch Industry
Standard PCB Headers, 39511 Vertical PCB
Header, 39512 Horizontal PCB Header
Material Info
Reference - Drawing Numbers
Product Specification

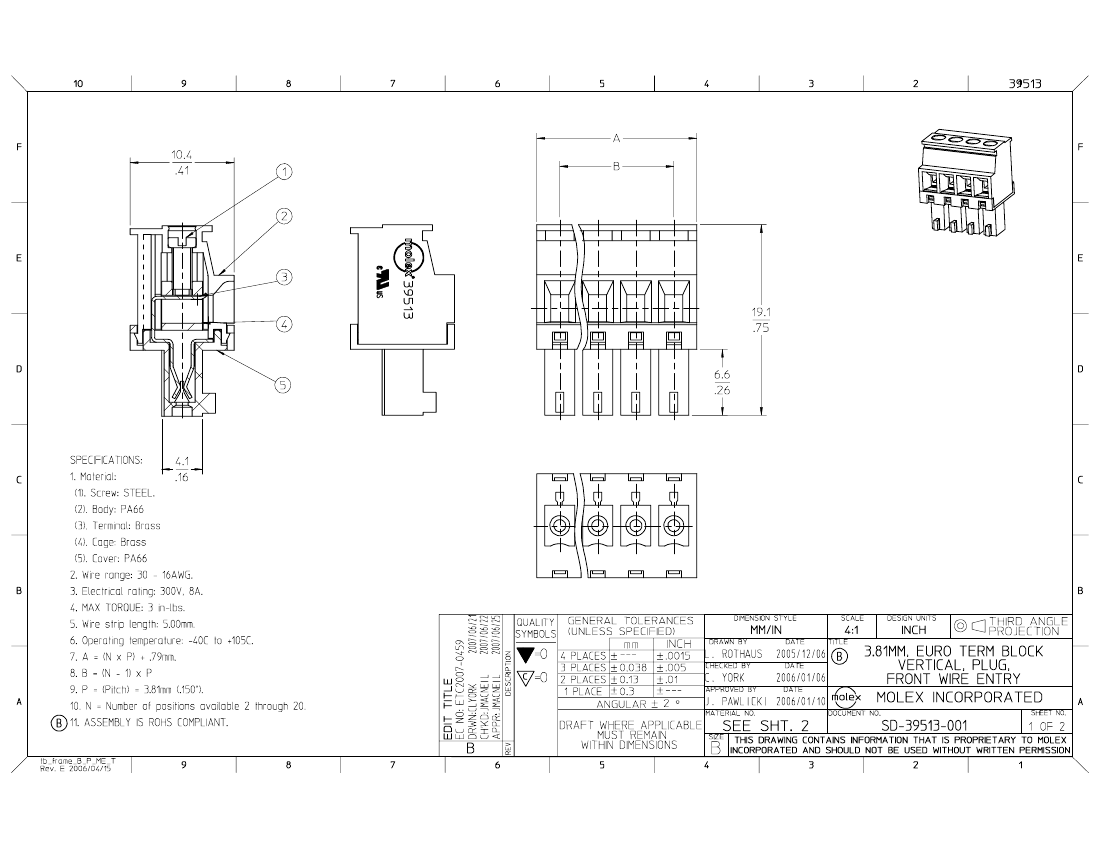

Sales Drawing
PS-39500-001
SD-39513-001
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
