This document was generated on 04/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0395282010
Active
5.00mm (.197") Pitch Eurostyle™ Vertical PCB Dual Level Header, Open Ends, 10
Circuits
Documents:
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39528
Wire-to-Board
PCB Header
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
10
N/A
Yes
2
Vertical
0.197 In
5.00 mm
0.120 In
5.00 mm
No
0.197 In
5.00 mm
Yes
Open Ends
Yes
N/A
-40°C to +105°C
N/A
Search Parts in this Series
39528Series
Mates With
39520 Horizontal Plug, 39523 Vertical
Plug, Most 5.00mm (.197") Pitch Industry
Standard Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Reference - Drawing Numbers
Product Specification

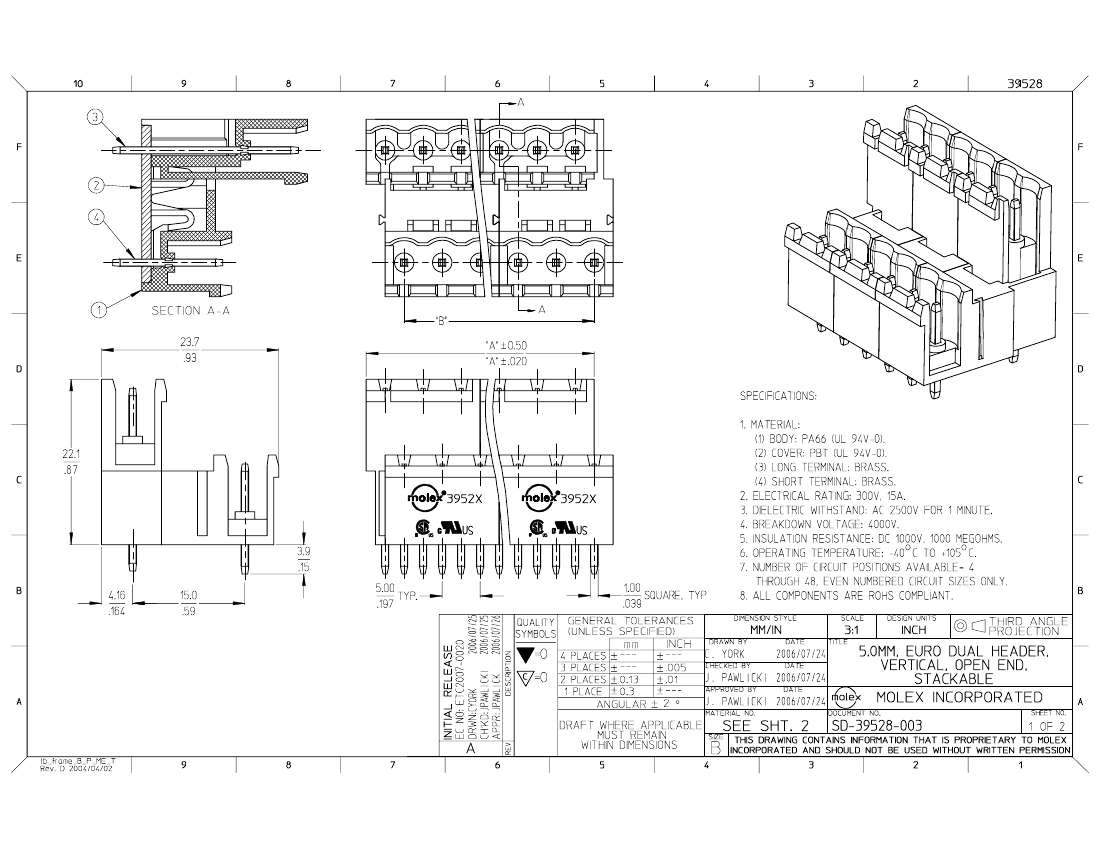

Sales Drawing
PS-39500-001
SD-39528-003
This document was generated on 04/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
