395320002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395320002

395320002: Description5.08mm; CategoryThe connector terminals; File Size245KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395320002 Overview

5.08mm

395320002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PA66
Fastening method	SOLDER
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

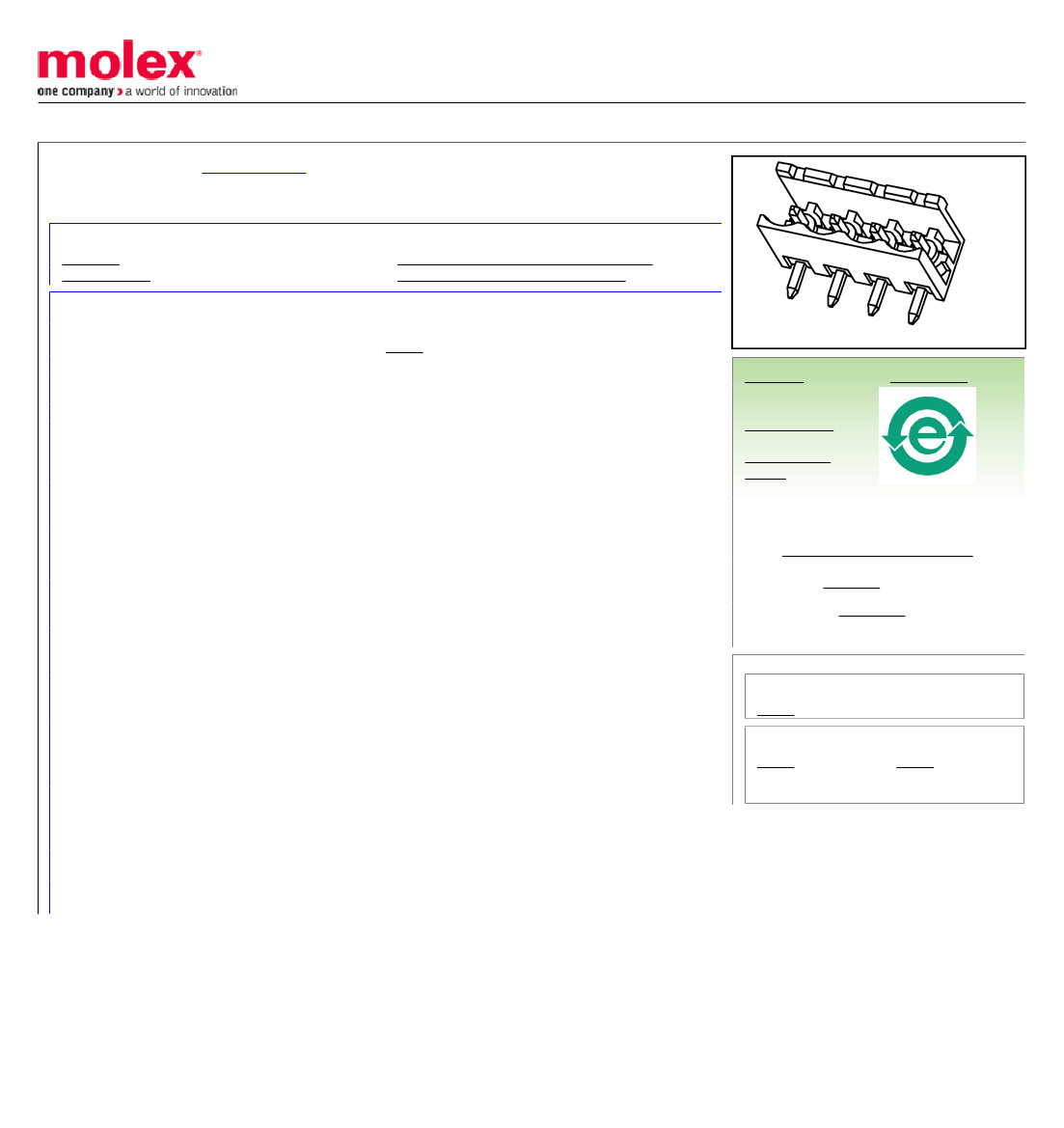

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395320002

Active

5.08mm (.200") Pitch Eurostyle™ Horizontal PCB Header, Open Ends, 2 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39532

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

image - Reference only

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Horizontal

0.200 In

5.08 mm

0.125 In

5.08 mm

0.200 In

5.08 mm

Yes

Open Ends

N/A

-40°C to +105°C

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39532Series

Mates With

39530 Horizontal Plug, 39533 Vertical

Plug, Most 5.08mm (.200") Pitch Industry

Standard Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

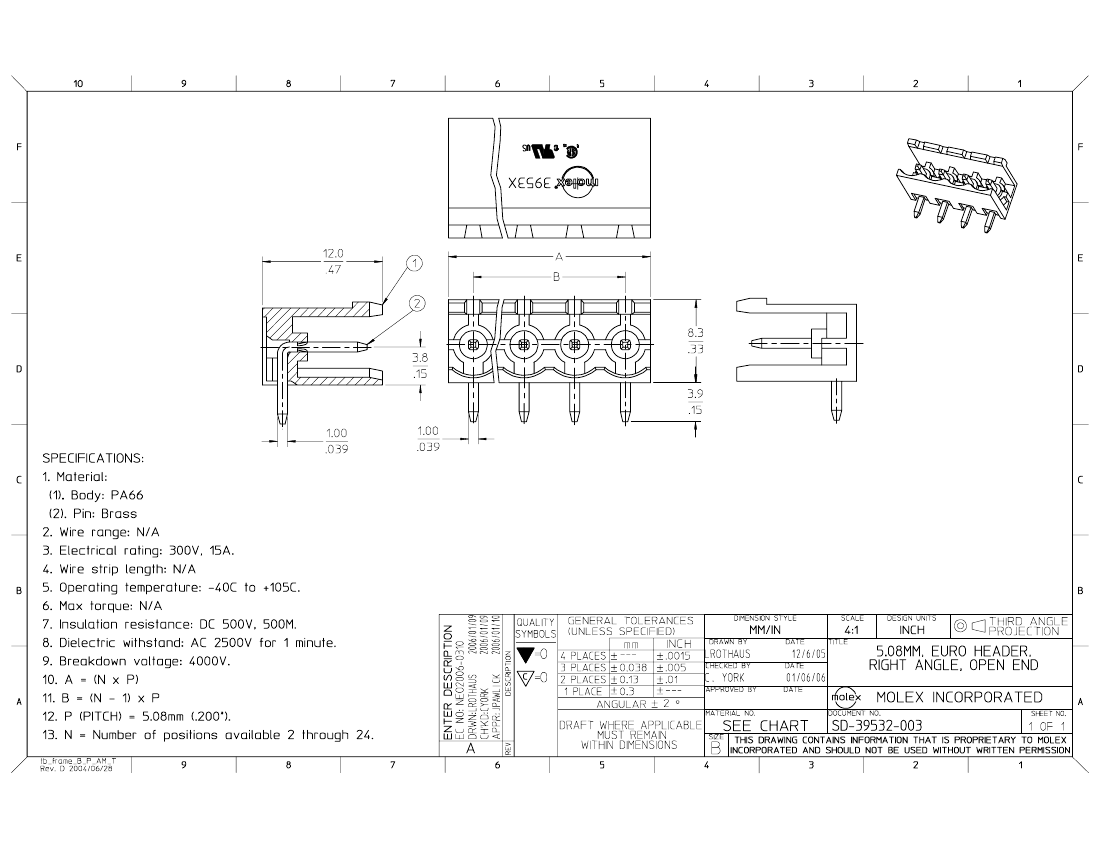

Sales Drawing

PS-39500-001

SD-39501-002, SD-39532-003

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
