This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399700308
Active
10.16mm (.400") Beau™ Eurostyle™ Fixed Mount PCB Terminal Block, High Power
40A, 8 Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39970
Wire-to-Board
One Piece
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
8
8
Horizontal
94V-0
None
Brass, Copper
Tin
Tin
1
Vertical
0.160 In
4.06 mm
None
No
0.400 In
10.16 mm
0.400 In
10.16 mm
150
3.8
150
3.8
N/A
Fully
No
No
130°C
Through Hole
10, 12, 14, 16, 18, 6, 8
0.75 - 6.0
Search Parts in this Series
39970Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
40A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
973508

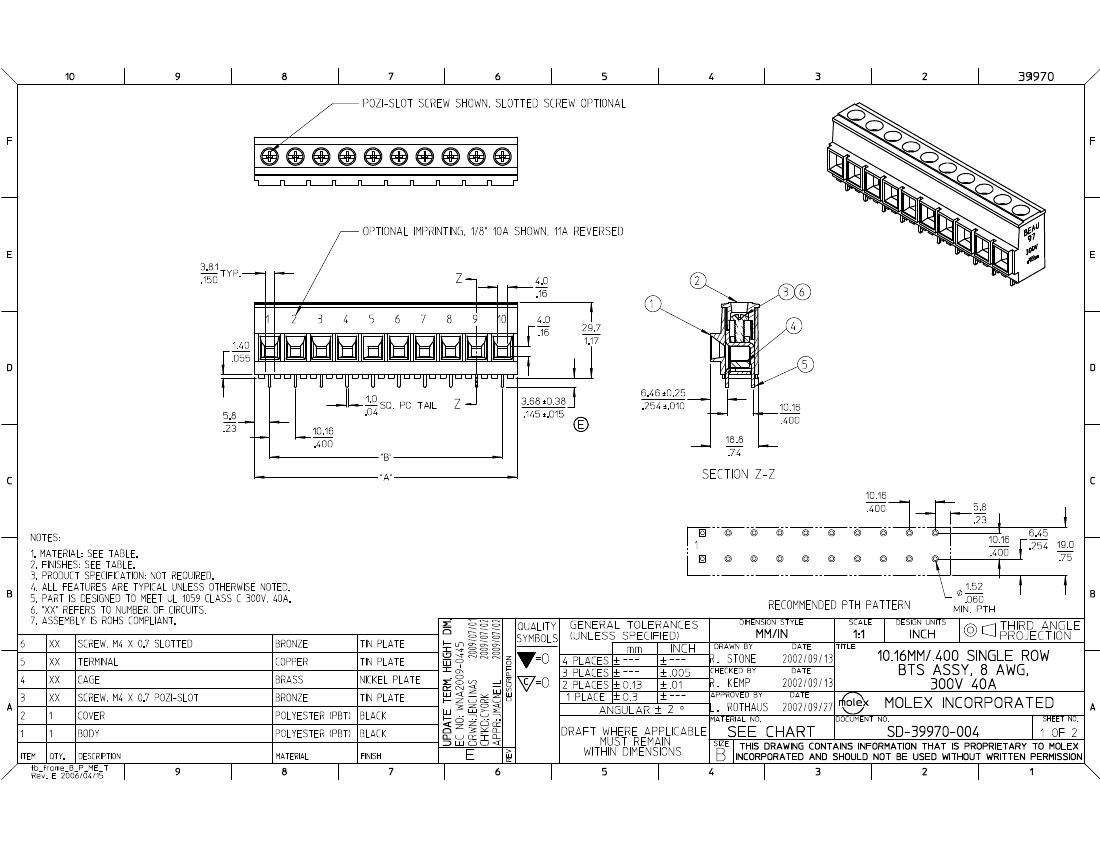

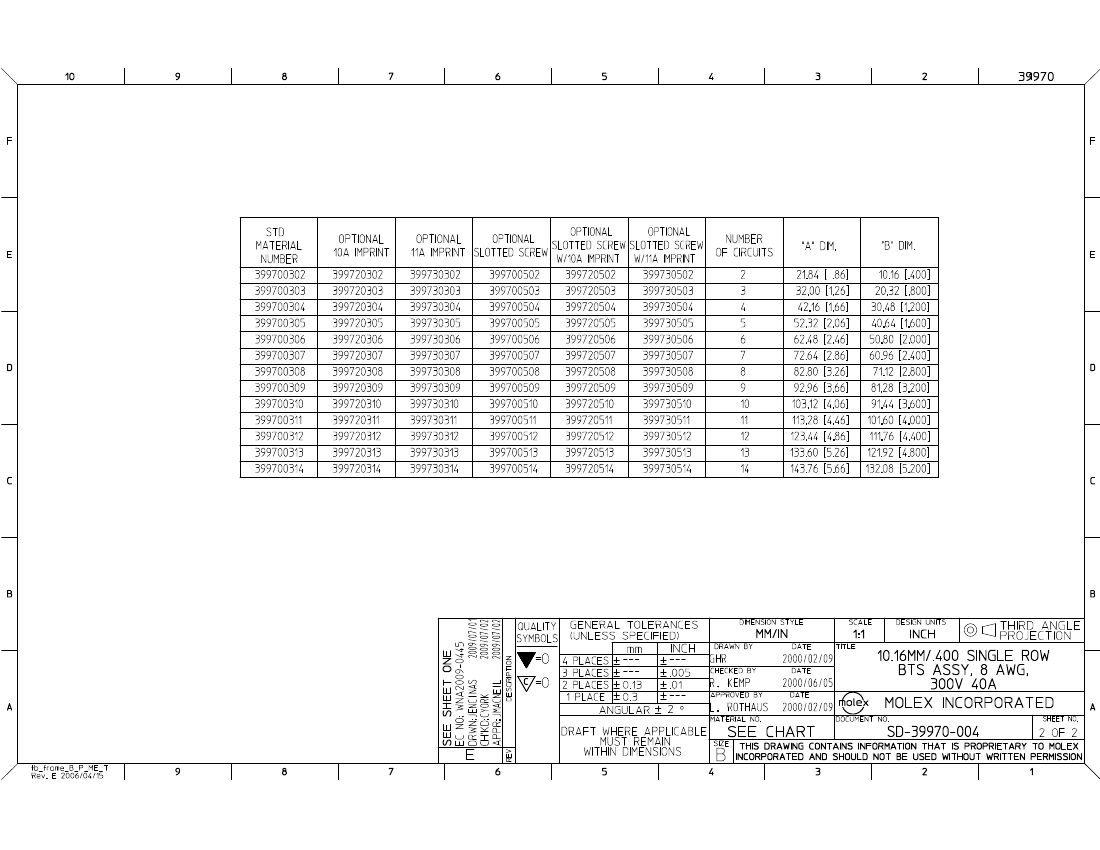

Reference - Drawing Numbers
Sales Drawing
SD-39970-004
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
