ECN#
3
REV.
001
2
REVISIONS
DESCRIPTION
REVISED PER ECR111009AZ01
DATE
4-23-10
1
INITIALS
SMU
D
NOTES:
MOUNTING: Mounts in a .562 .002 [ 16.56mm .05] panel hole on .750 [19.05mm]
1.
centers. Panel thickness .031 [.8mm] to .187 [4.75mm]. Panel hole should be deburred, but not
chamfered.
2.
ASSEMBLY: Insert lens through panel hole, slide lock washer onto lens barrel and twist on
retaining ring. PCB mounted LEDs slide into lens when the panel cover is closed or the PCB
card is inserted into the case.
3.
MATERIAL: Lens-Polycarbonate, UL 94-V2
Lock Washer- FH Steel, Nickel plate
Retaining ring - Thermoplastic, U.L. 94 V0 Rated
4.
U.S. & Foreign Pat. Issued & Pend.
D
.623
15.82mm
C
LOCK
WASHER
RETAINING
RING
C
.620
15.75mm
.550
13.97mm
.780
19.81mm
.700
17.78mm
B
B
.435
11.05mm
.480
12.19mm
ORDERING CODE :
.035±.003
0.89mm±0.08
.018
0.44mm
.340
8.64mm
HMC 461 XXX
MODEL
A
RTP
ATP
GTP
BTP
YTP
CTP
LENS COLOR
RED TRANSPARENT
AMBER TRANSPARENT
GREEN TRANSPARENT
BLUE TRANSPARENT
YELLOW TRANSPARENT
CLEAR TRANSPARENT
DISPLAY
PANEL
LOCK
WASHER
LED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES:
MATERIAL
ANGLES
1'
PAT. PEND.
VCC
FINISH
DECIMALS
.X
.020
.010
.XX
.XXX .005
SEE NOTES
FINISH
VISUAL COMMUNICATIONS COMPANY, INC.
190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA
Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com
A
BREAK ALL CORNERS AND SHARP
EDGES .030 MAX
TITLE:
SEE NOTES
LENS
RETAINING
RING
ASSEMBLY
APPROVAL
DATE
SMU 4-23-10
DZ 4-23-10

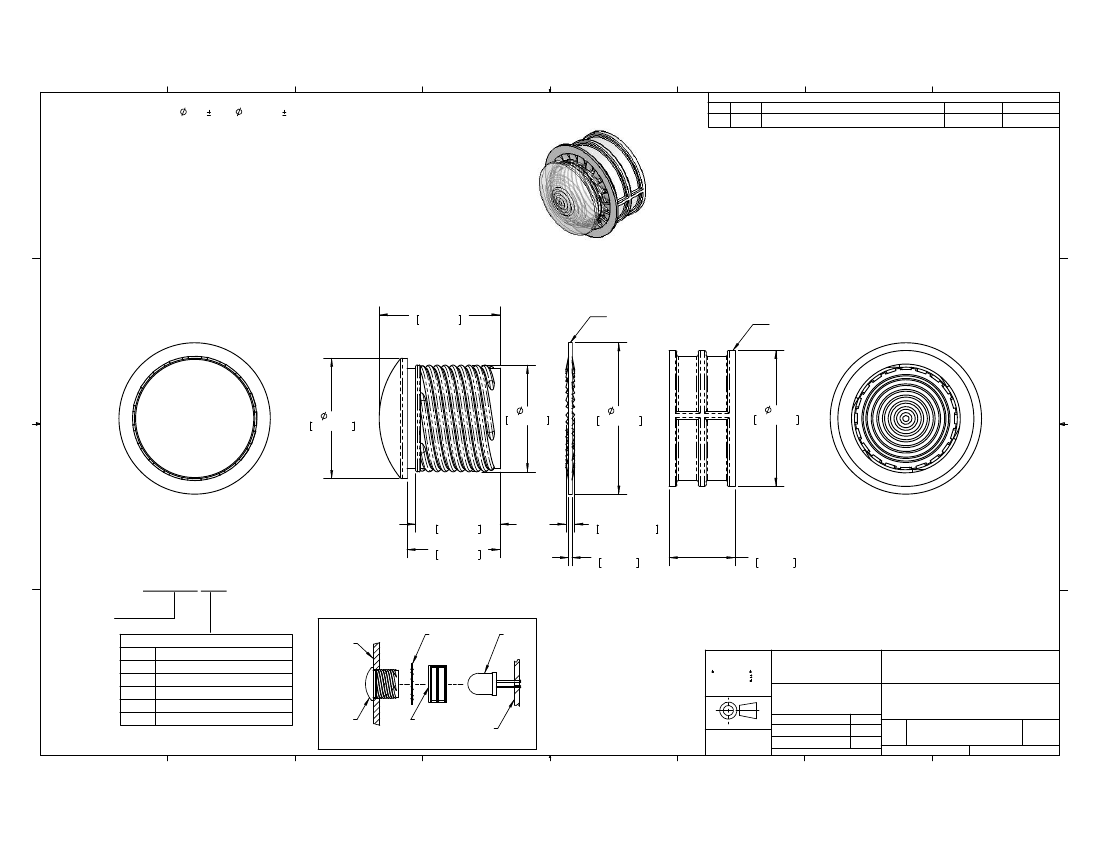

10MM ROUND STANDARD
THREADED FRESNEL LENS
WITH SEAL
REV
PCB
THIRD ANGLE PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
VISUAL COMMUNICATIONS COMPANY, INC IS
PROHIBITED.
DRAWN:
CHECKED:
SIZE
DWG. NO.
B
HMC 461 XXX
SCALE: 4:1
001
DO NOT SCALE DRAWING
SHEET 1 OF 1
