Part Number:
Status:
Description:
0354539802
Active

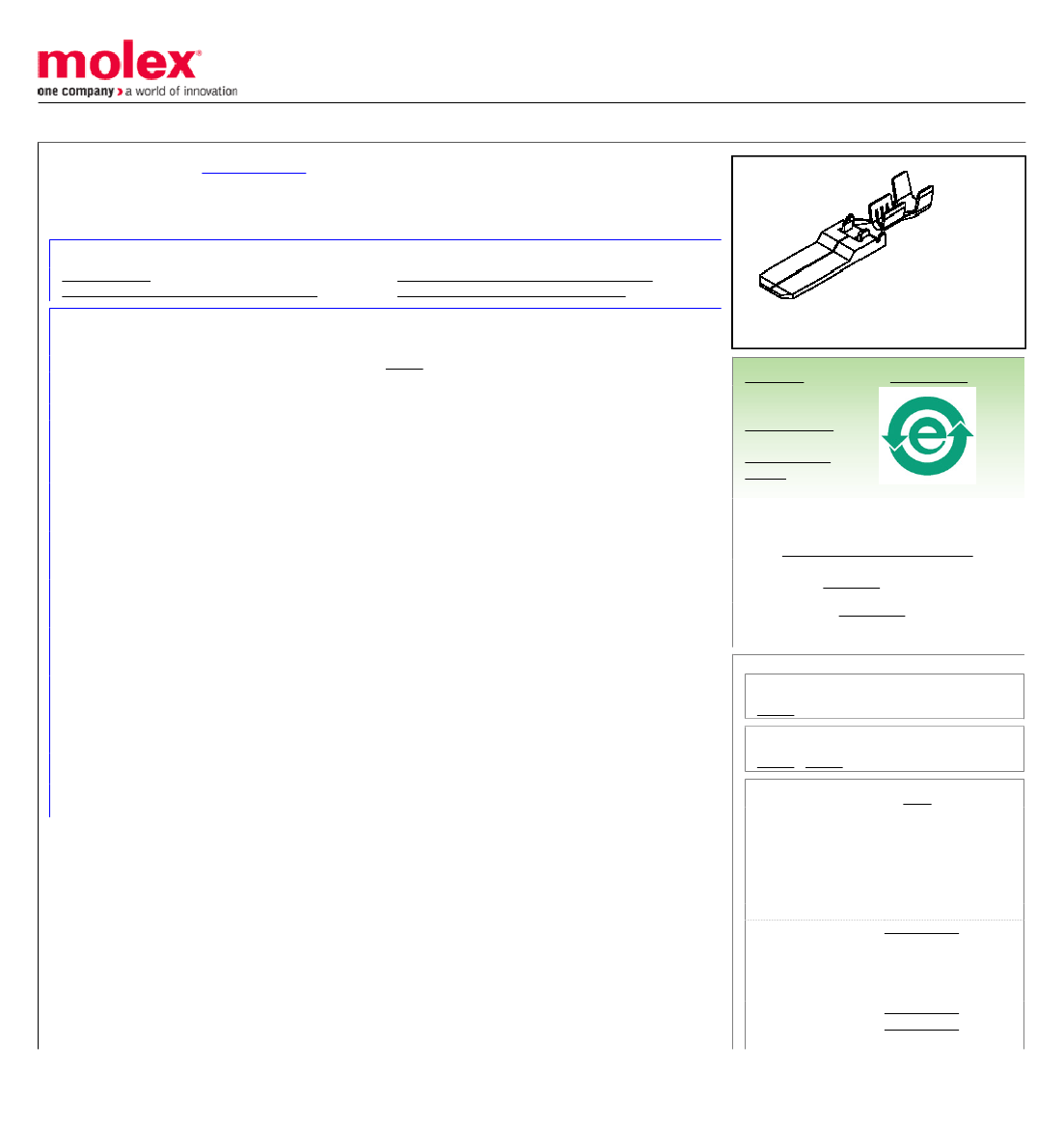

6.35mm (.250") Tab Heavy Tab Terminal, Type B, 16-18 AWG (1.31-0.80mm²), Pre-Tin
Plated
Documents:

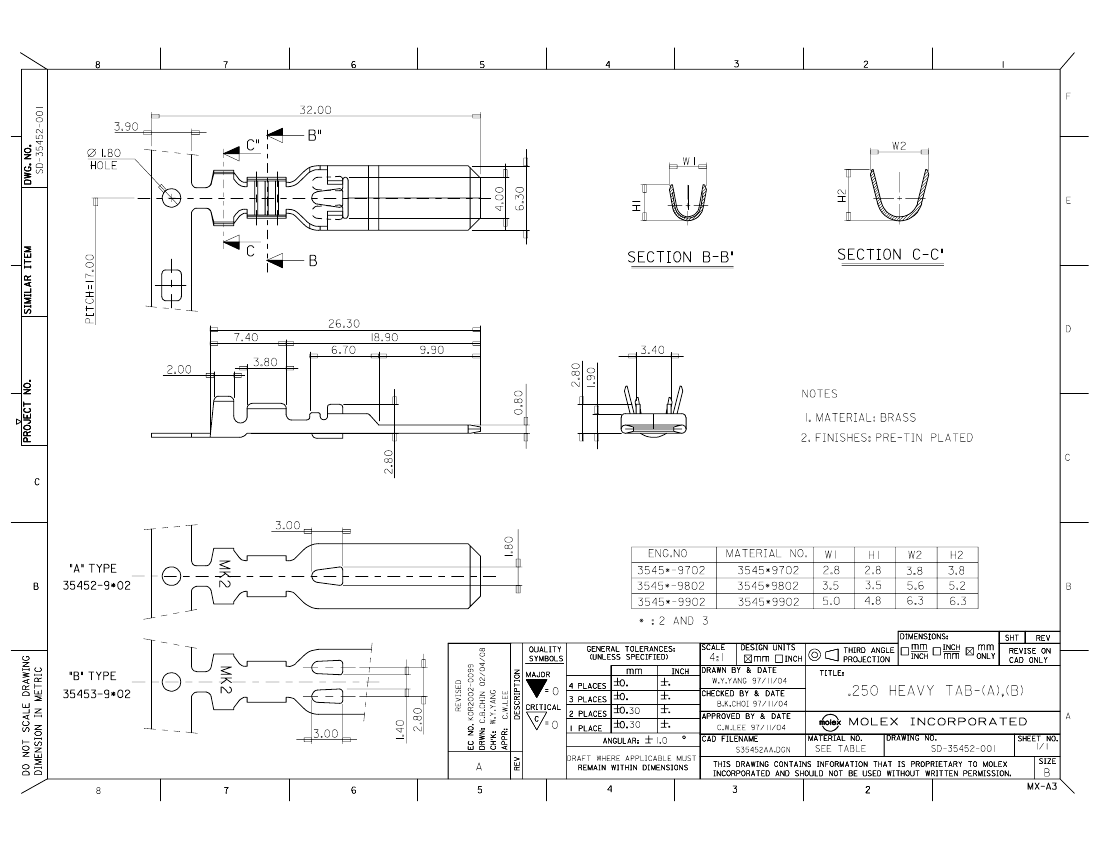

Drawing (PDF)
Product Specification PS-35546-001 (PDF)
Product Specification PS-35546-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Quick Disconnects
35453
Yes
N/A
Quick Disconnect
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
Open
Male
No
None
None
Brass
Straight
Reel
Yes
0.81mm (.032")
6.35mm (.250")
-40°C to +120°C
16, 18
0.80 - 1.31
Electrical
Voltage - Maximum
250V
Search Parts in this Series
35453Series
Use With
35546 , 35547
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35546-001, PS-35546-002
SD-35452-001
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0638133100
for 6.35mm
(.250") Heavy Tab
Terminals, 12-14
AWG
T2 Terminator Die 0638576000
FineAdjust™
0638676000
Applicator
