370804

Description
7.50mm
File Size210KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

370804 Overview

7.50mm

This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0393740804
Active
7.50mm (.295") Beau™ Eurostyle™ Pluggable PCB Terminal Block, 90° Wire Entry, 4
Circuits
Documents:

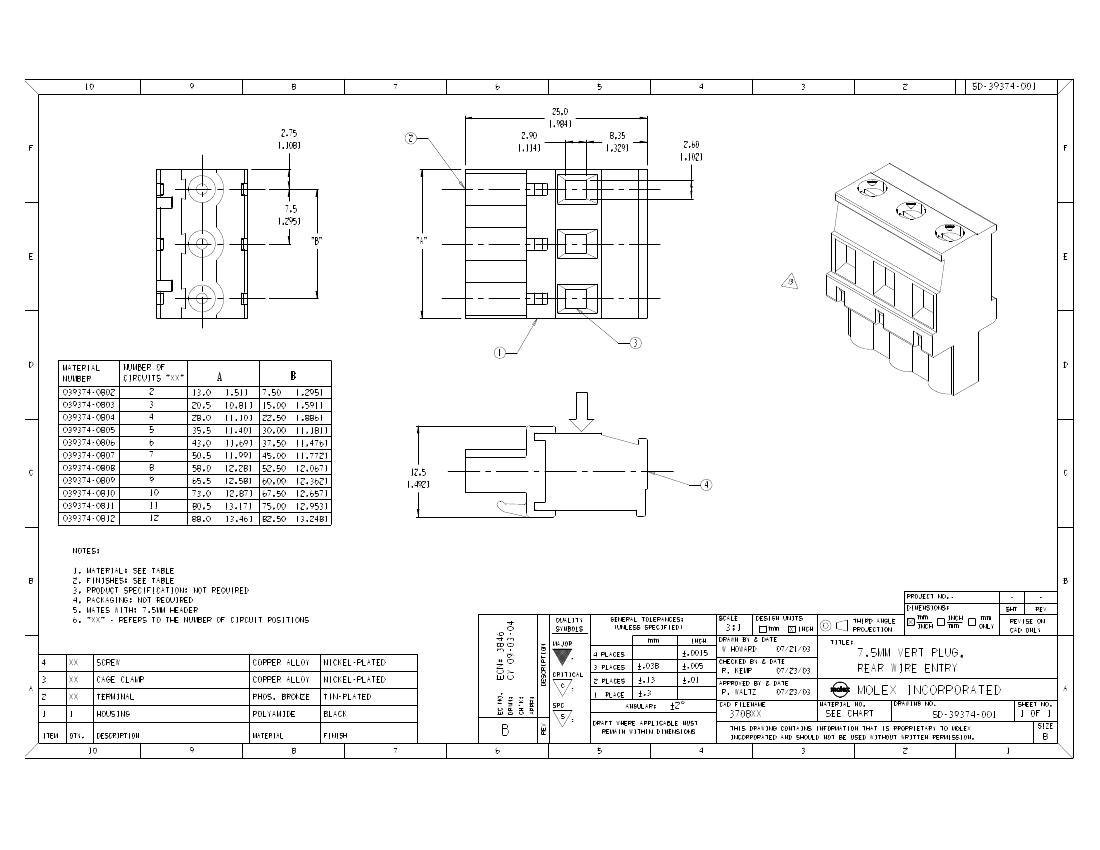

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series

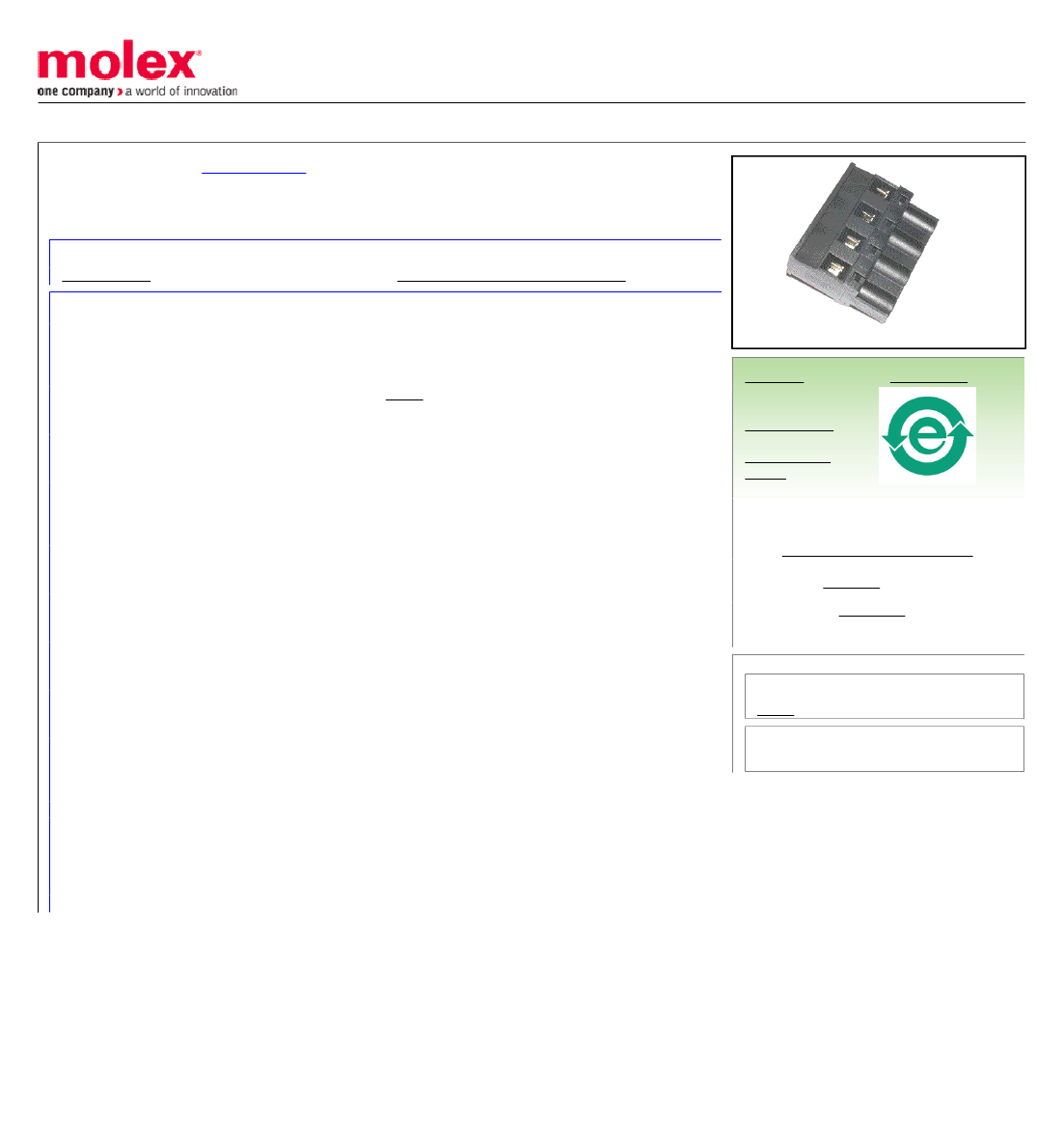

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39374
Wire-to-Board
Plug
USA-261
Eurostyle™Pluggable
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
4
90° Angle
94V-0
None
1
Vertical
N/A
No
0.295 In
7.50 mm
Yes
Yes
110°C
12, 14, 16, 18, 20, 22, 24, 26, 28, 30
0.05 - 2.50
Search Parts in this Series
39374Series
Mates With
39372 & 39373 Headers
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
370804
Reference - Drawing Numbers
Sales Drawing
SD-39374-001
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
