Part Number

Search

391000903

Description
20 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK
CategoryThe connector
File Size125KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

391000903 Overview

20 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK

391000903 Parametric

Parameter NameAttribute value
Rated current20 A
Rated voltage300 V
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
contact surfaceNOT SPECIFIED
Contact materialsNOT SPECIFIED
Manufacturer Series39100
Fastening methodSCREW
Installation typePANEL
Number of layers1
Rows2
Number of channels3
Terminal module typeSTRIP
Wire gauge12 AWG
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0391000903
Active
8.00mm (.315") Pitch Beau™ Eurostyle™ Two-Screw Terminal Strips, 3 Circuits, Low
Profile
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
25562
E82573
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39100
Wire-to-Wire
One Piece
USA-303
Eurostyle™Two Screw
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
3
Horizontal
94V-2
None
2
Vertical
Yes
Mounting Holes Between Circuit
0.315 In
8.00 mm
0.315 In
8.00 mm
No
No
100°C
12, 14, 16, 18, 20, 22
Search Parts in this Series
39100Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
20A
300V
Material Info

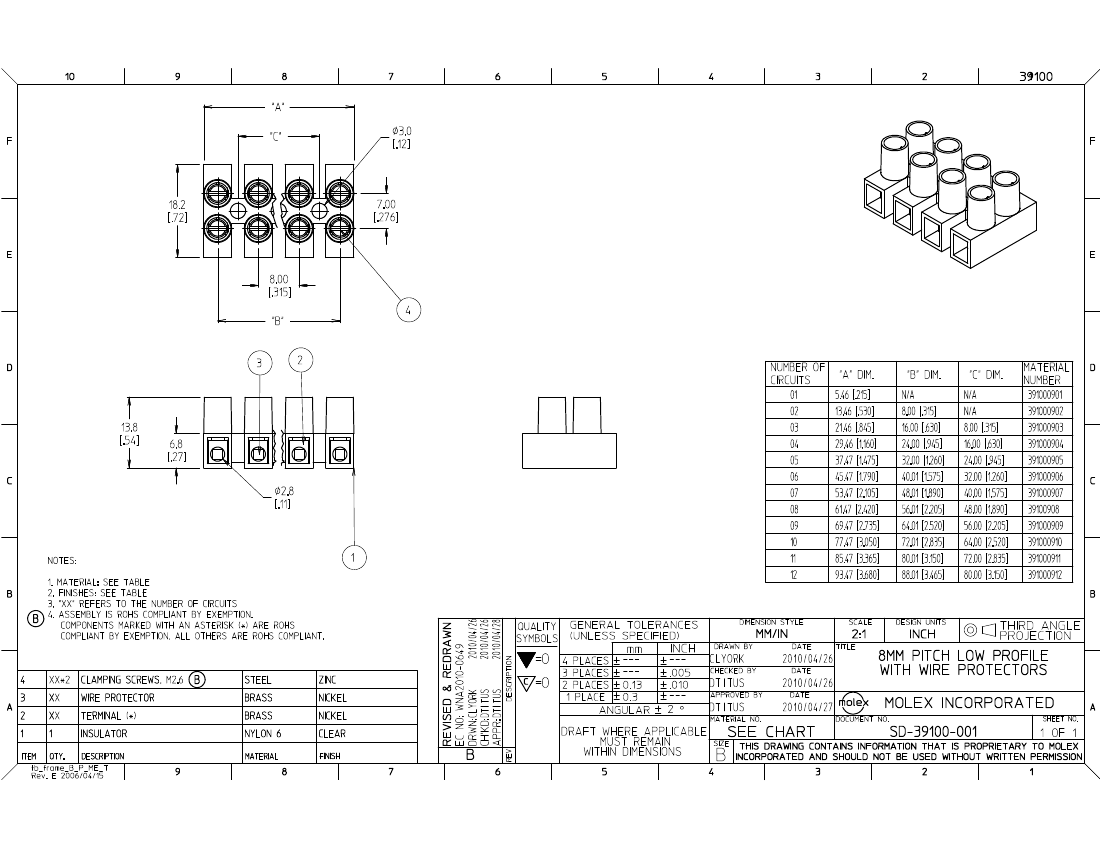

Reference - Drawing Numbers
Sales Drawing
SD-39100-001
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
