395333004 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 395333004

Preview

395333004: Description5.08mm; CategoryThe connector terminals; File Size130KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395333004 Overview

5.08mm

395333004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	4
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395333004

Active

5.08mm (.200") Pitch Eurostyle™ Vertical Plug, Front Wire Entry, 4 Circuits

Documents:

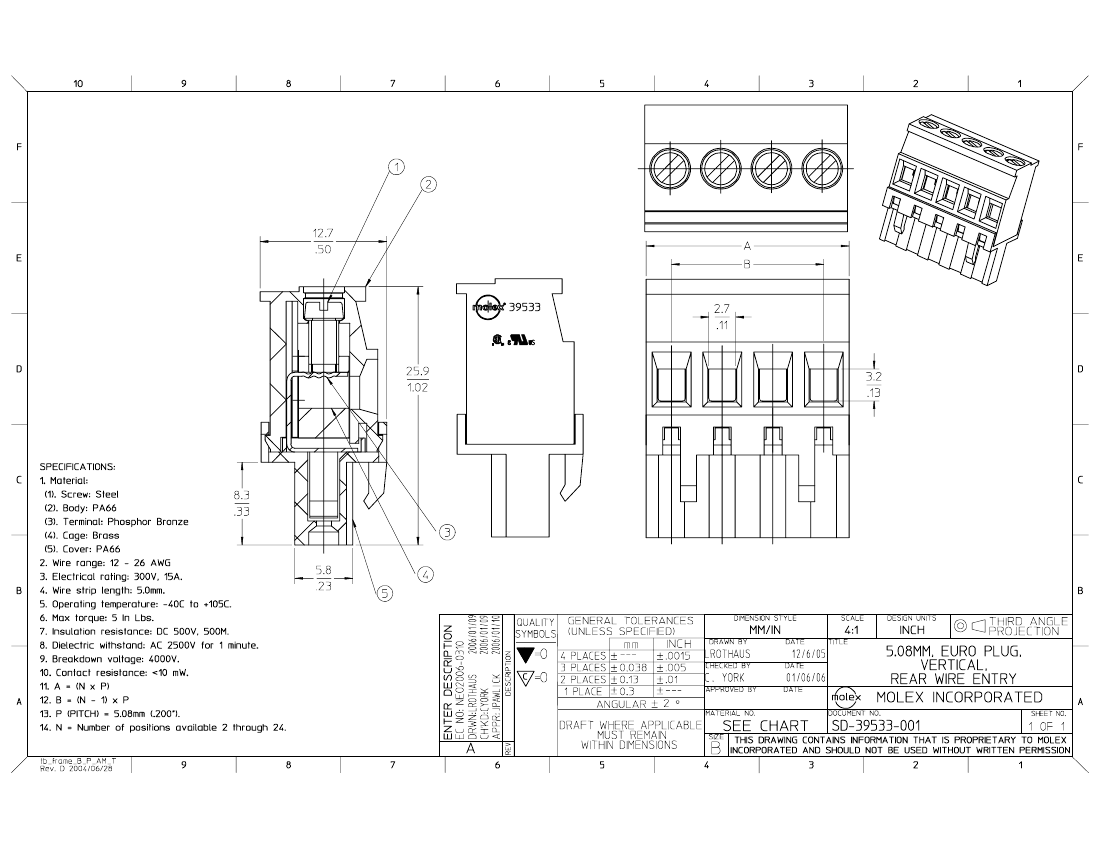

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39533

Wire-to-Board

Front Wire Entry

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

4

Horizontal

Yes

1

Vertical

0.200 In

5.08 mm

No

0.200 In

5.08 mm

Yes

No

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

Search Parts in this Series

39533Series

Mates With

39531 Vertical PCB Header, 39532

Horizontal PCB Header, Most 5.08mm

(.200") Pitch Industry Standard PCB

Headers, 39538 Dual Level Header, Open

Ends

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39533-001
