Part Number:
Status:
Description:
0395380006
Active
5.08mm (.200") Pitch Eurostyle™ Horizontal Dual Level PCB Header, Open Ends, 6
Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39538
Wire-to-Board
PCB Header
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
6
N/A
Yes
2
Horizontal
0.138 In
3.50 mm
0.120 In
3.00 mm
No
0.200 In
5.08 mm
Yes
Open Ends
Yes
N/A
-40°C to +105°C
N/A
Search Parts in this Series
39538Series
Mates With
39530 Horizontal Plug, 39533 Vertical
Plug, Most 5.08mm (.200") Pitch Industry
Standard Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info

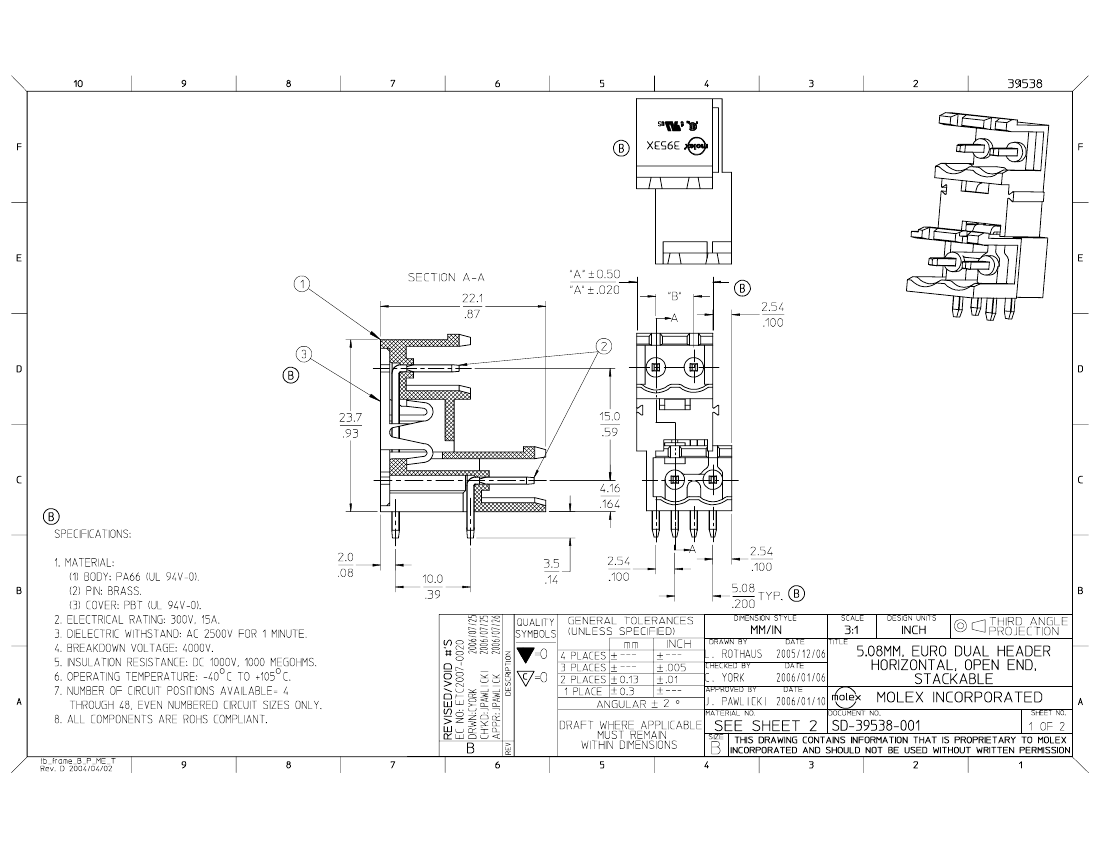

Reference - Drawing Numbers
Sales Drawing
SD-39538-001
This document was generated on 04/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Material Numbers
Black
Circuit
size
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
100% Tin
395380004
395380006
395380008
395380010
395380012
395380014
395380016
395380018
395380020
395380022
395380024
395380026
395380028
395380030
395380032
395380034
395380036
395380038
395380040
395380042
395380044
395380046
395380048
30 u" Gold
395380504
395380506
395380508
395380510
395380512
395380514
395380516
395380518
395380520
395380522
395380524
395380526
395380528
395380530
395380532
395380534
395380536
395380538
395380540
395380542
395380544
395380546
395380548
100% Tin
395385004
395385006
395385008
395385010
395385012
395385014
395385016
395385018
395385020
395385022
395385024
395385026
395385028
395385030
395385032
395385034
395385036
395385038
395385040
395385042
395385044
395385046
395385048
Green
30 u" Gold
395385504
395385506
395385508
395385510
395385512
395385514
395385516
395385518
395385520
395385522
395385524
395385526
395385528
395385530
395385532
395385534
395385536
395385538
395385540
395385542
395385544
395385546
395385548

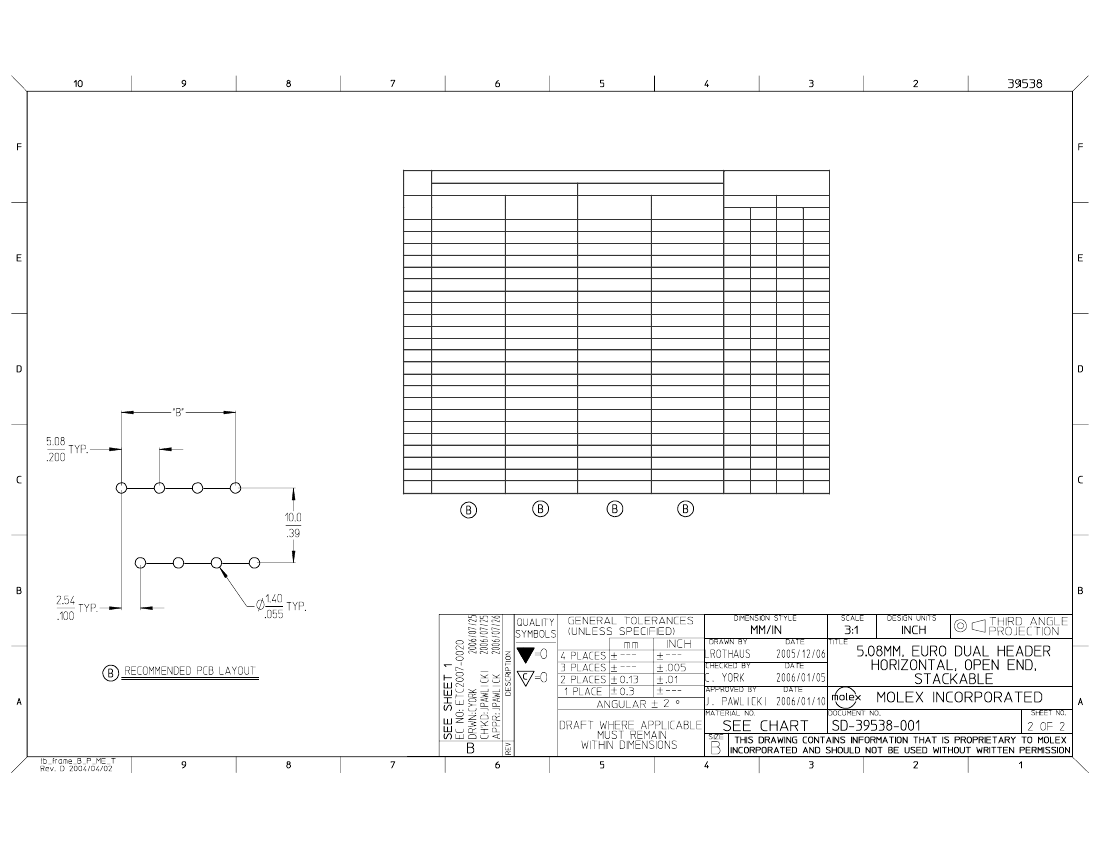

Dimensional Information
Dim. A
mm
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
inch
0.400
0.600
0.800
1.000
1.200
1.400
1.600
1.800
2.000
2.200
2.400
2.600
2.800
3.000
3.200
3.400
3.600
3.800
Dim B
mm
5.08
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
inch
0.200
0.400
0.600
0.800
1.000
1.200
1.400
1.600
1.800
2.000
2.200
2.400
2.600
2.800
3.000
3.200
3.400
3.600
3.800
101.60 4.000
106.68 4.200 101.60 4.000
111.76 4.400 106.68 4.200
116.84 4.600 111.76 4.400
121.92 4.800 116.84 4.600
