Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395433008
Active
5.00mm (.197") Pitch Eurostyle™ Vertical Fixed Mount PCB Terminal Block, 8 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39543
Wire-to-Board
One Piece
USA-355
ESE, Eurostyle™Fixed Mount
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
8
Horizontal
None
1
Vertical
0.118 In
3.00 mm
0.080 In
2.00 mm
No
0.197 In
5.00 mm
N/A
No
-40°C to +105°C
14, 16, 18, 20, 22
0.33 - 2.08
Search Parts in this Series
39543Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
135
260
Material Info

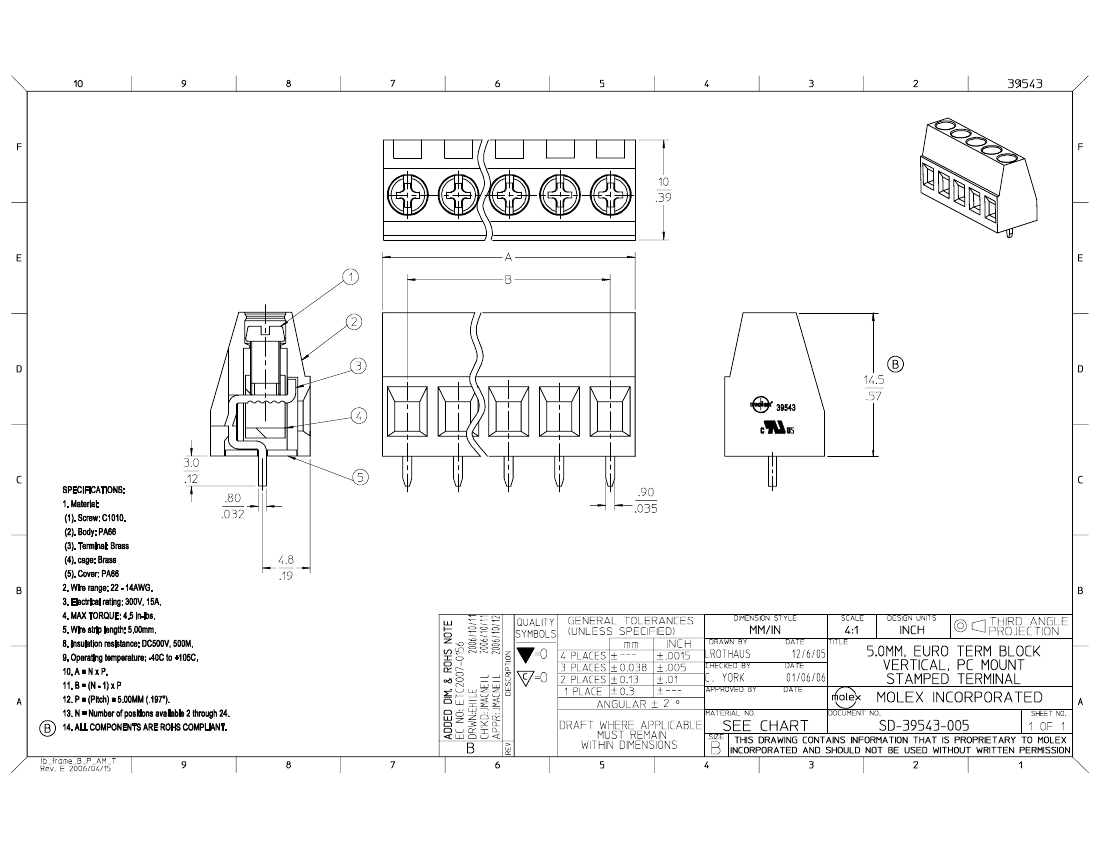

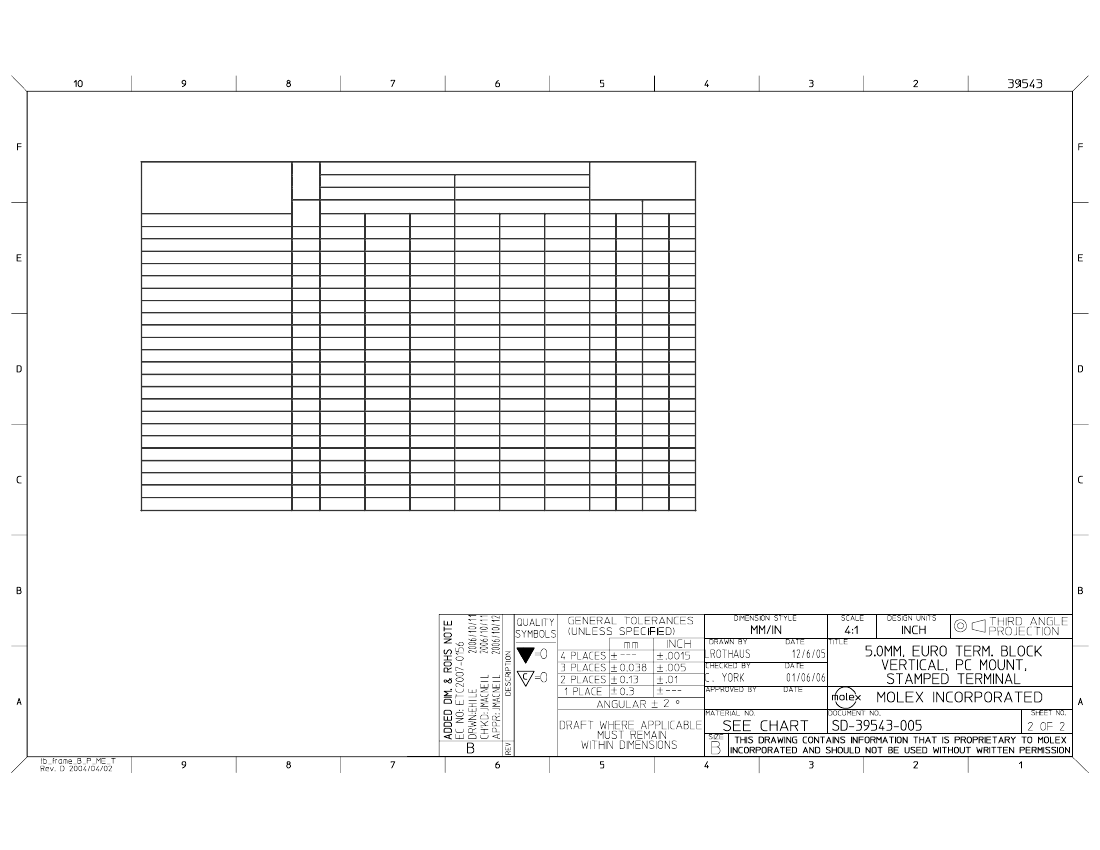

Reference - Drawing Numbers
Sales Drawing
SD-39501-002, SD-39543-005
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Material Numbers
Black
100% Tin
Circuit
size
Printing Options
None
395433002
395433003
395433004
395433005
395433006
395433007
395433008
395433009
395433010
395433011
395433012
395433013
395433014
395433015
395433016
395433017
395433018
395433019
395433020
395433021
395433022
395433023
395433024
10A
395435002
395435003
395435004
395435005
395435006
395435007
395435008
395435009
395435010
395435011
395435012
395435013
395435014
395435015
395435016
395435017
395435018
395435019
395435020
395435021
395435022
395435023
395435024
11A
395437002
395437003
395437004
395437005
395437006
395437007
395437008
395437009
395437010
395437011
395437012
395437013
395437014
395437015
395437016
395437017
395437018
395437019
395437020
395437021
395437022
395437023
395437024
None
395933002
395933003
395933004
395933005
395933006
395933007
395933008
395933009
395933010
395933011
395933012
395933013
395933014
395933015
395933016
395933017
395933018
395933019
395933020
395933021
395933022
395933023
395933024
Green
100% Tin
P rinting Options
10A
395935002
395935003
395935004
395935005
395935006
395935007
395935008
395935009
395935010
395935011
395935012
395935013
395935014
395935015
395935016
395935017
395935018
395935019
395935020
395935021
395935022
395935023
395935024
11A
395937002
395937003
395937004
395937005
395937006
395937007
395937008
395937009
395937010
395937011
395937012
395937013
395937014
395937015
395937016
395937017
395937018
395937019
395937020
395937021
395937022
395937023
395937024
Dim. A
mm
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
115.00
120.00
inch
0.394
0.591
0.787
0.984
1.181
1.378
1.575
1.772
1.969
2.165
2.362
2.559
2.756
2.953
3.150
3.346
3.543
3.740
3.937
4.134
4.331
4.528
4.724
Dim B
mm
5.00
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
115.00
inch
0.197
0.394
0.591
0.787
0.984
1.181
1.378
1.575
1.772
1.969
2.165
2.362
2.559
2.756
2.953
3.150
3.346
3.543
3.740
3.937
4.134
4.331
4.528
Dimensional Information
Description
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
5.0mm, Euro Block, P C Mount, Vertical
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
