41662A24A501

Description
24 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size169KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

41662A24A501 Overview

24 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

41662A24A501 Parametric

Parameter NameAttribute value
Contact materialsBRASS
Terminal spacing3.96 mm
Total number of contacts24
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer Series41662
Contact surface matchingGOLD
Contact coated terminalsGOLD
Connection TypeTWO PART BOARD CONNECTOR
Connector male and femaleMALE
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of load rows1
Terminal typeSOLDER
UL flammability code94V-0

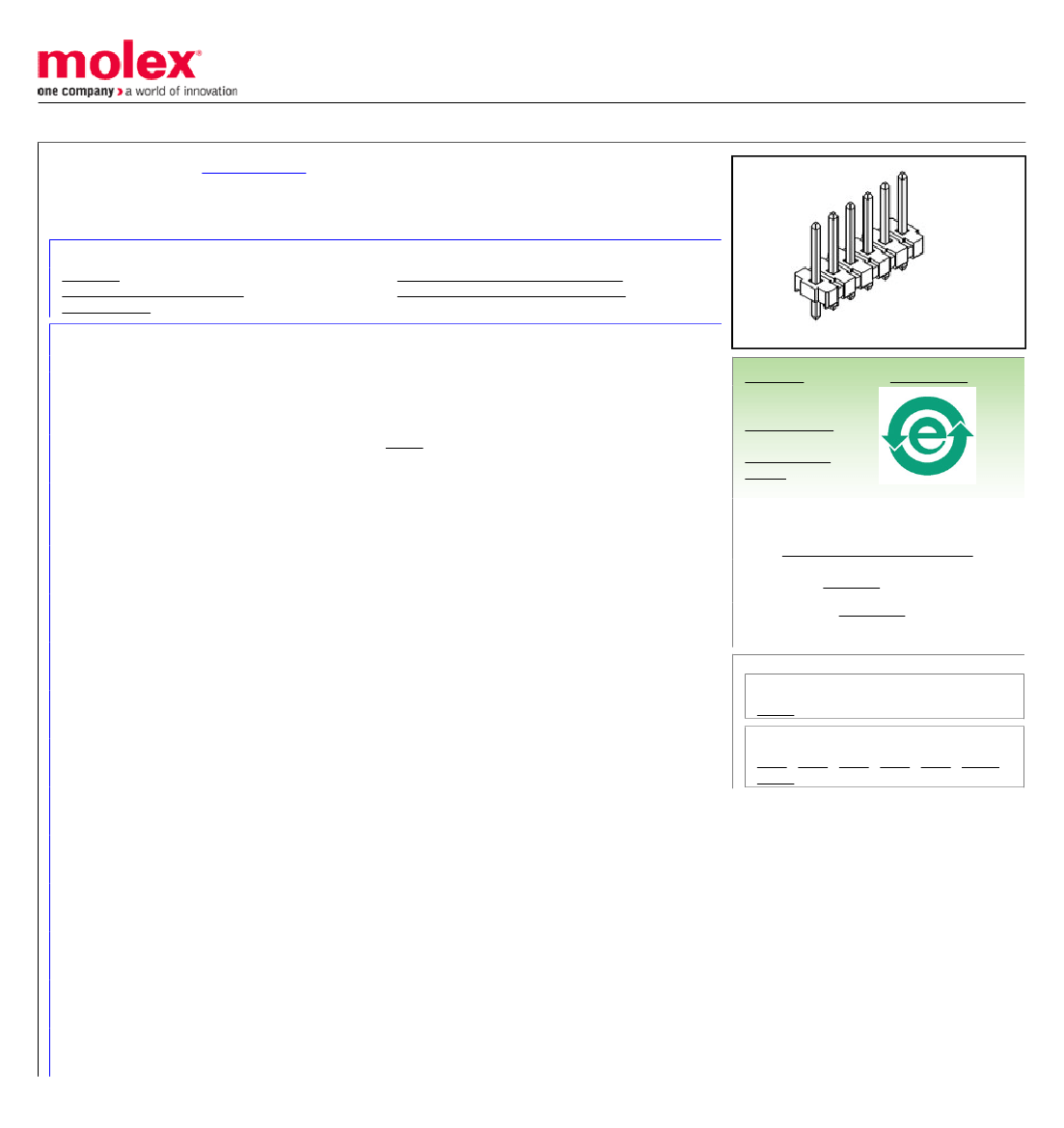

This document was generated on 03/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0026482242
Active
3.96mm (.156") Pitch KK® Header, Breakaway, Right Angle, 24 Circuits, Gold (Au)
Plating
Documents:
3D Model
Packaging Specification (PDF)

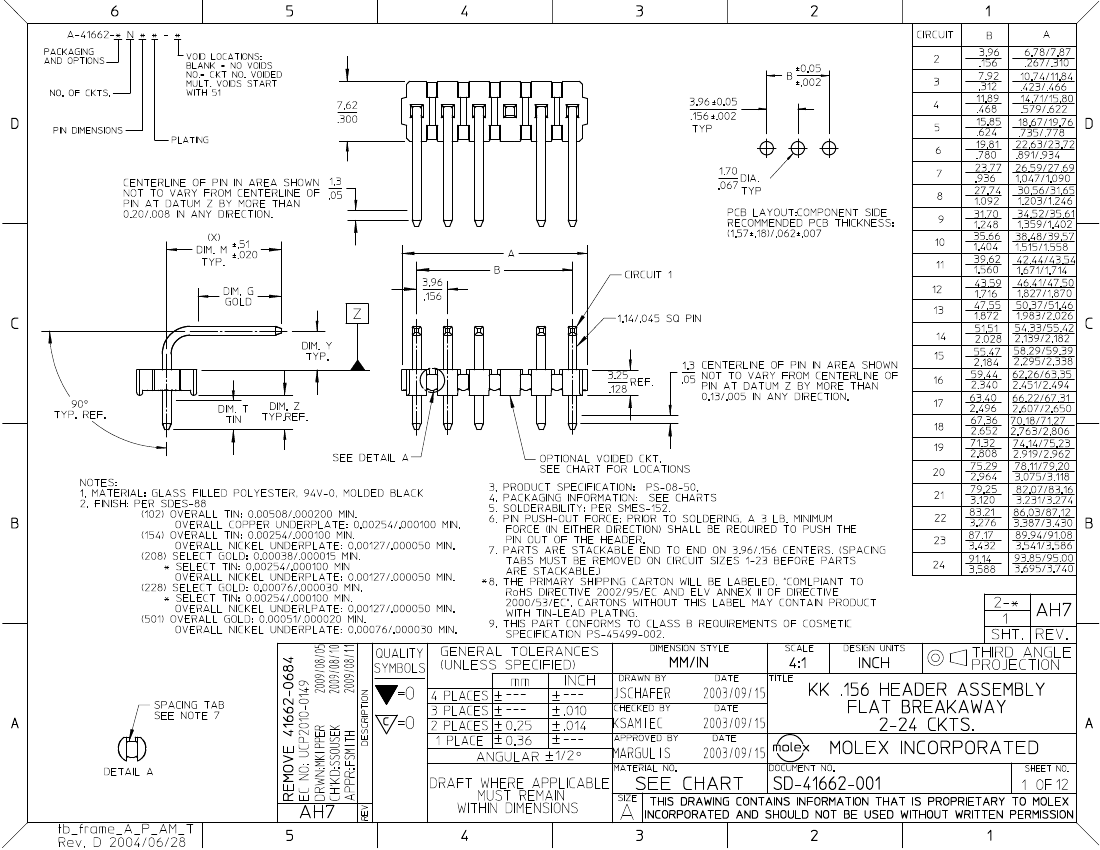

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
PCB Headers
41662
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Yes
24
24
Black
50
No
94V-0
No
No
None
None
Brass
Gold
Gold
Polyester
1
Right Angle
0.184 In
4.67 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
20
0.5
20
0.5
Yes
No
Partial
No
0°C to +75°C
Search Parts in this Series
41662Series
Mates With
2139 , 2145 , 6442 , 7674 , 7675 , 41695 ,
41815
