EMC Components
Common Mode Choke Coils for Signal Line
SMD
FEATURES
• A common mode filter for distortion-free noise removal from
transmitted signals. Optimized for transmission of high quality
signals.
• Best filter for countering the common mode noise resulting from
data signal processing by PCs, phone equipment, etc.
• SMD-type designed for surface mounting.
• Due to a maximum current tolerance of 5A, can also be used to
counter power line noise.
• The ZJYS81R5-2PL is a high inductance common mode filter
designed to use with a CAN-BUS.
• The “T” designation at the end of the product code indicates
tape mounting.
ZJYS Series ZJYS51, ZJYS81 Types
APPLICATIONS
Personal computers, telephones, LANs, ISDNs, digital PBXs, elec-
tronic games, CTVs, CD-ROM drives, 8mm video equipment, and
other electronic devices.

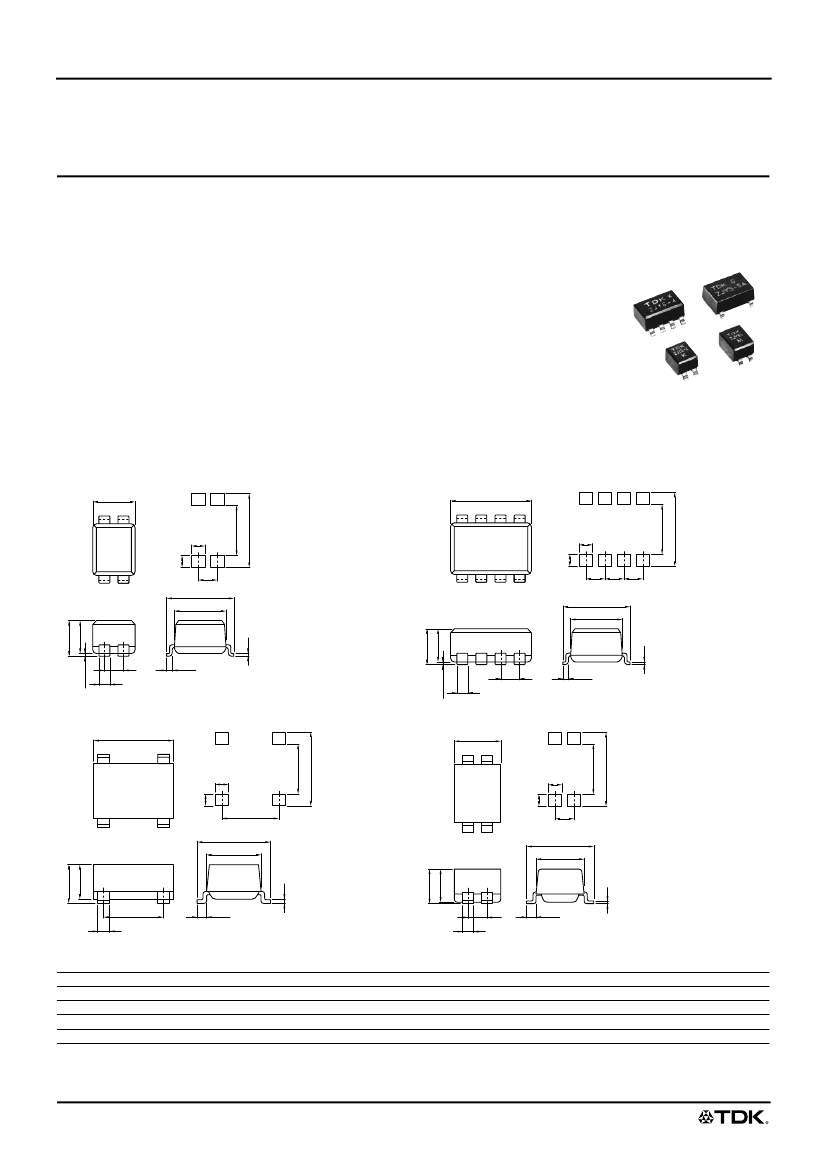

SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERNS
TRANSFER MOLD
ZJYS51R5-2P(T), -2PB(T), -2PL(T), 5103-2PL(T)
ZJYS51R5-4P(T), -M4PA(T)
A
A
4
3
6.7
9.9
1.8
1.6
8
7
6
5
6.7
9.9
1.8
1.6
2.54 2.54 2.54
2.54
1
2
G
B
1
2
3
4
G
B
D
C
H
D
C
0.1min.
0.1max.
F
E
(0.6)
Weight: 0.4g
F
E
(0.6)
Weight: 0.8g
ZJYS5105-2PL(T)
A
ZJYS81R5-2PL25(T)-G, -2PL51(T)-G
A
4
3
6.7
9.9
1.8
1.6
4
3
1.8
1.6
6.7
9.9
TDK
ZJYS-5A
1
2
TDK
ZJY51
7.62
G
B
2.54
1
2
G
B
D
C
H
D
C
F
E
(0.6)
Weight: 0.69g
E
F
(0.6)
Weight: 0.45g
H
H
Dimensions in mm
Part No.
ZJYS51R5-2P(T), -2PB(T), -2PL(T), 5103-2PL(T)
∗
ZJYS51R5-4P(T), -M4PA(T)
ZJYS5105-2PL(T)
ZJYS81R5-2PL25(T)-G, -2PL51(T)-G
∗
T means the taping product.
A max.
5.5
10.5
10.5
6
B max.
6.86
6.86
7.5
7.1
C max.
4.57
4.57
4.57
4.5
D max.
5.08
5.08
5.08
5
E
1.3
1.3
1.3
1.3
F
2.54±0.25
2.54±0.25
7.62±0.25
2.54±0.25
G max.
9±0.5
9±0.5
9±0.5
9±0.5
H
0.25
0.25
0.25
0.25
• All specifications are subject to change without notice.
(2/4)
002-01 / 20040706 / e971_zjys.fm
EMC Components
Common Mode Choke Coils for Signal Line
SMD
CIRCUIT DIAGRAMS
ZJYS51R5-2P(T),
-2PB(T), -2PL(T)
ZJYS5103-2PL(T)
ZJYS81R5-2PL25(T)-G
ZJYS81R5-2PL51(T)-G
1 2
1 2
3 4
ZJYS Series ZJYS51, ZJYS81 Types
ZJYS51R5-4P(T)
L
1
L
2
4 3
L
1
L
2
L
3
L
4
8 7 6 5
ZJYS51R5-M4PA(T)
L
1
L
2
L
3
L
4
8 7 6 5
ZJYS5105-2PL(T)
4
3
1
1 2 3 4
2
ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Edc(V)
Rated current (A)
Test voltage Edc(V) [Between terminals for 5s]
Insulation resistance (MΩ)
[Between terminals at DC.50V for 1min]
DC resistance (Ω) [Each line]
Operating temperature range (°C)
Impedance (Ω) [+5 to +35°C]
Part No.
Rated voltage Edc(V)
Rated current (A)
Test voltage Edc(V) [Between terminals for 5s]
Insulation resistance (MΩ)
[Between terminals at DC.50V for 1min]
DC resistance (Ω) [Each line]
Operating temperature range (°C)
Impedance (Ω) [+5 to +35°C]
∗1
∗2
ZJYS51R5-2P(T), -2PB(T)
∗1
,
-2PL(T)
∗2
, -4P(T)
50
2
125
100min.
0.06max.
–25 to +85
200min.[20 to 300MHz]
ZJYS5105-2PL(T)
50
5
125
100min.
0.01max.
–25 to +85
100min.[100 to 300MHz]
ZJYS5103-2PL(T)
50
3
125
100min.
0.03max.
–25 to +85
100min.[100 to 300MHz]
ZJYS51R5-M4PA(T)
50
0.5
125
100min.
0.2max.
–25 to +85
200min.[20 to 300MHz]
ZJYS81R5-2PL25(T)-G/-2PL51(T)-G
80
0.5
200
100min.
0.25/0.3max.
–40 to +125
600min./1000min.[10 to 100MHz]
The characteristics of low area reform type.
Separate winding type (for communications).
• The “T” designation at the end of the product code indicates tape mounting.
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE CHARACTERISTICS (for 1 element)
ZJYS51R5-2P, -4P
ZJYS51R5-2PB
10000
10000
Common mode
ZJYS51R5-2PL
10000
Impedance (
Ω
)
Impedance (
Ω
)
Impedance (
Ω
)
1000
Common mode
1000
1000
Common mode
100
Differential mode
10
100
Differential mode
10
100
Differential mode
10
1
1
3
10
30
100
Frequency (MHz)
300
1000
1
1
3
10
30
100
Frequency (MHz)
300
1000
1
1
3
10
30
100
Frequency (MHz)
300
1000
• All specifications are subject to change without notice.
(3/4)
002-01 / 20040706 / e971_zjys.fm
EMC Components
Common Mode Choke Coils for Signal Line
SMD
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE CHARACTERISTICS (for 1 element)
ZJYS5103-2PL
ZJYS5105-2PL
10000
10000
ZJYS Series ZJYS51, ZJYS81 Types
ZJYS51R5-M4PA
10000
Impedance (
Ω
)
Impedance (
Ω
)
Common mode
100
Differential mode
10
Common mode
100
Differential mode
10
Impedance (
Ω
)
1000
1000
1000
Common mode
100
10
Differential
mode
3
10
30
100
Frequency (MHz)
300
1000
1
1
3
10
30
100
Frequency (MHz)
300
1000
1
1
3
10
30
100
Frequency (MHz)
300
1000
1
1
ZJYS81R5-2PL25-G
10000
ZJYS81R5-2PL51-G
10000
Impedance (
Ω
)
100
Differential mode
Impedance (
Ω
)
1000 Common mode
Common mode
1000
Differential mode
100
10
10
1
1
3
10
30
100
Frequency (MHz)
300
1000
1
1
3
10
30
100
Frequency (MHz)
300
1000
MEASURING CIRCUIT
Vector
impedance
meter
Vector impedance meter (YHP 4191A equivalent)
Measuring at each Common mode choke coil
PACKAGING STYLE AND QUANTITIES
Part No.
ZJYS51R5-2P(T)
ZJYS51R5-2PB(T)
ZJYS51R5-2PL(T)
ZJYS5103-2PL(T)
ZJYS81R5-2PL25(T)-G
ZJYS81R5-2PL51(T)-G
ZJYS51R5-4P(T)
ZJYS51R5-M4PA(T)
ZJYS5105-2PL(T)
Taping
(/reel)
1500 pieces
1500 pieces
1500 pieces
1500 pieces
1500 pieces
1500 pieces
1000 pieces
1000 pieces
1000 pieces
Bulk
200 pieces
200 pieces
200 pieces
200 pieces
200 pieces
200 pieces
100 pieces
100 pieces
100 pieces
• All specifications are subject to change without notice.
(4/4)
002-01 / 20040706 / e971_zjys.fm
EMC Components
Common Mode Choke Coils for Signal Line
SMD

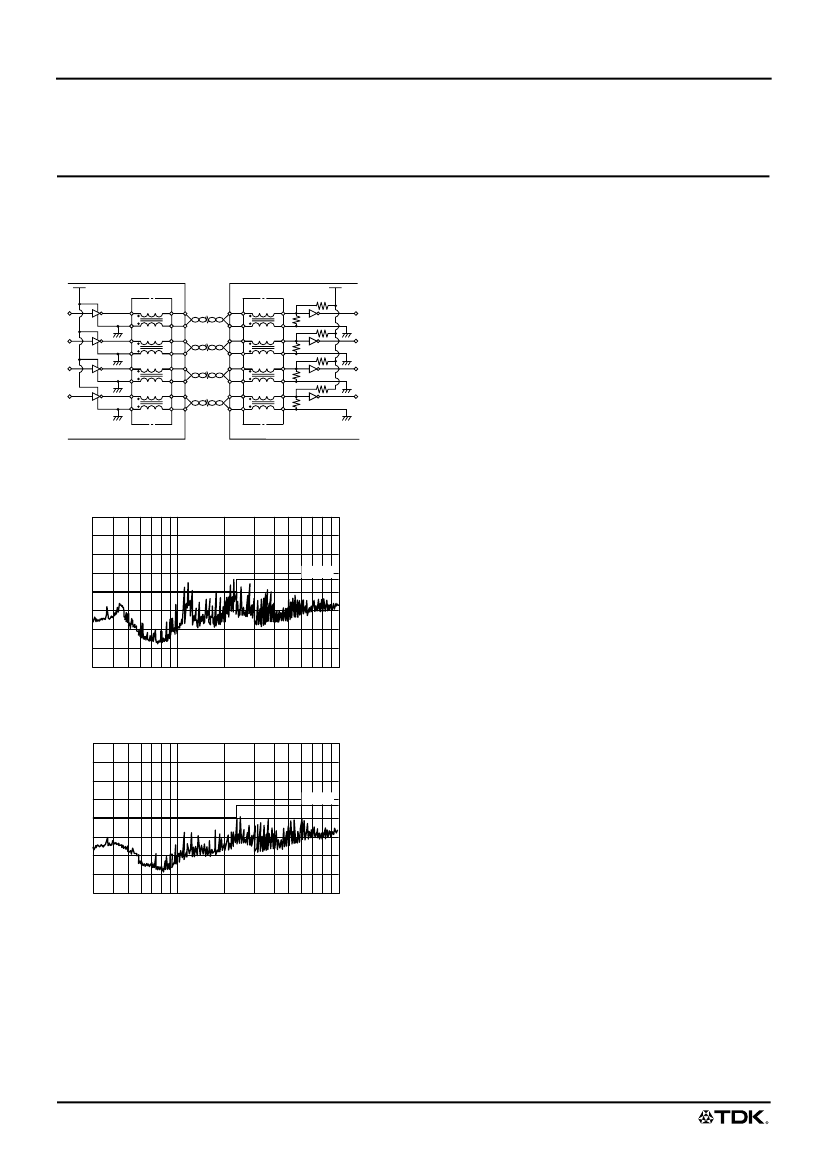

TYPICAL APPLICATION
An application example showing how radiation noise is prevented
when transmitter and receiver are connected via twisted pair
cabling.
Transmitter
Receiver
ZJYS Series ZJYS51, ZJYS81 Types
TYPICAL APPLICATION EFFECTS
(a) Without EMC filter
80
Radiation field intensity (dBµV/m)
70
60
50
40
30
20
10
0
30
100
300
Frequency (MHz)
1000
VCCI-2
(b) With EMC filter
(b)
ZJYS51R5-2P(T), 4P(T)
80
Radiation field intensity (dBµV/m)
70
60
50
40
30
20
10
0
30
100
300
Frequency (MHz)
1000
VCCI-2
• All specifications are subject to change without notice.
