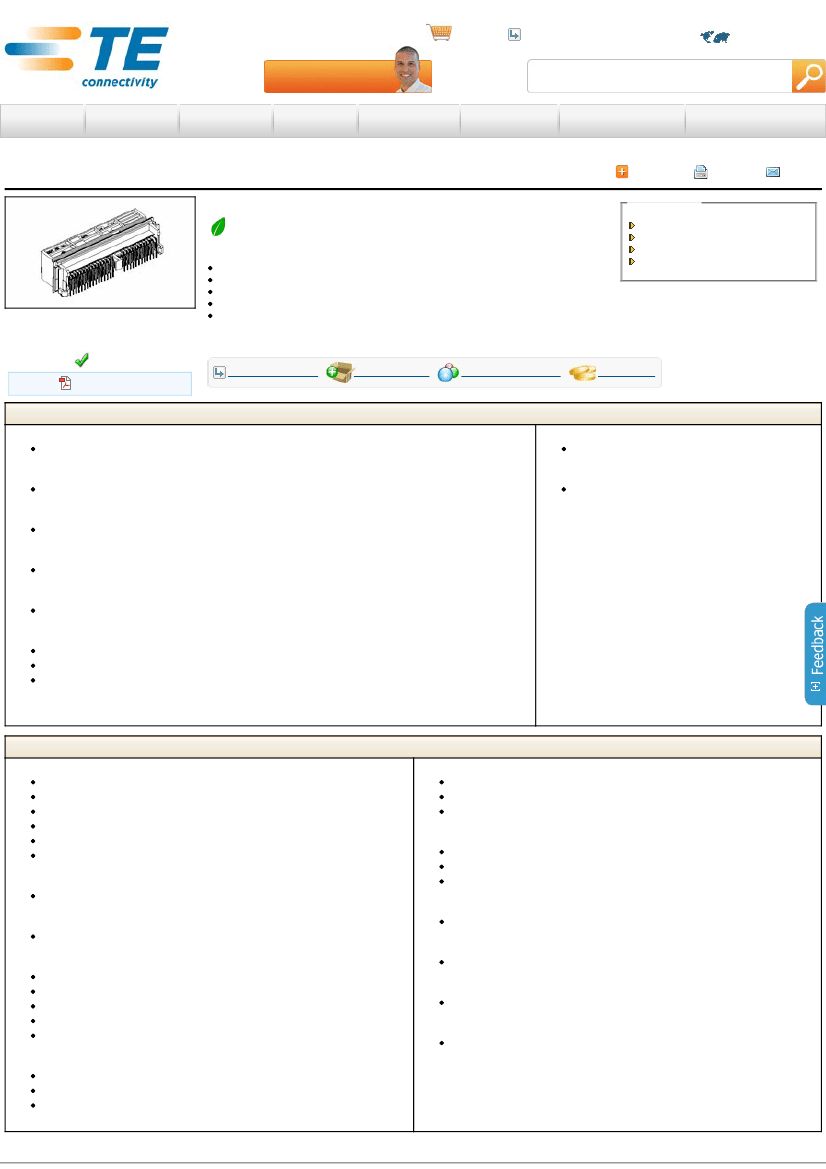

114189399 Product Details
MicroPower & Power Quadlok System
Always EU RoHS/ELV Compliant
(
Statement of Compliance
)
Product Highlights:
Applies To Printed Circuit Board
Connector
Connector Assembly
Connector Style = Header
56 Positions
View all Features
Share
Print
Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
114189399
TE Internal Number: 114189399
Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
View 3D PDF
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version A)
3D Model (IGES, Version A)
3D Model (STEP, Version A)
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Type = Connector Assembly
Sealed = No
Mounting Holes = Without
Mount Angle = Right Angle
Keyed = Yes
Termination Features:
Termination Method to PC Board = Through Hole Solder
Body Features:
Material = PBTGF
Contact Features:
Contact Type = Tab
Tab Contacts = With
2.5mm Pin Diameter Contacts = Without
Contact Finish = .8 Gold over Nickel
Contact Base Material = Phosphor Bronze
Housing Features:
Connector Style = Header
Centerline, Matrix (mm [in]) = 2.54 x 6.9 [.100 x .272]
Header Color = Orange Brown
Configuration Features:
Number of Positions = 56
Fiber Optic Contacts = Without
Staggered Centerline = Without
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Identification Marking:
Key ID = See Customer Drawing
Conditions for Usage:
Applies To = Printed Circuit Board
Packaging Features:
Packaging Method = Tube
Other:
Brand = AMP
