1-2110697-1

Description
IMP100S,H,V3P14C,RG,LEW39,4.5
CategoryThe connector    The connector
File Size142KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1-2110697-1 Overview

IMP100S,H,V3P14C,RG,LEW39,4.5

1-2110697-1 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Manufacturer's serial number2110697
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Two­Piece, High­Speed Connectors > Product Feature Selector > Product Details

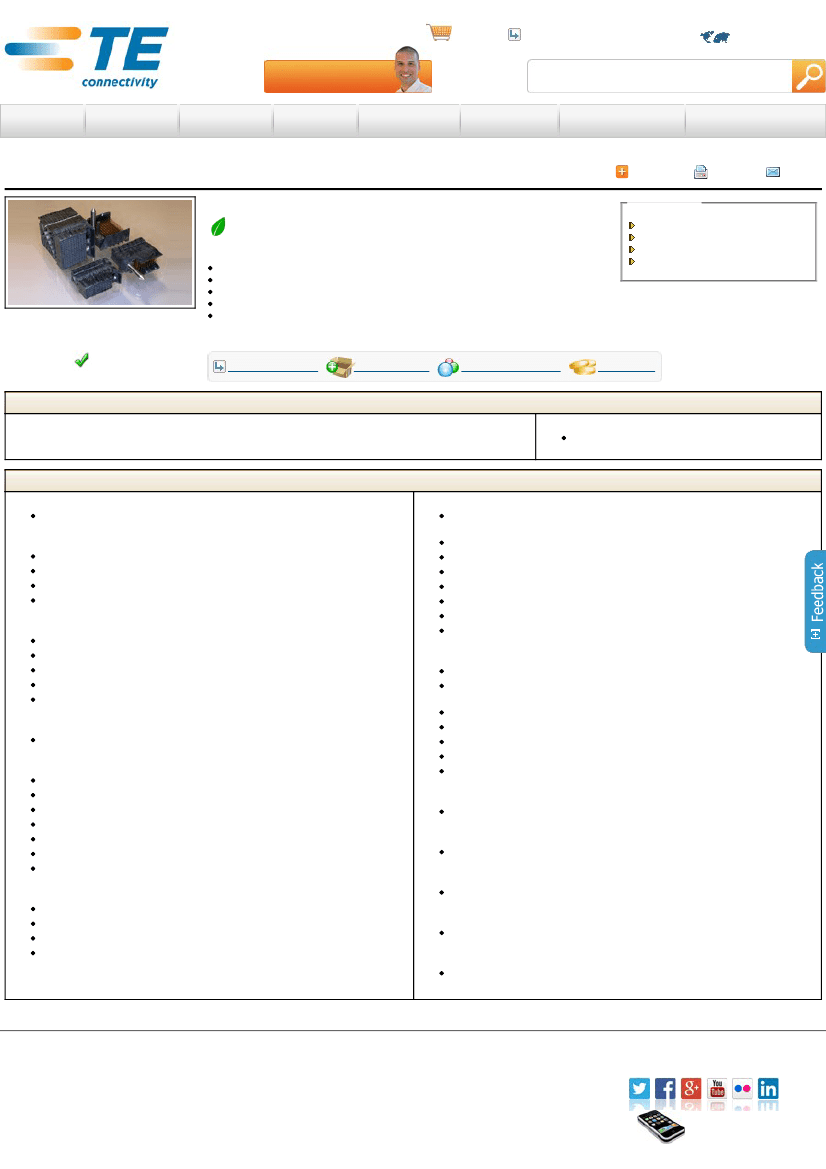

1­2110697­1 Product Details
Impact High Density Backplane Connectors

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Connector Style = Header
84/Signal, 42/Ground
126 Positions
Header Type = Fully Shrouded
Board­to­Board Configuration = Right Angle, Vertical
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
1­2110697­1

TE Internal Number: 1­2110697­1
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
PCB Mount Retention Type = Action/Compliant Tail, Locating Post(s)
Electrical Characteristics:
Impedance (Ω) = 100
Operating Voltage Reference = AC/DC
Operating Voltage (VAC) = 120
Operating Voltage (VDC) = 120
Dimensions:
Tail Length (mm [in]) = 1.2 [0.047]
Length (X­Axis) (mm [in]) = 34.50 [1.358]
Width (Z­Axis) (mm [in]) = 16.70 [0.657]
Profile Height (Y­Axis) (mm [in]) = 11.95 [0.470]
PCB Hole Diameter (mm [in]) = 0.39 [0.015]
Body Features:
Header Type = Fully Shrouded
Contact Features:
Contact Type = Pin
Contact Length (mm [in]) = 4.50 [0.177]
Contact Plating, Termination Area, Material = Matte Tin
Contact Plating, Termination Area, Thickness (µm [μin]) = 1.27 [50]
Contact Base Material = Copper­Nickel­Silicon
Underplate Material = Nickel
Underplate Material Thickness (µm [μin]) = 1.27 [50.000]
Housing Features:
Connector Style = Header
End Wall Location = Left
Housing Color = Black
Housing Material = Liquid Crystal Polymer (LCP)
Configuration Features:
Connector Contact Configuration (No. of Pos./Type) = 84/Signal,
42/Ground
Number of Positions = 126
Number of Differential Pairs Per Column = 3
Number of Columns = 14
Number of Rows = 9
Shrouded = Yes
Guide Location = Right
Tail Orientation = In­line
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not reviewed for lead free solder
process
RoHS/ELV Compliance History = Always was RoHS compliant
UL Rating = Recognized
UL File Number = E28476
UL Flammability Rating = UL 94V­0
CSA Certified = Yes
Environmental:
Operating Temperature (°C [°F]) = ­55 – +85 [­67 – +185]
Conditions for Usage:
Board­to­Board Configuration = Right Angle, Vertical
Operation/Application:
Industry Application = Networking (Communications)
Packaging Features:
Packaging Method = Tube
Other:
Brand = TE Connectivity
