1410232-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1410232-4

1410232-4: DescriptionMULTIGIG RT T1 1\" DC SE H-LFT PBFR; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1410232-4 Overview

MULTIGIG RT T1 1\" DC SE H-LFT PBFR

1410232-4 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Maker	TE Connectivity
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN (50) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1410232
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	15
Options	GENERAL PURPOSE
Terminal pitch	1.8 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

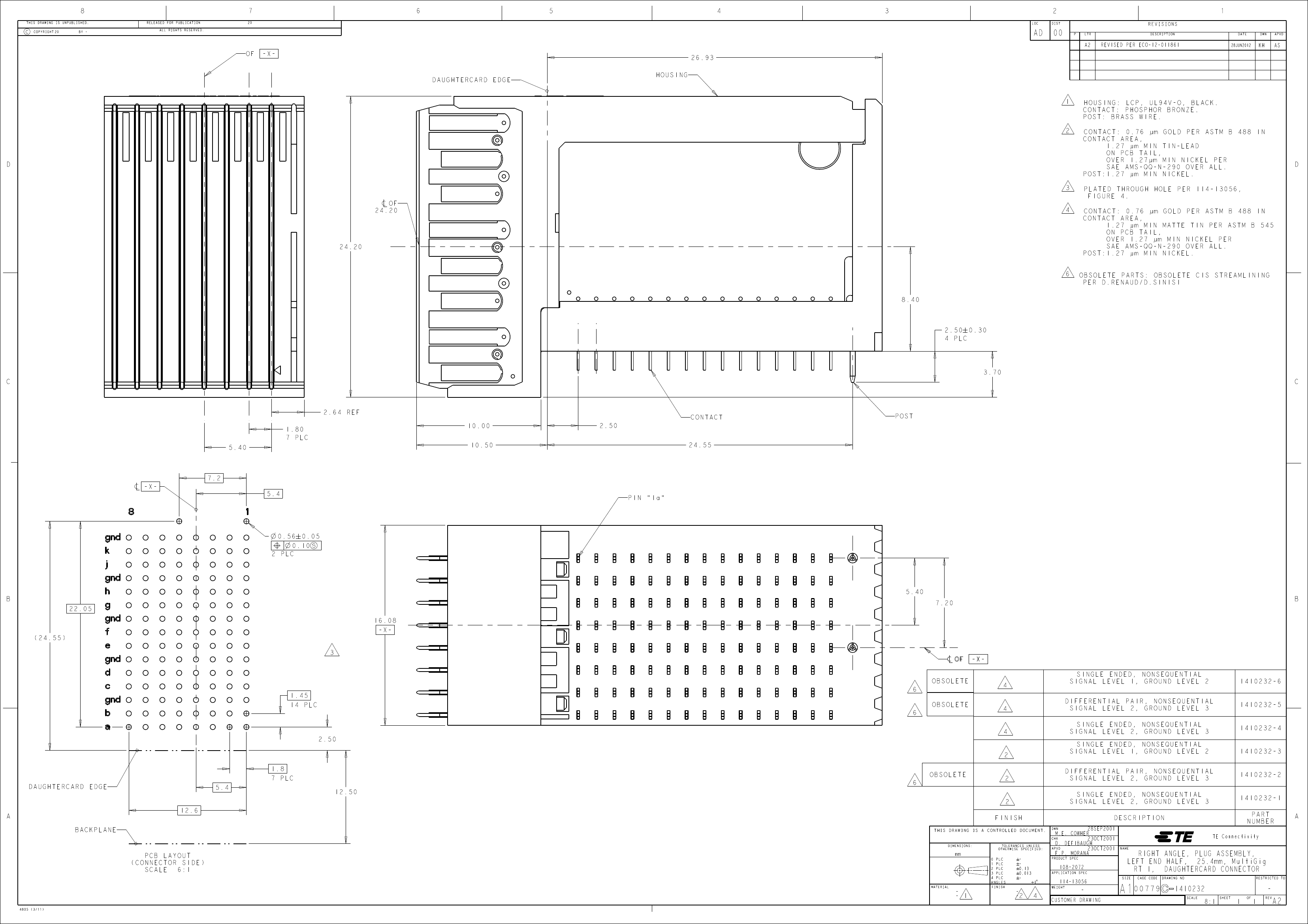

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

LTR

REVISIONS

DESCRIPTION

DATE

DWN

APVD

-X-

HOUSING

26.93

DAUGHTERCARD EDGE

24.20

8.40

2.50

0.30

4 PLC

3.70

2.64

1.80

7 PLC

REF

10.00

10.50

2.50

CONTACT

POST

5.40

24.55

-X-

7.2

5.4

PIN "1a"

0.56

2 PLC

0.10

0.05

5.40

22.05

16.08

( 24.55 )

-X-

7.20

OBSOLETE

1.45

14 PLC

OBSOLETE

-X-

SINGLE ENDED, NONSEQUENTIAL

SIGNAL LEVEL 1, GROUND LEVEL 2

DIFFERENTIAL PAIR, NONSEQUENTIAL

SIGNAL LEVEL 2, GROUND LEVEL 3

SINGLE ENDED, NONSEQUENTIAL

SIGNAL LEVEL 2, GROUND LEVEL 3

SINGLE ENDED, NONSEQUENTIAL

SIGNAL LEVEL 1, GROUND LEVEL 2

1410232-6

1410232-5

1410232-4

1410232-3

1410232-2

1410232-1

PART

NUMBER

TE Connectivity

NAME

2.50

1.8

DAUGHTERCARD EDGE

12.6

BACKPLANE

5.4

7 PLC

12.50

OBSOLETE

DIFFERENTIAL PAIR, NONSEQUENTIAL

SIGNAL LEVEL 2, GROUND LEVEL 3

SINGLE ENDED, NONSEQUENTIAL

SIGNAL LEVEL 2, GROUND LEVEL 3

FINISH

DESCRIPTION

DWN

CHK

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

PCB LAYOUT

(CONNECTOR SIDE)

SCALE

6:1

MATERIAL

APVD

PRODUCT SPEC

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

REV

4805 (3/11)

1410232-4 Related Products

	1410232-4
Description	MULTIGIG RT T1 1\" DC SE H-LFT PBFR
Brand Name	TE Connectivity
Maker	TE Connectivity
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN (50) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1410232
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	15
Options	GENERAL PURPOSE
Terminal pitch	1.8 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0
