A556605A3GS210: Description5 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector; File Size458KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A556605A3GS210 Overview

5 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

A556605A3GS210 Parametric

Parameter Name	Attribute value
Contact materials	BRASS
Total number of contacts	5
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	5566
Contact surface matching	GOLD (30) OVER NICKEL
Contact coated terminals	TIN (100) OVER NICKEL
Connection Type	POWER CONNECTOR
Connector male and female	MALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD
Shell material	POLYAMIDE66
Terminal type	SOLDER
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039302052

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Single Row, Vertical, with Snap-in Plastic

Peg PCB Lock, 5 Circuits, PA Polyamide Nylon 6/6, UL 94V-0, 0.76µm (30µ") Gold (Au)

Selective Plating, without Drain Holes

Documents:

3D Model

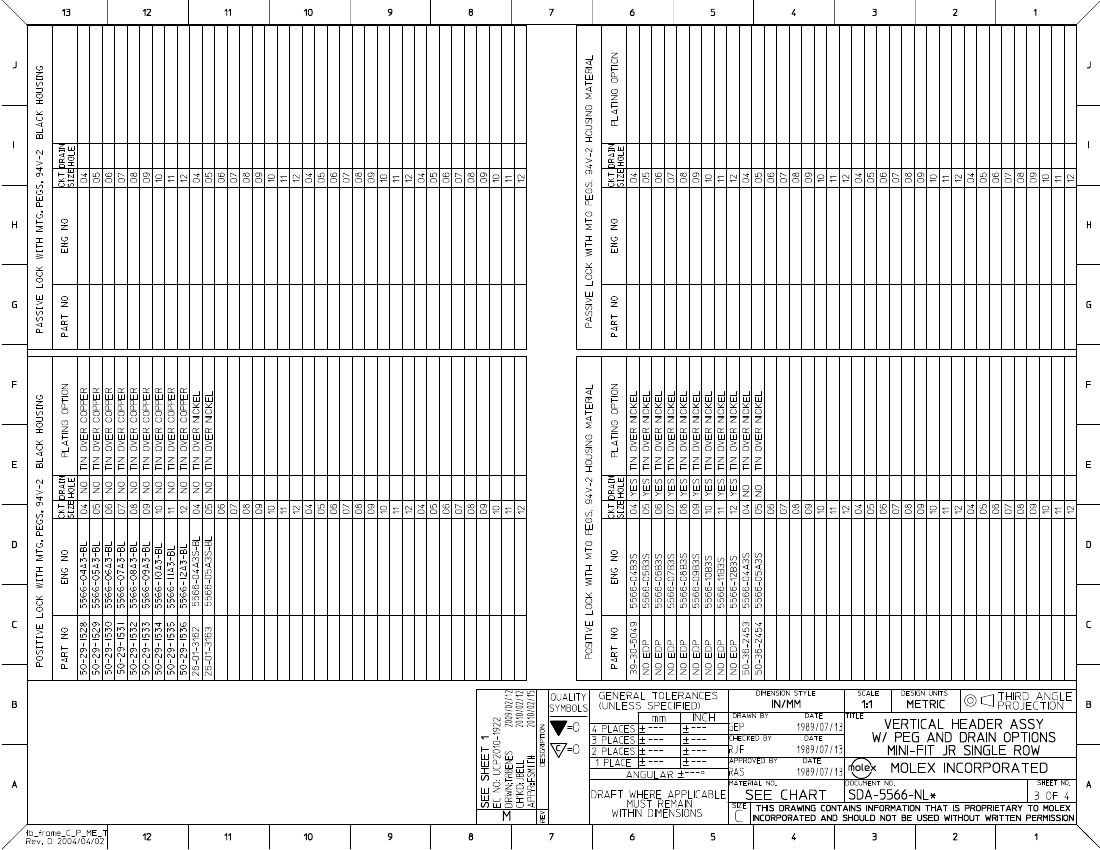

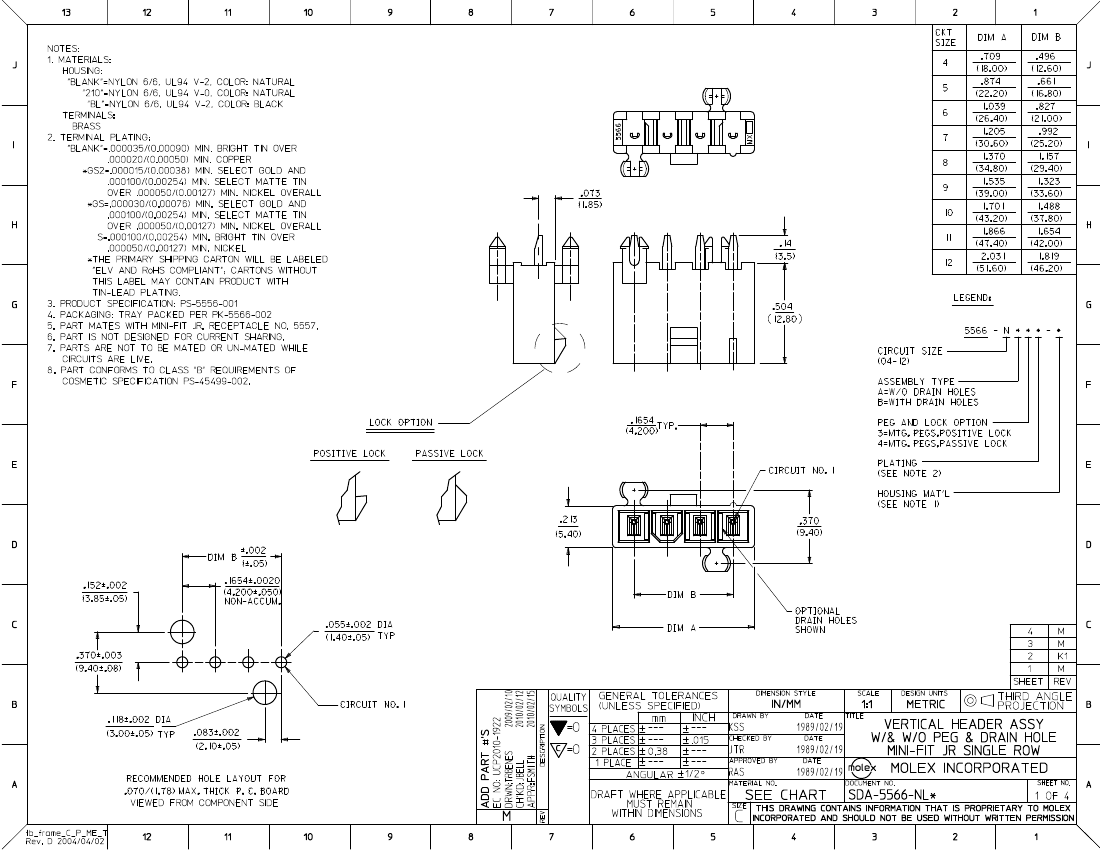

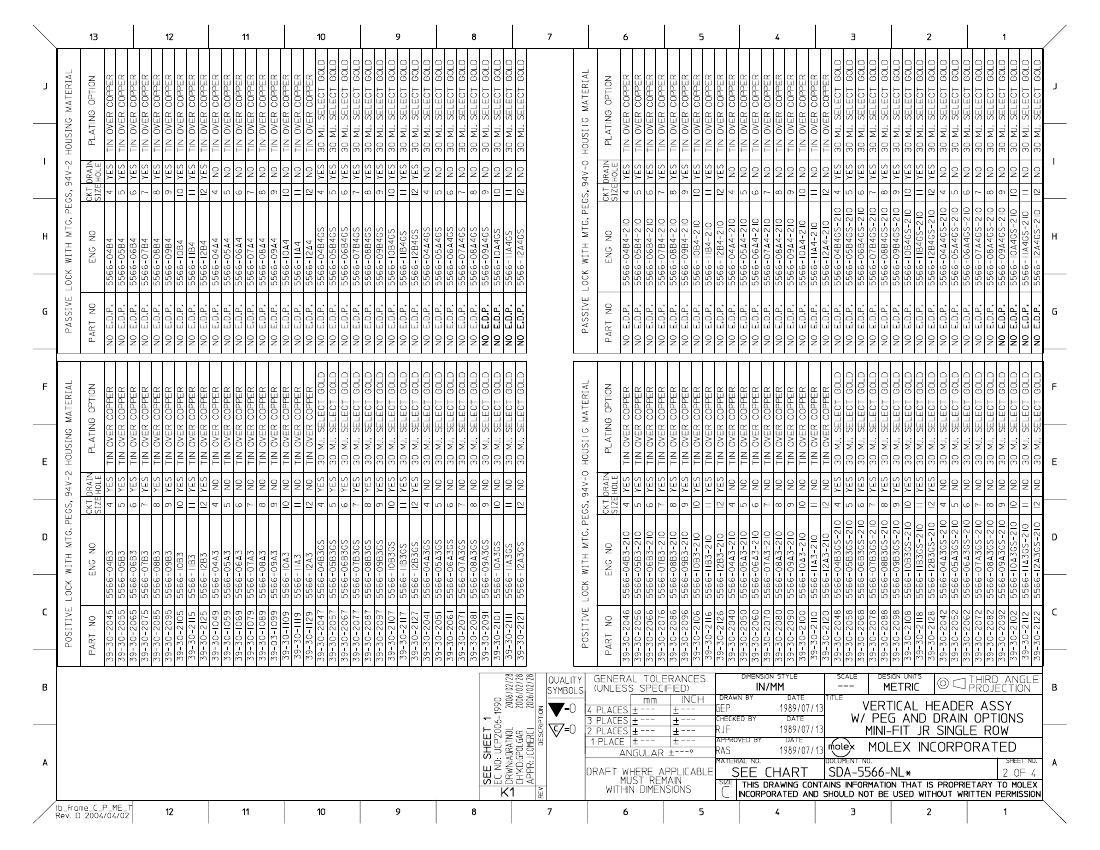

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

PCB Headers

5566

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex product specification PS-45750-001 for additional

current de-rating information.. High Temperature,

Square Pin, Solder Type

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Natural

94V-0

None

Yes

Brass

Gold

Tin

Nylon

Vertical

0.138 In

3.50 mm

Yes

0.062 In

1.60 mm

Tray

0.165 In

4.20 mm

Search Parts in this Series

5566Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing
