Part Number

Search

BB-5221

Description
2 mm2, BRASS, PUSH-ON TERMINAL
CategoryThe connector    terminals
File Size87KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

BB-5221 Overview

2 mm2, BRASS, PUSH-ON TERMINAL

BB-5221 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesPUSH-ON TERMINAL
Conductor cross section2 mm2
Wire gauge14 AWG
Base Number Matches1

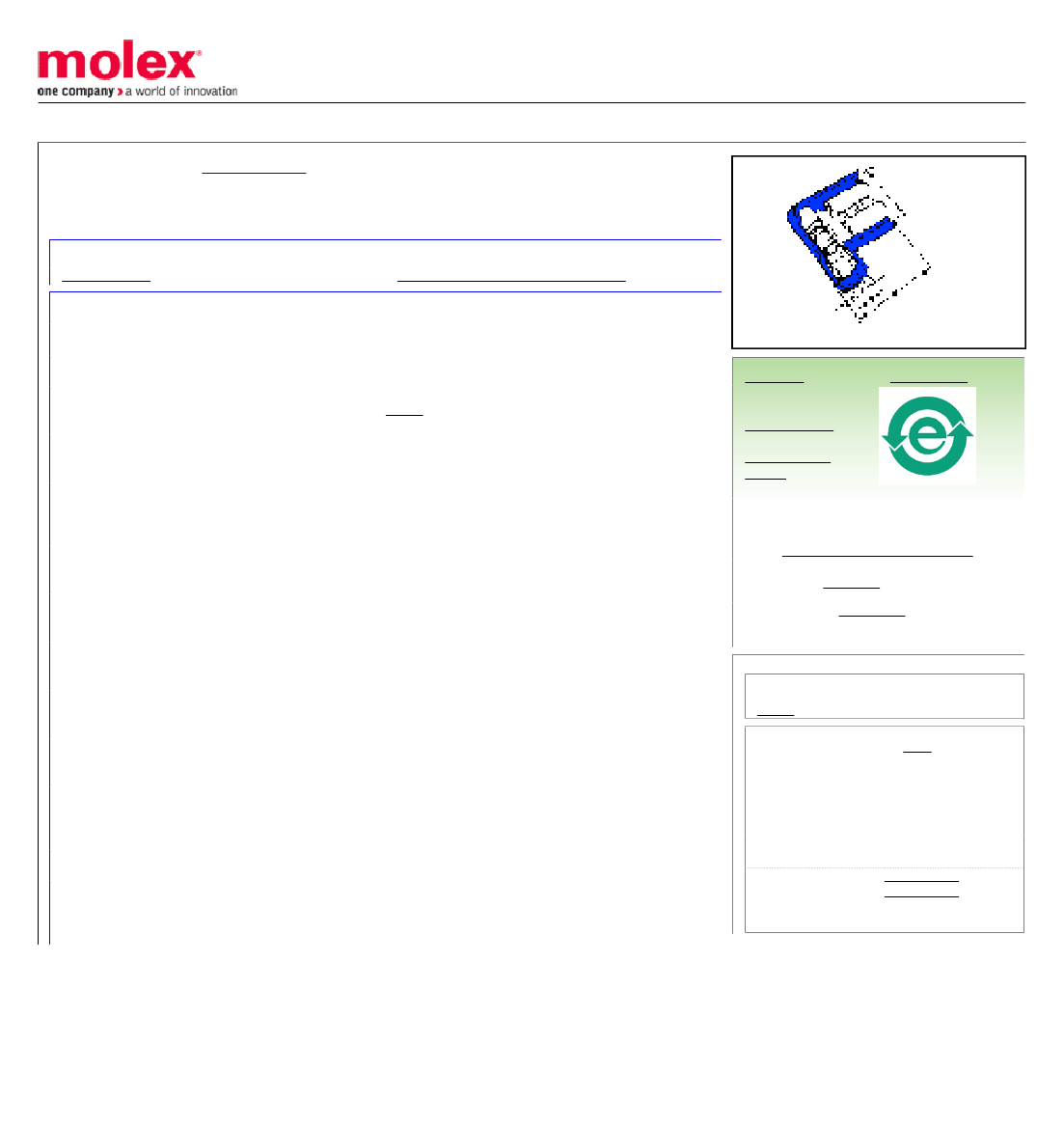

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190060011
Active
Avikrimp™ Quick Disconnect for 14-16 AWG Wire, Female Flag, Tab 6.35mm (.250") x
0.81mm (.032")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
MolexKits
Product Name
Type
Quick Disconnects
19006
Yes
Yes
Avikrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Resin
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
Nylon (PA)
None
Brass
Nylon
Flag
Bag
No
0.81mm (.032")
6.35mm (.250")
-65°C to +105°C
4.32mm (.170") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19006Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640014300
Crimp Head for the 0640054300
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
BB-5221
Reference - Drawing Numbers

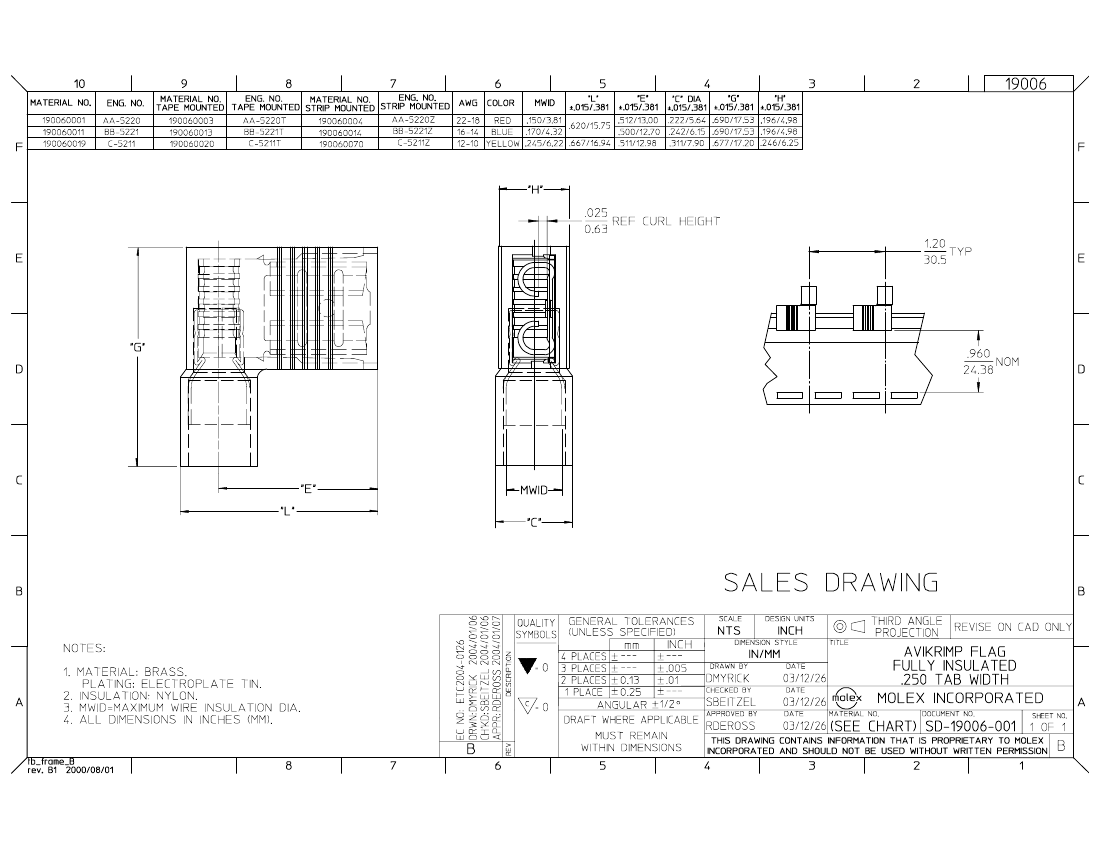

Sales Drawing
SD-19006-001
This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
