395360008 Overview

5.08mm

This document was generated on 04/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0395360008
Active
5.08mm (.200") Pitch Eurostyle™ Horizontal PCB Header, with Threaded Retention
Inserts, 8 Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39536
Wire-to-Board
PCB Header
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
8
N/A
Yes
1
Horizontal
0.200 In
5.08 mm
0.125 In
3.20 mm
No
0.200 In
5.08 mm
Yes
Closed Ends
No
N/A
-40°C to +140°C
N/A
Search Parts in this Series
39536Series
Mates With
Most 5.08mm (.200") Pitch Industry
Standard Plugs, 39534 Horizontal Plug with
Retention Screws, 39537 Vertical Plug with
Retention Screws
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info

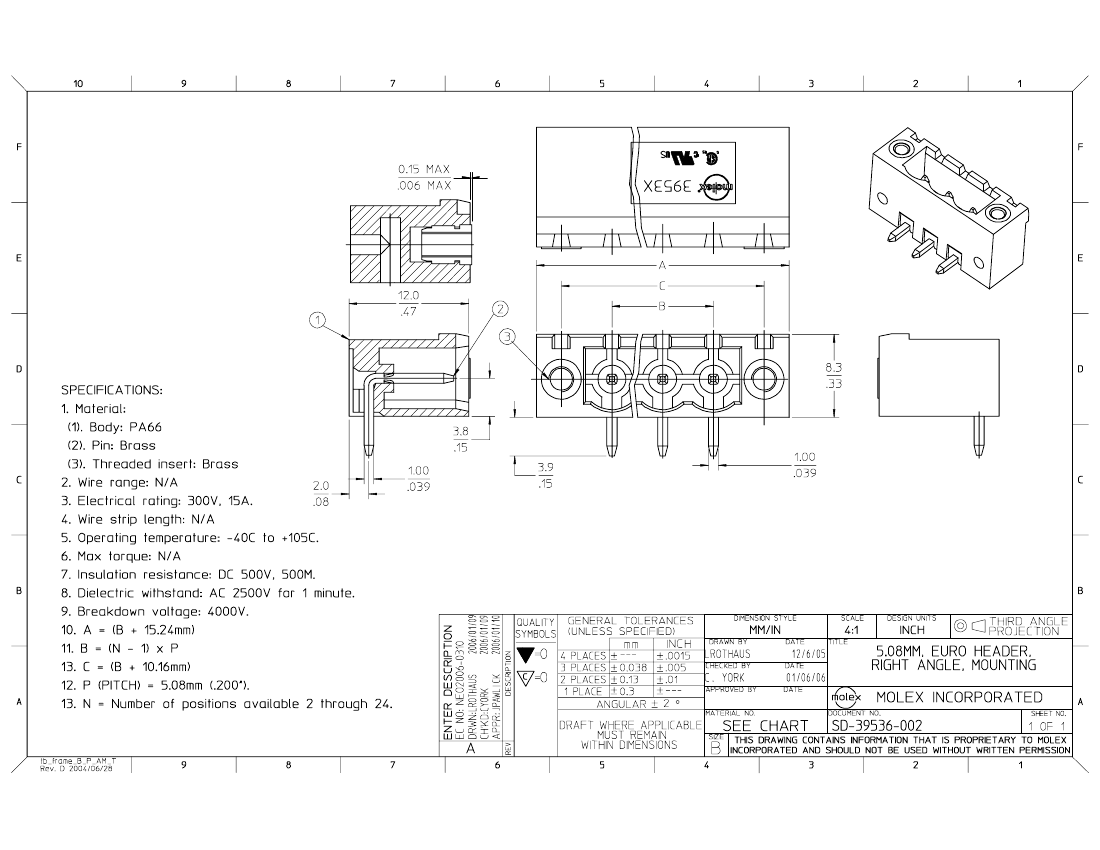

Reference - Drawing Numbers
Sales Drawing
SD-39501-002, SD-39536-002
This document was generated on 04/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
