3-1393813-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3-1393813-9

3-1393813-9: DescriptionPOWER/SIGNAL RELAY, MOMENTARY, 0.038A (COIL), 24VDC (COIL), 914mW (COIL), 2A (CONTACT), 150VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size1MB，18 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393813-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1393813-9	-	-	View	Buy Now

3-1393813-9 Overview

POWER/SIGNAL RELAY, MOMENTARY, 0.038A (COIL), 24VDC (COIL), 914mW (COIL), 2A (CONTACT), 150VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT

3-1393813-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	19 mm
body height	30 mm
Body length or diameter	35 mm
Maximum coil current (DC)	0.038 A
Coil operating voltage (DC)	13 V
Coil power	914 mW
Coil resistance	630 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@125VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@150VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Installation features	PANEL MOUNT
operating hours	16 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	35mm x 19mm x 30mm
Relay action	MOMENTARY
Relay type	POWER/SIGNAL RELAY
release time	2 ms
seal	IP30
surface mount	NO
Termination type	SOLDER

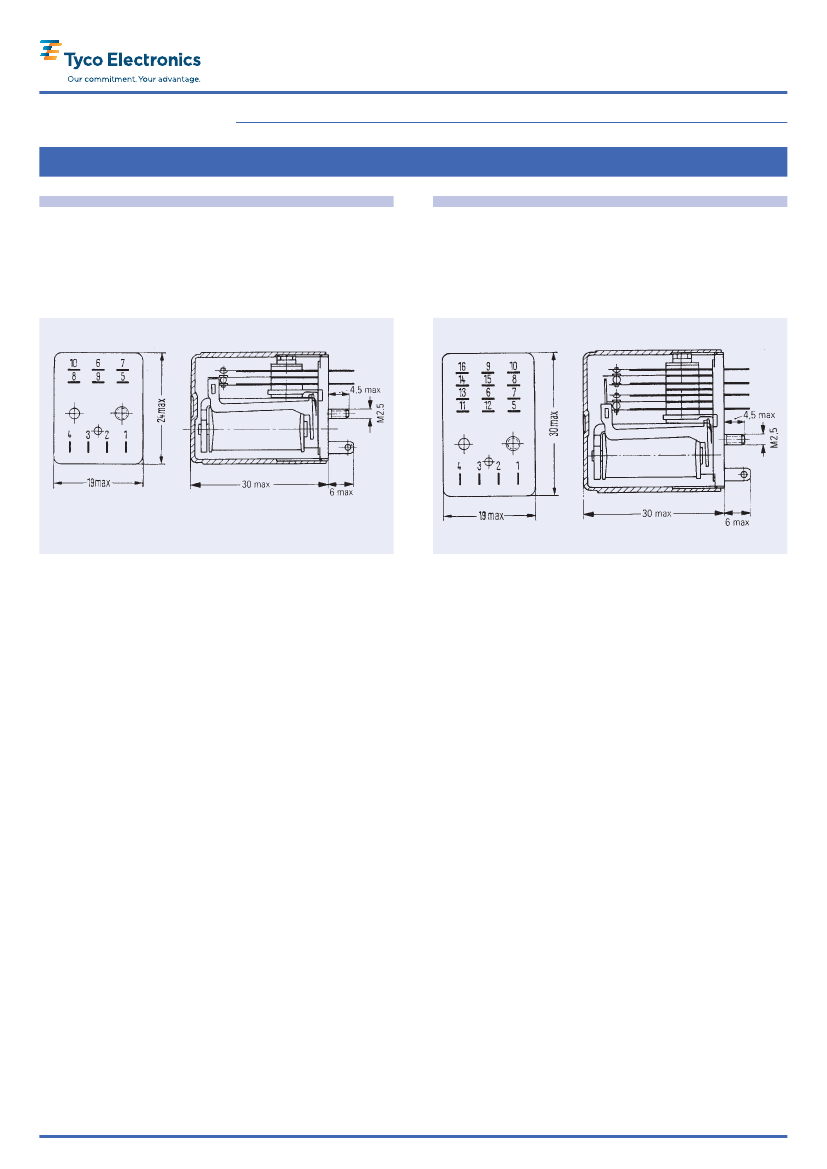

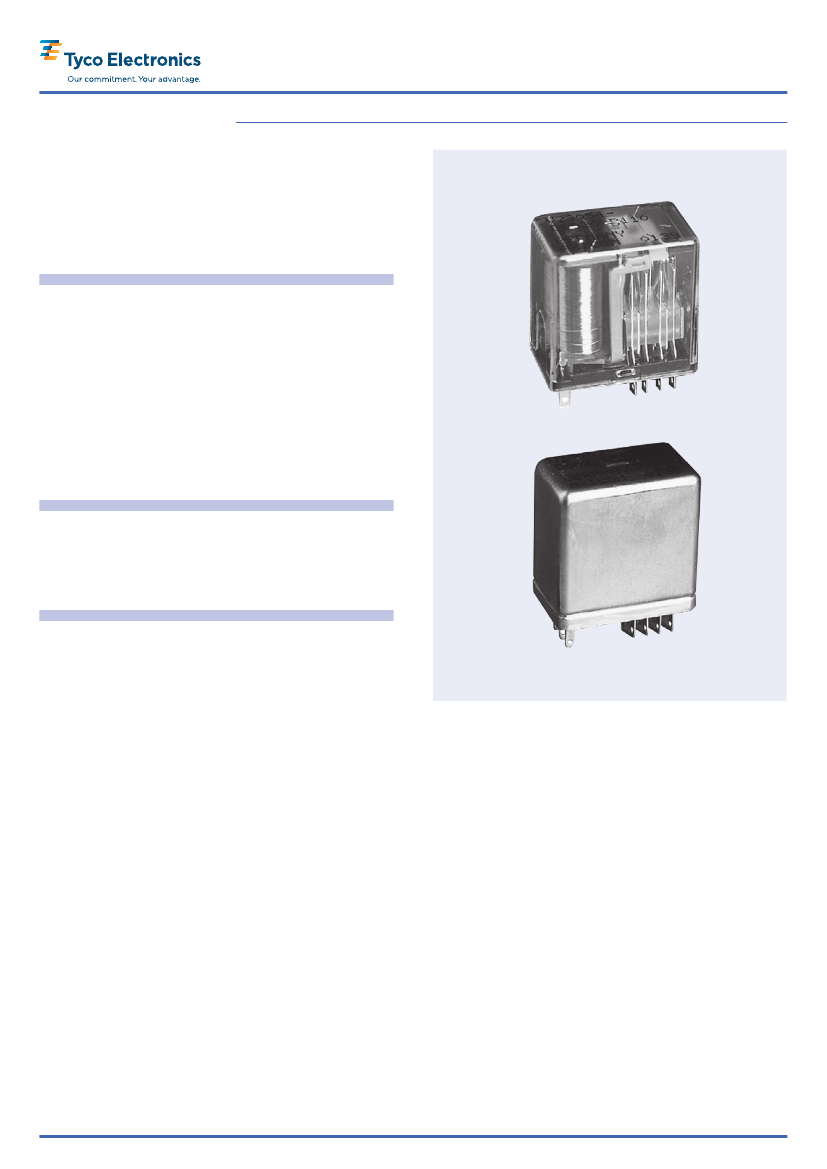

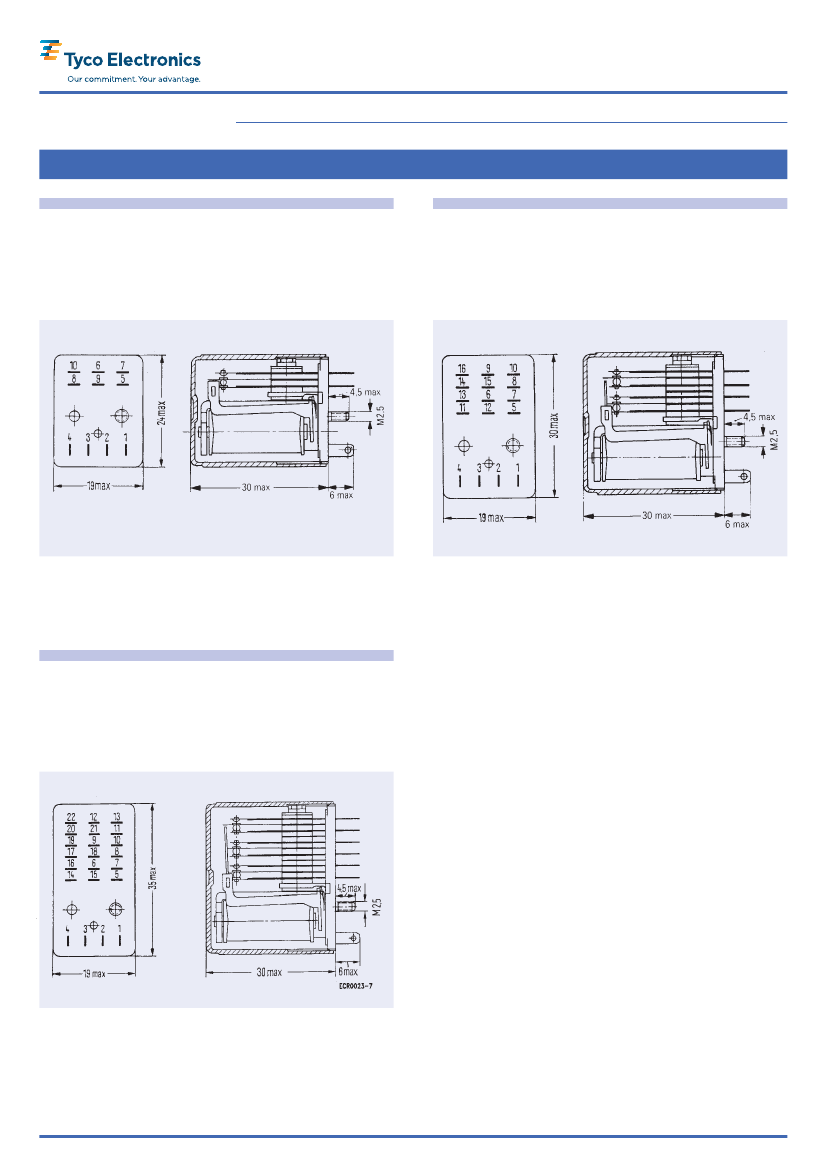

Preview

Download Datasheet

View All

Telecom-, Signal and RF Relays

AXICOM

Cradle Relay S

V23054 / V23062

108-98012 • Nov. 07 • Rev. C • ECOC: JM10

3-1393813-9 Related Products

	3-1393813-9	MFS1/4CCT26R2083D	1-1393812-4	MFS1/4CCT52R2701D	1393813-5	1393813-2	1393815-7
Description	POWER/SIGNAL RELAY, MOMENTARY, 0.038A (COIL), 24VDC (COIL), 914mW (COIL), 2A (CONTACT), 150VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT	Fixed Resistor, Metal Film, 0.25W, 208000ohm, 250V, 0.5% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT	V23054C 21C404	Fixed Resistor, Metal Film, 0.25W, 2700ohm, 250V, 0.5% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT	V23054D2021B112	V23054D2013B110	V23062B 22C110
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	AXIAL LEADED, ROHS COMPLIANT	ROHS COMPLIANT	AXIAL LEADED, ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Installation features	PANEL MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	70 °C	155 °C	70 °C	155 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C
surface mount	NO	NO	NO	NO	NO	NO	NO
Maker	TE Connectivity	-	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity
body width	19 mm	-	19 mm	-	19 mm	19 mm	19 mm
body height	30 mm	-	30 mm	-	30 mm	30 mm	30 mm
Body length or diameter	35 mm	-	24 mm	-	30 mm	30 mm	30 mm
Maximum coil current (DC)	0.038 A	-	0.03 A	-	0.03 A	0.008 A	0.024 A
Coil operating voltage (DC)	13 V	-	17.5 V	-	14.5 V	59 V	29 V
Coil power	914 mW	-	975 mW	-	975 mW	1008 mW	1066 mW
Coil resistance	630 Ω	-	1050 Ω	-	1050 Ω	15500 Ω	1900 Ω
Maximum coil voltage (DC)	24 V	-	32 V	-	32 V	125 V	45 V
Coil/Input Power Type	DC	-	DC	-	DC	DC	DC
Contact (AC) maximum rated R load	2A@125VAC	-	.2A@30VAC	-	2A@125VAC	2A@125VAC	2A@125VAC
Maximum contact current (AC)	2 A	-	0.2 A	-	2 A	2 A	2 A
Maximum contact current (DC)	2 A	-	0.2 A	-	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@150VDC	-	.2A@36VDC	-	2A@150VDC	2A@150VDC	2A@150VDC
Maximum contact voltage (AC)	125 V	-	30 V	-	125 V	125 V	125 V
Maximum contact voltage (DC)	150 V	-	36 V	-	150 V	150 V	150 V
Contact/Output Power Type	AC/DC	-	AC/DC	-	AC/DC	AC/DC	AC/DC
operating hours	16 ms	-	16 ms	-	16 ms	16 ms	16 ms
physical size	35mm x 19mm x 30mm	-	24mm x 19mm x 30mm	-	30mm x 19mm x 30mm	30mm x 19mm x 30mm	30mm x 19mm x 30mm
Relay action	MOMENTARY	-	MOMENTARY	-	MOMENTARY	MOMENTARY	MOMENTARY
Relay type	POWER/SIGNAL RELAY	-	POWER/SIGNAL RELAY	-	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	2 ms	-	2 ms	-	2 ms	2 ms	2 ms
seal	IP30	-	IP30	-	IP30	IP30	HERMETICALLY SEALED
Termination type	SOLDER	-	SOLDER	-	SOLDER	SOLDER	SOLDER
Brand Name	-	-	AMP	-	AMP	AMP	AMP
