3-1415400-1 Overview

POWER/SIGNAL RELAY

3-1415400-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Relay typePOWER/SIGNAL RELAY
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Relays > Product Feature Selector > Product Details

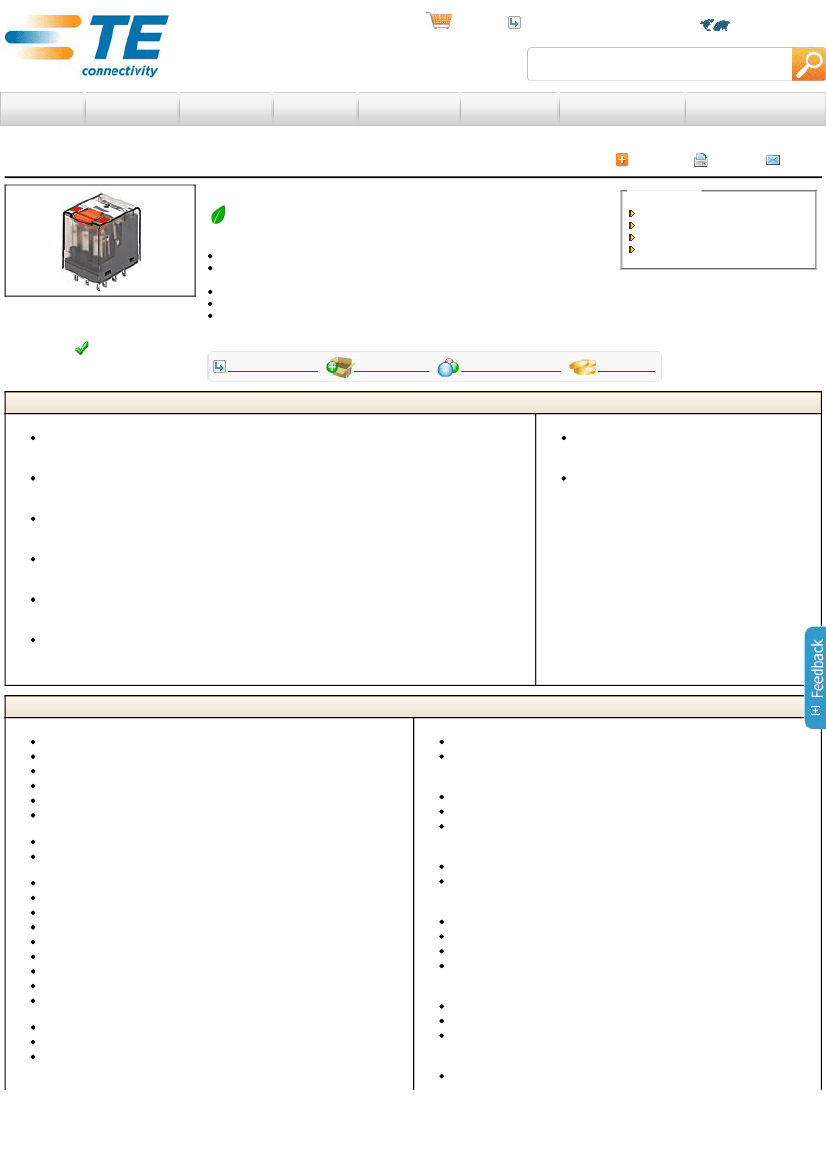

3­1415400­1 Product Details
Industrial Relays (General Purpose)

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
PT Series
Contact ­ Current Class = 5A to 10A Class, Less Than
16A
Contact ­ Rated Current = 10 A
Terminal Type = Plug­in, Quick Connect
Contact ­ Arrangement = 3 Form C (CO)
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
3­1415400­1

TE Internal Number: 3­1415400­1
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
Miniature Relay PT (PDF, English)
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Electrical Characteristics:
Contact ­ Current Class = 5A to 10A Class, Less Than 16A
Contact ­ Rated Current (A) = 10
Contact ­ Limiting Continuous Current (A) = 10
Contact ­ Limiting Making Current (A) = 20
Contact ­ Limiting Breaking Current (A) = 10
Insulation ­ Initial Dielectric Between Coil/Contact Class = 1500V to
2500VA Class
Insulation ­ Initial Dielectric Between Open Contacts (V rms) = 1200
Insulation ­ Initial Dielectric Between Contacts and Coil (V rms) =
2500
Contact ­ Rated Voltage (VAC) = 240
Contact ­ Switching Voltage Max. (VAC) = 400
Contact ­ Limiting Short­Time Current (A) = 300
Contact ­ Switching Recommended Load, Min. = 10mA at 12V
Coil ­ Rated Voltage (VDC) = 24
Coil ­ Resistance (Ω) = 777
Coil ­ Rated Power, DC (mW) = 741
Coil ­ Rated Power Class = 600mW to 800mW Class
Insulation ­ Initial Dielectric Between Adjacent Contacts (V rms) =
2500
Insulation ­ Creepage Class = 3mm to 5.5mm Class
Insulation ­ Clearance Class = 2.5mm to 4mm Class
Insulation ­ Special Features = 5000V Initial Surge Withstand Voltage
between Contacts and Coil
Body Features:
Mount Type = Socket
Weight (g [oz]) = 30.00 [1.058]
Contact Features:
Terminal Type = Plug­in, Quick Connect
Contact Material = AgNi90/10
Contact ­ Number of Poles = 3
Configuration Features:
Contact ­ Arrangement = 3 Form C (CO)
Coil ­ Magnetic System = Monostable, DC
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Hand solderable with lead free solder
RoHS/ELV Compliance History = Always was RoHS compliant
Approved/Registered Standards = cULus, LLOYDs, VDE
Environmental:
Environmental ­ Category of Protection = RTII
Environmental ­ Ambient Temperature, Max. (°C [°F]) = 70 [158]
Environmental ­ Ambient Temperature Class = 50°C to 70°C Class
Packaging Features:
Packaging Method = Tube
