4
THIS DRAWING IS UNPUBLISHED.
VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG
3
2014
MATED WITH:
PASSEND ZU:
2
-
PRJ-14-000000805
PROJEKT NR.:
1
REVISIONS
P
LTR
AENDERUNGEN
DESCRIPTION
BESCHREIBUNG
DATE
DWN
APVD
C
COPYRIGHT
2014
RELEASED FOR PUBLICATION
FREI FUER VEROEFFENTLICHUNG
ALL RIGHTS RESERVED.
Tyco Electronics AMP GmbH
ALLE RECHTE VORBEHALTEN.
A2
DESCRIPTION CORRECTED FROM SOLDER TO SCREW TERMINAL IN TITLE BLOCK
13NOV2014
CR
JK
1
D
MATERIAL: ITEM NO. 1: HOUSING
- ZINC DIECASTING, NICKEL PLATED
ITEM NO. 2: CONTACT BODY - PA
ITEM NO. 3: CONTACT
- CuZn (brass)
CONTACT FINISH - Au (gold)
ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED
MEASUREMENT REFERENCE ONLY
PACKAGING: 1 PIECE IN A BAG
D
2
3
4
3-2271115-2
C
TECHNICAL
DATA
RATED VOLTAGE
RATED IMPULSE VOLTAGE
POLLUTION DEGREE
OVERVOLTAGE CATEGORY
MATERIAL GROUP
RATED CURRENT
VOLUME RESISTIVITY
DEGREE OF PROTECTION
UPPER TEMPERATURE
LOWER TEMPERATURE
~70
C
2500V
II
4A
3
III
<3m ^
IP67
+85°C
-40°C
SW 18mm
SW 16mm
SW 13mm
B
PIN ARRANGEMENT
D-CODING (SCALE 4:1)
3-2271115-2
20
M 12x1
250V
B
6
5
1.
$
45
$
1
3
2
5-8
mm
18 / 0.75mm²
AWG / mm²
1
4
3-2271115-2
CABLE FEED-THROUGH
DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.
BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
WIRES
MATERIAL
NUMBER OF POLES
TE-PART-NO.
A
DIMENSIONING AND TOLERANCING PER GPS
DIMENSIONS:
MASSEINHEITEN:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
ALLGEMEINTOLERANZEN
SIZE ISO 14405
1471-9 (3/13)
MATERIAL
•
0 PLC
-
1 PLC
-
2 PLC
-
3 PLC
-
4 PLC
-
ANGLES
/WINKEL
PRODUCT SPEC
PRODUKTSPEZ.
16MAY2014
YASHKUMAR
(ISO STANDARDS).
CHK
16MAY2014
M.STRELOW
APVD
16MAY2014
NAME
C.SCHRETTLINGER
TE Connectivity
A
-
-
FINISH
/OBERFLAECHE/FARBE
-
APPLICATION SPEC
VERARBEITUNGSSPEZ.
108-19483
SIZE
-
-
114-32127
WEIGHT
-
GEWICHT
Customer Drawing
A2
00779
CAGE CODE DRAWING NO
ZEICHNUNGS-NR.

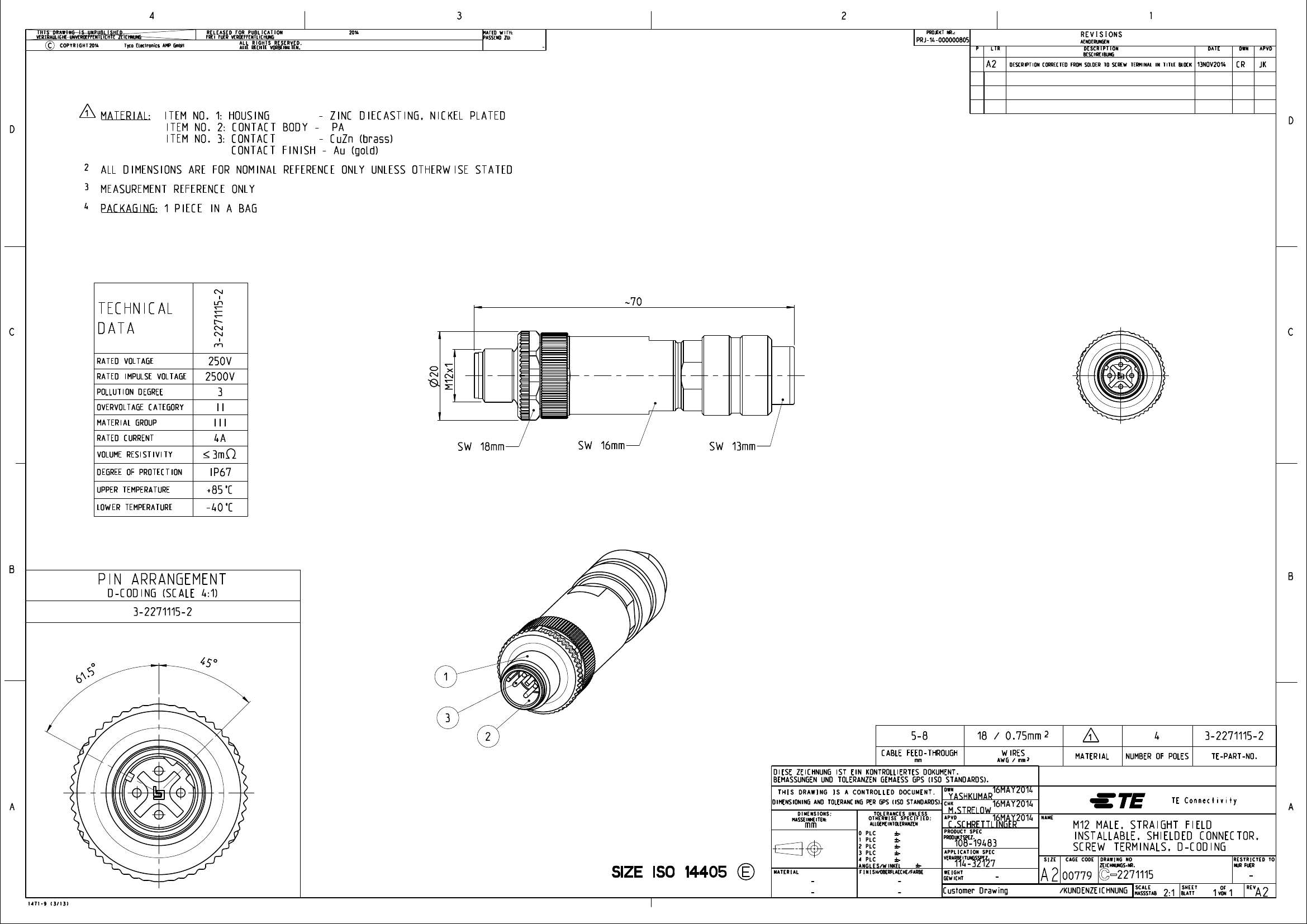

M12 MALE, STRAIGHT FIELD
INSTALLABLE, SHIELDED CONNECTOR,
SCREW TERMINALS, D-CODING
2271115
SCALE
RESTRICTED TO
NUR FUER
/
KUNDENZEICHNUNG
MASSSTAB
2:1
BLATT
SHEET
1
VON
1
OF
REV
-
A2
