THIS DRAWING IS UNPUBLISHED.
VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG
3
2014
MATED WITH:
PASSEND ZU:
2
-
PRJ-14-000000805
PROJEKT NR.:
1
REVISIONS
P
LTR
AENDERUNGEN
DESCRIPTION
BESCHREIBUNG
DATE
DWN
APVD
C
COPYRIGHT
2014
RELEASED FOR PUBLICATION
FREI FUER VEROEFFENTLICHUNG
ALL RIGHTS RESERVED.
Tyco Electronics AMP GmbH
ALLE RECHTE VORBEHALTEN.
1
A2
DESCRIPTION CORRECTED FROM SOLDER TO SCREW TERMINAL IN TITLE BLOCK
13NOV2014
CR
JK
D
MATERIAL: ITEM NO. 1: HOUSING
- ZINC DIECASTING, NICKEL PLATED
ITEM NO. 2: CONTACT BODY - PA
ITEM NO. 3: CONTACT
- CuZn (brass)
CONTACT FINISH - Au (gold)
ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED
MEASUREMENT REFERENCE ONLY
PACKAGING: 1 PIECE IN A BAG
2
3
4
D
CABLE
n -8
5
C
C
2
M 12x1
3
B
~64
1
SW 18mm
3-2271127-2
~42
20
B
PIN ARRANGEMENT
D-CODING
3-2271127-2
.
61
5
$
45
$
TECHNICAL
DATA
RATED VOLTAGE
RATED IMPULSE VOLTAGE
POLLUTION DEGREE
OVERVOLTAGE CATEGORY
MATERIAL GROUP
RATED CURRENT
2500V
II
4A
3
18 / 0.75mm²
AWG / mm²
250V
1
4
3-2271127-2
III
<3m ^
IP67
+85°C
-40°C
WIRES
MATERIAL
NUMBER OF POLES
TE-PART-NO.
DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.
BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONING AND TOLERANCING PER GPS
DIMENSIONS:
MASSEINHEITEN:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
ALLGEMEINTOLERANZEN
DWN
A
VOLUME RESISTIVITY
DEGREE OF PROTECTION
UPPER TEMPERATURE
LOWER TEMPERATURE
mm
SIZE ISO 14405
1471-9 (3/13)
MATERIAL
•
0 PLC
-
1 PLC
-
2 PLC
-
3 PLC
-
4 PLC
-
ANGLES
/WINKEL
PRODUCT SPEC
PRODUKTSPEZ.
16MAY2014
YASHKUMAR
(ISO STANDARDS).
CHK
16MAY2014
M.STRELOW
APVD
16MAY2014
NAME
C.SCHRETTLINGER
TE Connectivity
A
-
-
FINISH
/OBERFLAECHE/FARBE
-
APPLICATION SPEC
VERARBEITUNGSSPEZ.
108-19483
SIZE
-
-
114-32127
WEIGHT
-
GEWICHT
Customer Drawing
A2
00779
CAGE CODE DRAWING NO
ZEICHNUNGS-NR.

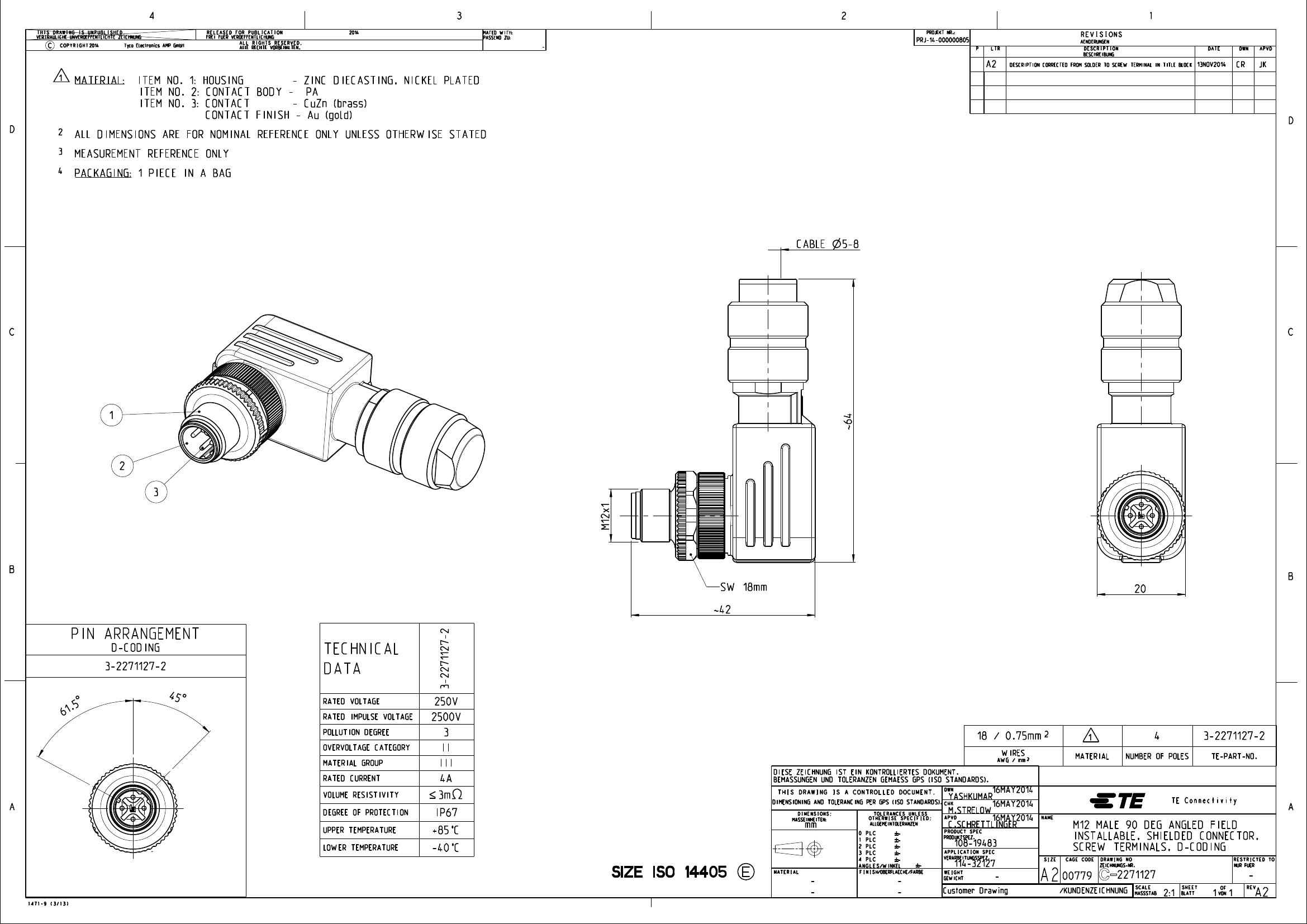

M12 MALE 90 DEG ANGLED FIELD
INSTALLABLE, SHIELDED CONNECTOR,
SCREW TERMINALS, D-CODING
2271127
SCALE
RESTRICTED TO
NUR FUER
/
KUNDENZEICHNUNG
MASSSTAB
2:1
BLATT
SHEET
1
VON
1
OF
REV
-
A2
