3-2271135-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-2271135-2

3-2271135-2: DescriptionM12.MALE PNL.B CODE.SOLDER REAR.4P.(AU); CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-2271135-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-2271135-2	-	-	View	Buy Now

3-2271135-2 Overview

M12.MALE PNL.B CODE.SOLDER REAR.4P.(AU)

3-2271135-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	8003308362
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

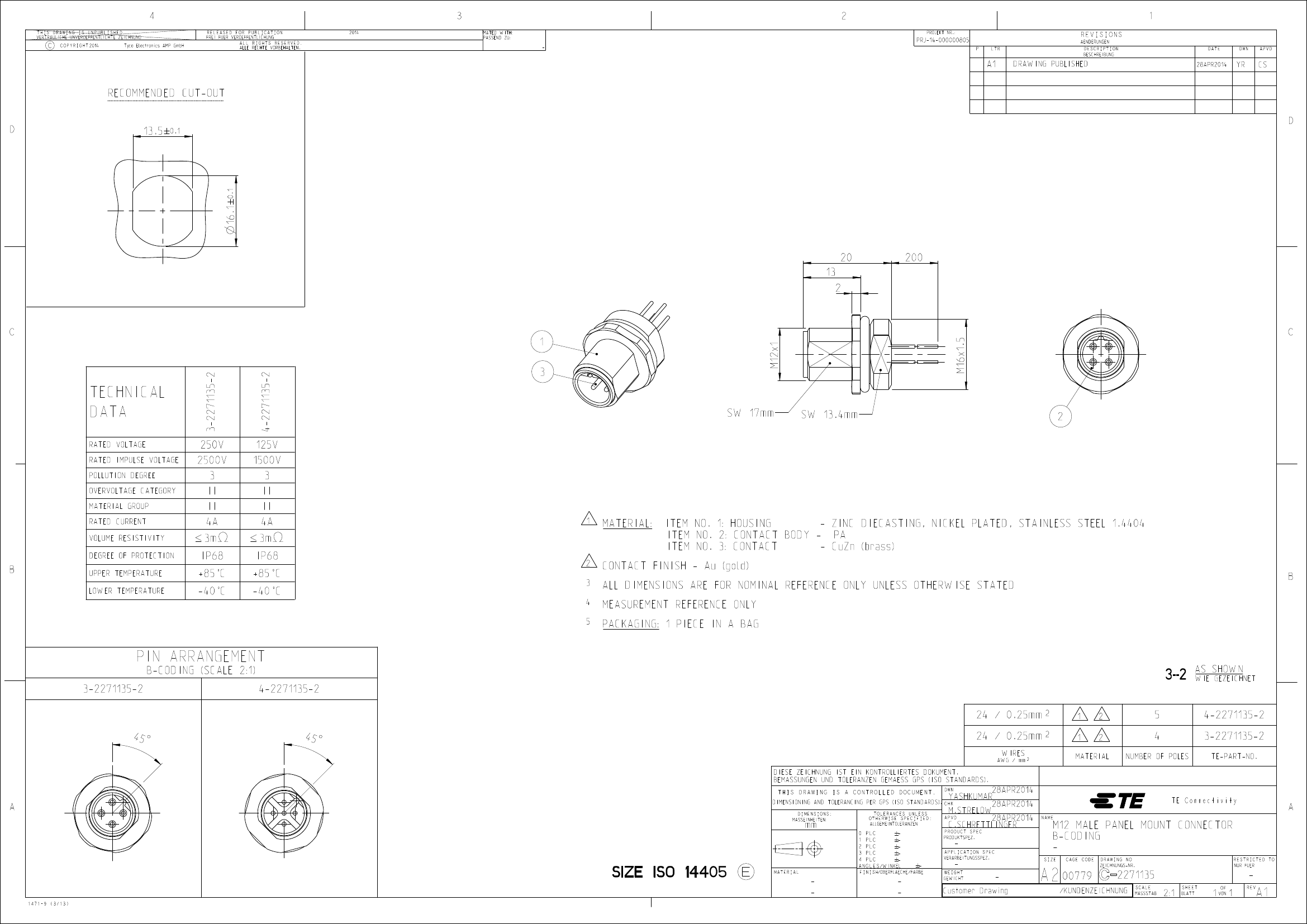

THIS DRAWING IS UNPUBLISHED.

VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG

2014

MATED WITH:

PASSEND ZU:

PRJ-14-000000805

PROJEKT NR.:

REVISIONS

LTR

AENDERUNGEN

DESCRIPTION

BESCHREIBUNG

DATE

DWN

APVD

2014

RELEASED FOR PUBLICATION

FREI FUER VEROEFFENTLICHUNG

Tyco Electronics AMP GmbH

DRAWING PUBLISHED

28APR2014

--------------------------------------------------------------------------

RECOMMENDED CUT-OUT

13.5

0.1

16.1

0.1

200

3-2271135-2

4-2271135-2

TECHNICAL

DATA

RATED VOLTAGE

RATED IMPULSE VOLTAGE

POLLUTION DEGREE

OVERVOLTAGE CATEGORY

MATERIAL GROUP

RATED CURRENT

VOLUME RESISTIVITY

DEGREE OF PROTECTION

SW 17mm

M 12x1

SW 13.4mm

M 16x1.5

2500V

<3m ^

IP68

+85°C

-40°C

250V

1500V

<3m ^

IP68

+85°C

-40°C

125V

MATERIAL: ITEM NO. 1: HOUSING

- ZINC DIECASTING, NICKEL PLATED, STAINLESS STEEL

1.4404

ITEM NO. 2: CONTACT BODY - PA

ITEM NO. 3: CONTACT

- CuZn (brass)

CONTACT FINISH - Au (gold)

ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED

MEASUREMENT REFERENCE ONLY

PACKAGING: 1 PIECE IN A BAG

UPPER TEMPERATURE

LOWER TEMPERATURE

PIN ARRANGEMENT

B-CODING (SCALE 2:1)

3-2271135-2

4-2271135-2

24 / 0.25mm²

3--2

WIE

AS SHOWN

GEZEICHNET

4-2271135-2

3-2271135-2

24 / 0.25mm²

AWG / mm²

WIRES

MATERIAL

NUMBER OF POLES

TE-PART-NO.

DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.

BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

DIMENSIONING AND TOLERANCING PER GPS

DIMENSIONS:

MASSEINHEITEN:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ALLGEMEINTOLERANZEN

SIZE ISO 14405

1471-9 (3/13)

MATERIAL

•

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

/WINKEL

PRODUCT SPEC

PRODUKTSPEZ.

28APR2014

YASHKUMAR

(ISO STANDARDS).

CHK

28APR2014

M.STRELOW

APVD

28APR2014

NAME

C.SCHRETTLINGER

M12

TE Connectivity

FINISH

/OBERFLAECHE/FARBE WEIGHT

GEWICHT

APPLICATION SPEC

VERARBEITUNGSSPEZ.

Customer Drawing

00779

SIZE

MALE PANEL MOUNT CONNECTOR

B-CODING

CAGE CODE DRAWING NO

ZEICHNUNGS-NR.

2271135

SCALE

RESTRICTED TO

NUR FUER

KUNDENZEICHNUNG

MASSSTAB

2:1

BLATT

SHEET

VON

REV

3-2271135-2 Related Products

	3-2271135-2	4-2271135-2
Description	M12.MALE PNL.B CODE.SOLDER REAR.4P.(AU)	M12.MALE PNL.B CODE.SOLDER REAR.5P.(AU)
Brand Name	TE Connectivity	TE Connectivity
Is it Rohs certified?	conform to	conform to
Objectid	8003308362	8003308437
Reach Compliance Code	compliant	compliant
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED
