3-2271139-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-2271139-2

Preview

3-2271139-2: DescriptionM12.FEMALE PNL.DCODE.SOLDER REAR.4P(AU); CategoryThe connector The connector; File Size157KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-2271139-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-2271139-2	-	-	View	Buy Now

3-2271139-2 Overview

M12.FEMALE PNL.DCODE.SOLDER REAR.4P(AU)

3-2271139-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	8003308366
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.37
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
Coupling type	THREADED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
MIL compliance	NO
Power Connector Ratings	4A
Mixed contacts	NO
Installation type	PANEL
Number of connectors	ONE
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization	D
polarization key	POLARIZED
Rated current (signal)	4 A
Shell surface	NICKEL
Shell material	ZINC ALLOY
Termination type	SOLDER
Total number of contacts	4
Maximum wire diameter	24 AWG

Preview

Download Datasheet

View All

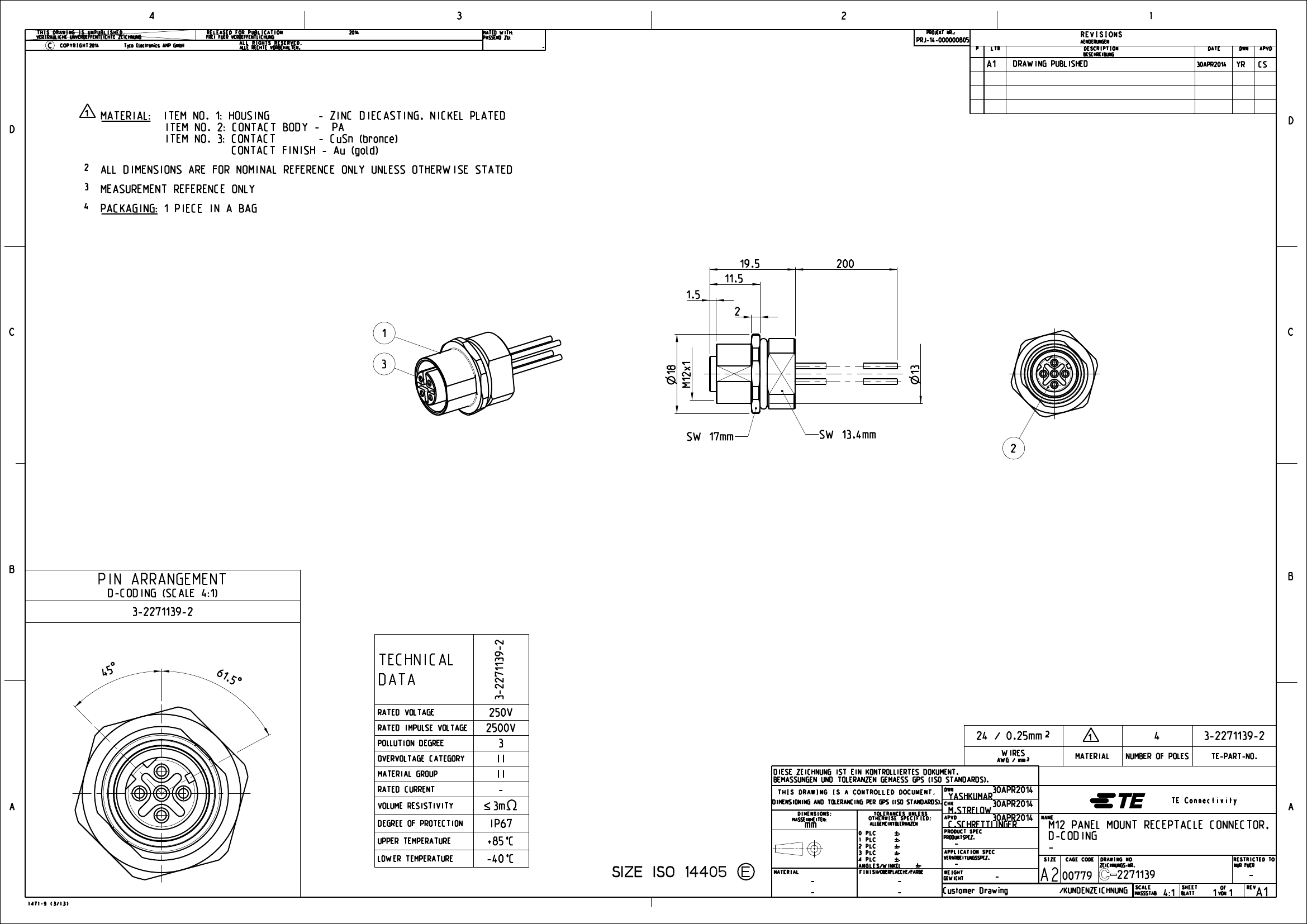

4

THIS DRAWING IS UNPUBLISHED.

VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG

3

2014

MATED WITH:

PASSEND ZU:

2

-

PRJ-14-000000805

PROJEKT NR.:

1

REVISIONS

P

LTR

AENDERUNGEN

DESCRIPTION

BESCHREIBUNG

DATE

DWN

APVD

C

COPYRIGHT

2014

RELEASED FOR PUBLICATION

FREI FUER VEROEFFENTLICHUNG

Tyco Electronics AMP GmbH

A1

DRAWING PUBLISHED

30APR2014

YR

CS

1

D

MATERIAL: ITEM NO. 1: HOUSING

- ZINC DIECASTING, NICKEL PLATED

ITEM NO. 2: CONTACT BODY - PA

ITEM NO. 3: CONTACT

- CuSn (bronce)

CONTACT FINISH - Au (gold)

ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED

MEASUREMENT REFERENCE ONLY

PACKAGING: 1 PIECE IN A BAG

D

2

3

4

1.5

C

19.5

11.5

2

200

1

M 12x1

3

18

13

C

SW 17mm

SW 13.4mm

2

B

PIN ARRANGEMENT

D-CODING (SCALE 4:1)

3-2271139-2

B

$

45

61

.5

$

TECHNICAL

DATA

RATED VOLTAGE

RATED IMPULSE VOLTAGE

POLLUTION DEGREE

OVERVOLTAGE CATEGORY

MATERIAL GROUP

RATED CURRENT

2500V

II

<3m ^

IP67

+85°C

-40°C

-

3

250V

24 / 0.25mm²

AWG / mm²

1

4

3-2271139-2

WIRES

MATERIAL

NUMBER OF POLES

TE-PART-NO.

DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.

BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONING AND TOLERANCING PER GPS

DIMENSIONS:

MASSEINHEITEN:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ALLGEMEINTOLERANZEN

DWN

A

VOLUME RESISTIVITY

DEGREE OF PROTECTION

UPPER TEMPERATURE

LOWER TEMPERATURE

mm

SIZE ISO 14405

MATERIAL

•

0 PLC

-

1 PLC

-

2 PLC

-

3 PLC

-

4 PLC

-

ANGLES

/WINKEL

PRODUCT SPEC

PRODUKTSPEZ.

30APR2014

YASHKUMAR

(ISO STANDARDS).

CHK

30APR2014

M.STRELOW

APVD

30APR2014

NAME

C.SCHRETTLINGER

M12

TE Connectivity

A

-

FINISH

/OBERFLAECHE/FARBE WEIGHT

GEWICHT

-

APPLICATION SPEC

VERARBEITUNGSSPEZ.

-

1471-9 (3/13)

-

Customer Drawing

A2

00779

SIZE

PANEL MOUNT RECEPTACLE CONNECTOR,

D-CODING

-

CAGE CODE DRAWING NO

ZEICHNUNGS-NR.

2271139

SCALE

RESTRICTED TO

NUR FUER

/

KUNDENZEICHNUNG

MASSSTAB

4:1

BLATT

SHEET

1

VON

1

OF

REV

-

A1
