5-1419124-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 5-1419124-5

5-1419124-5: DescriptionPower/Signal Relay, DPST, Momentary, 0.09A (Coil), 6VDC (Coil), 540mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size123KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1419124-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1419124-5	-	-	View	Buy Now

5-1419124-5 Overview

Power/Signal Relay, DPST, Momentary, 0.09A (Coil), 6VDC (Coil), 540mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

5-1419124-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	OSA-SS-206DM5,000
body width	12.9 mm
body height	24.8 mm
Body length or diameter	24.4 mm
Maximum coil current (DC)	0.09 A
Coil operating voltage (DC)	4.5 V
Coil power	540 mW
Coil release voltage (DC)	0.6 V
Coil resistance	68 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@30VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
physical size	24.4mm x 12.9mm x 24.8mm
Guideline	CSA; SEMKO; TUV; UL
Relay action	MOMENTARY
Relay function	DPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
surface mount	NO
Termination type	SOLDER

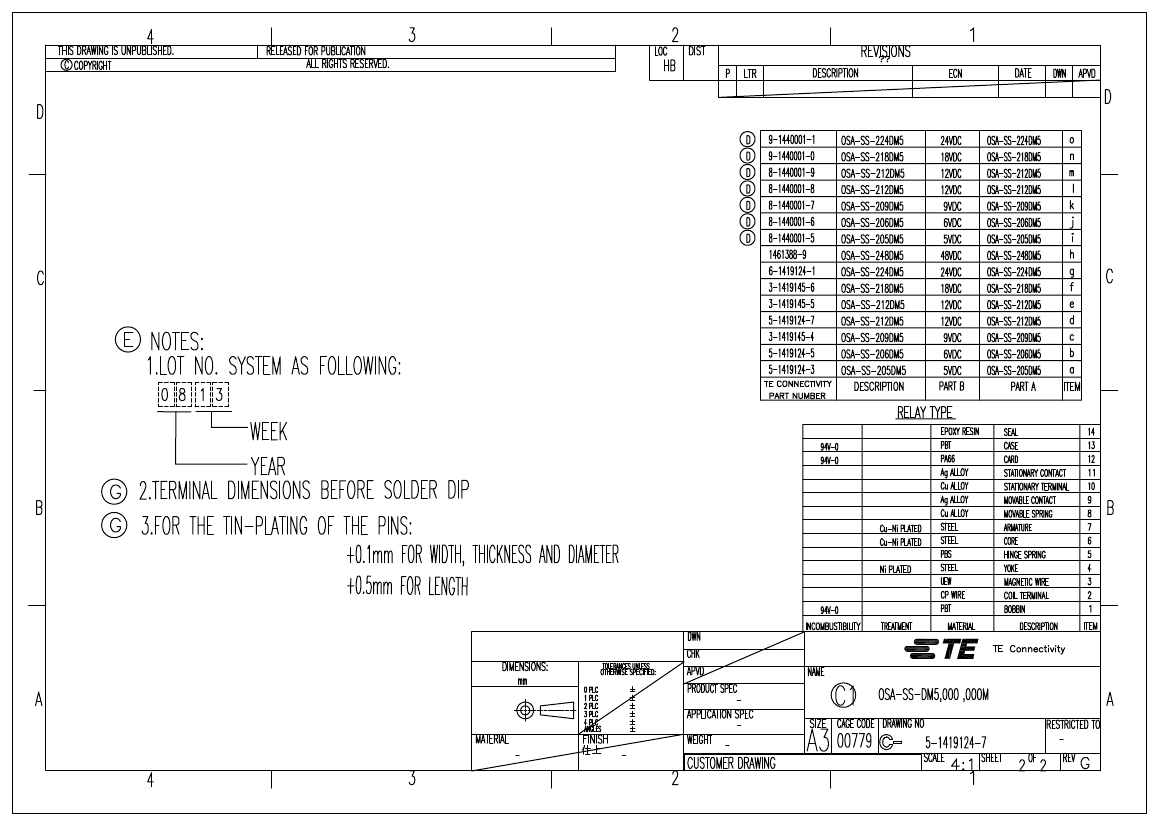

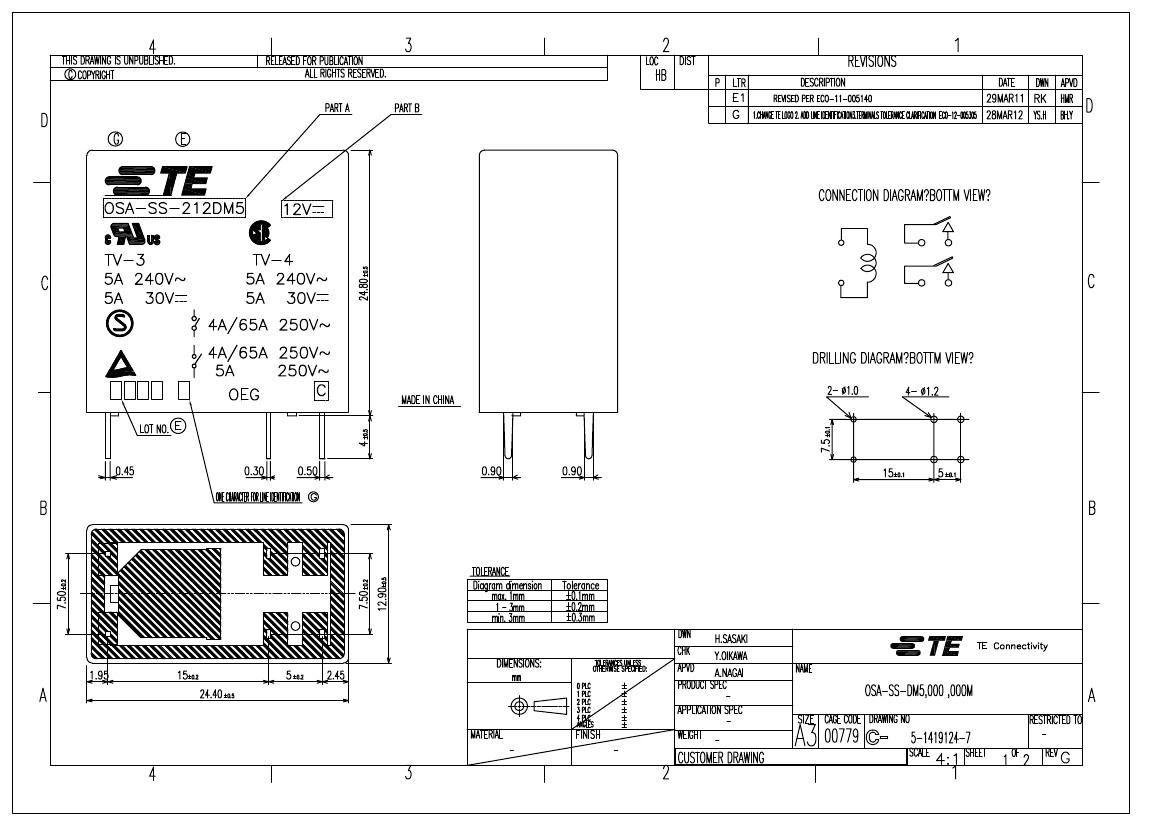

Preview

Download Datasheet

View All

5-1419124-5 Related Products

	5-1419124-5	OSA-SS-224DM5,000	OSA-SS-212DM5,000	OSA-SS-206DM5,000
Description	Power/Signal Relay, DPST, Momentary, 0.09A (Coil), 6VDC (Coil), 540mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	OSA-SS-224DM5,000	OSA-SS-212DM5,000	OSA-SS-206DM5,000
Power relay type	-	standard	standard	standard
Terminal limit breaking current (A)	-	5	5	5
Coil excitation system	-	Monostable, DC	Monostable, DC	Monostable, DC
Coil Power Rating Class (mW)	-	500 – 600	500 – 600	500 – 600
Coil Power Rating (DC) (mW)	-	540	540	540
Coil resistance (Ω)	-	1100	270	68
Coil characteristics	-	UL Coil Insulation Class A	UL Coil Insulation Class A	UL Coil Insulation Class A
Coil Voltage Rating (VDC)	-	24	12	6
Terminal switch load (minimum)	-	100mA @ 5V	100mA @ 5V	100mA @ 5V
Terminal switching voltage (max) (VAC)	-	240	240	240
Terminal switching voltage (max) (VDC)	-	30	30	30
Terminal Voltage Rating (VAC)	-	240	240	240
Insulation leakage between terminal and coil	-	7 mm [ .276 in ]	7 mm [ .276 in ]	7 mm [ .276 in ]
Insulation initial resistance (MΩ)	-	1000	1000	1000
Initial dielectric between terminal and coil (Vrms)	-	4000	4000	4000
Initial dielectric between adjacent terminals (Vrms)	-	2500	2500	2500
Insulation leakage type (mm)	-	5.5 – 8	5.5 – 8	5.5 – 8
Terminal limit continuous current (A)	-	5	5	5
Terminal limit short-time current (A)	-	5	5	5
Terminal limit closing current (A)	-	5	5	5
Open terminal insulation initial dielectric (Vrms)	-	1000	1000	1000
Coil/terminal insulation initial dielectric type (V)	-	3500 – 4000	3500 – 4000	3500 – 4000
product weight	-	13 g [ .459 oz ]	13 g [ .459 oz ]	13 g [ .459 oz ]
Insulating properties	-	7000 V initial surge withstand voltage between terminals and coil	7000 V initial surge withstand voltage between terminals and coil	7000 V initial surge withstand voltage between terminals and coil
Terminal arrangement	-	2 Form A (NO)	2 Form A (NO)	2 Form A (NO)
Terminal current type (A)	-	2 – 5, 16	2 – 5, 16	2 – 5, 16
Contact Current Rating (Max) (A)	-	5	5	5
Terminal material	-	AgNi90/10	AgNi90/10	AgSnO
Number of terminal poles	-	2	2	2
Terminal type	-	PCB-THT	PCB-THT	PCB-THT
Relay installation type	-	A printed circuit board	A printed circuit board	A printed circuit board
Product height	-	24.8 mm [ .976 in ]	24.8 mm [ .976 in ]	24.8 mm [ .976 in ]
Product length	-	24.4 mm [ .961 in ]	24.4 mm [ .961 in ]	24.4 mm [ .961 in ]
Product width	-	12.9 mm [ .508 in ]	12.9 mm [ .508 in ]	12.9 mm [ .508 in ]
Width type (mechanical) (mm)	-	12 – 16	12 – 16	12 – 16
Insulation gap between terminal and coil	-	7 mm [ .276 in ]	7 mm [ .276 in ]	7 mm [ .276 in ]
Height type (mechanical) (mm)	-	20 – 25	20 – 25	20 – 25
Insulation gap type (mm)	-	5 – 8	5 – 8	5 – 8
Length type (mechanical) (mm)	-	20 – 25	20 – 25	20 – 25
Environmental Protection Category	-	RTII	RTII	RTII
Ambient temperature (maximum)	-	60 °C [ 140 °F ]	60 °C [ 140 °F ]	60 °C [ 140 °F ]
Ambient temperature category (°C)	-	50 – 70	50 – 70	50 – 70
Encapsulation method	-	Box & Carton	Box & Carton	Box & Carton
