5-2138895-2

Description
RF CONNECTOR
CategoryThe connector    The connector
File Size138KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

5-2138895-2 Overview

RF CONNECTOR

5-2138895-2 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeRF CONNECTOR
Manufacturer's serial number2138895
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Product Feature Selector > Product Details

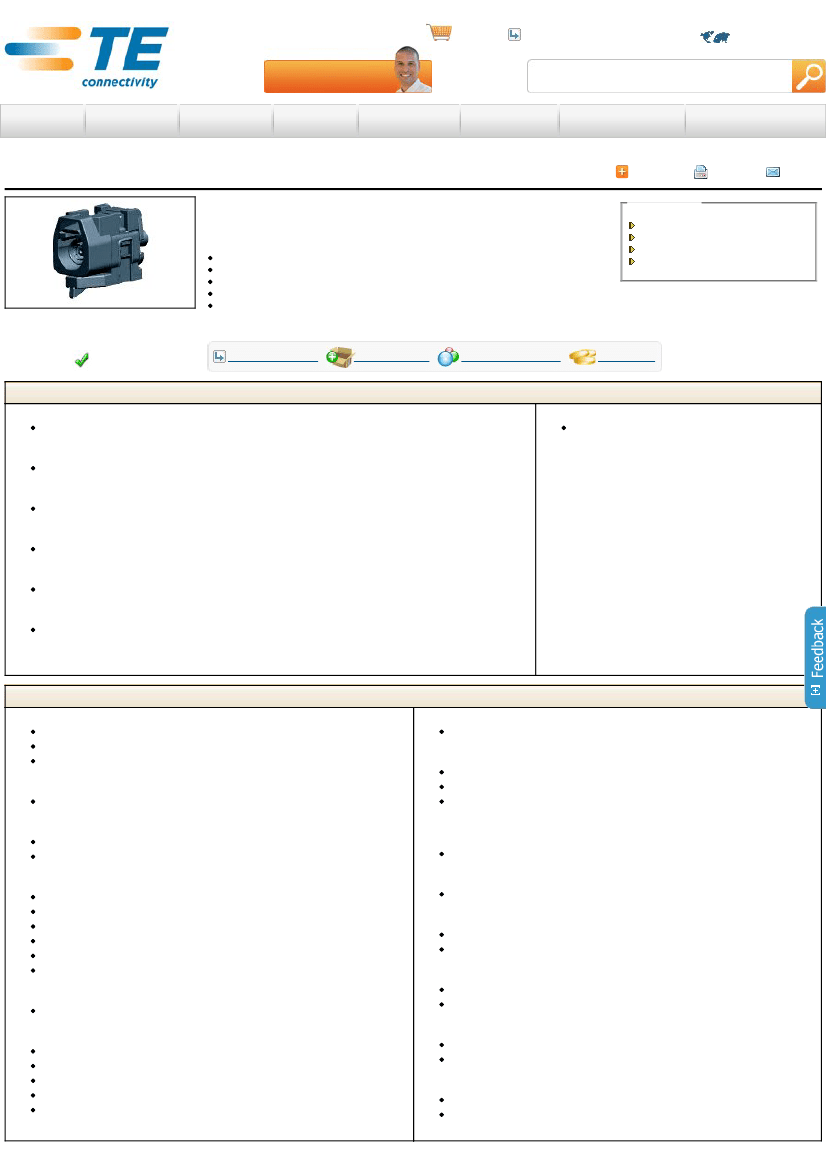

5­2138895­2 Product Details
FAKRA II and FAKRA IV RF Connector Systems
Not reviewed for RoHS Compliance
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
FAKRA SMB Industry Standard
Applies To Wire/Cable
Cable­to­Cable
Connector ­ RF
Housing Kit
5­2138895­2

TE Internal Number: 5­2138895­2
View all Features
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
PLUG KIT, UNASSEMBLED, 1 POSITION, RG­316 OR RG­174,... (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector ­ RF
Connector Type = Housing Kit
Sealed = No
Mechanical Attachment:
Mating Retention Type = Latching
Dimensions:
Length (X­Axis) (mm [in]) = 26.75 [1.0531]
Width (Z­Axis) (mm [in]) = 12.13 [0.479]
Body Features:
Body Shape = Straight
Mounting Feature = With
Mounting Feature Type = Body Clip Slot
Cable Exit Type = 180°
Ferrule Type = Straight
Mating Retention = With
Contact Features:
Contact Type = Socket
Housing Features:
Connector Style = Plug
Housing Color = Signal White
Housing Material = PBT ­ GF
Mating Alignment = With
Mating Alignment Type = Keyed
Configuration Features:
Number of Positions = 1
Industry Standards:
Industry Standard = FAKRA SMB
RoHS/ELV Compliance = Not reviewed for ELV/RoHS compliance
Lead Free Solder Processes = Not reviewed for lead free solder
process
Identification Marking:
Key Identifier = B
Environmental:
Operating Temperature (Max.) (°C) = ­40 – +100
Conditions for Usage:
Applies To = Wire/Cable
Mates With = Jack Housing
Operation/Application:
Application Use = Cable­to­Cable
Industry Application = Automotive
Packaging Features:
Packaging Quantity = 1,000
Packaging Method = Package
Other:
Industry = Automotive
Brand = TE Connectivity
