5-2271129-2

Description
M12.FEMALE.ACODE.R/A.8P.PG9.SHIELDED(AU)
CategoryThe connector    The connector
File Size335KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5-2271129-2 Online Shopping

Suppliers Part Number Price MOQ In stock
5-2271129-2 - - View Buy Now

5-2271129-2 Overview

M12.FEMALE.ACODE.R/A.8P.PG9.SHIELDED(AU)

5-2271129-2 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
4
THIS DRAWING IS UNPUBLISHED.
VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG
3
2014
MATED WITH:
PASSEND ZU:
2
-
PRJ-14-000000805
PROJEKT NR.:
1
REVISIONS
P
LTR
AENDERUNGEN
DESCRIPTION
BESCHREIBUNG
DATE
DWN
APVD
C
COPYRIGHT
2014
RELEASED FOR PUBLICATION
FREI FUER VEROEFFENTLICHUNG
ALL RIGHTS RESERVED.
Tyco Electronics AMP GmbH
ALLE RECHTE VORBEHALTEN.
A2
DESCRIPTION CORRECTED FROM SOLDER TO SCREW TERMINAL IN TITLE BLOCK
13NOV2014
CR
JK
D
1
MATERIAL: ITEM NO. 1: HOUSING
ITEM NO. 2: CONTACT BODY
ITEM NO. 3: CONTACT FINISH
CONTACT
CONTACT
- CuZn (brass)
- CuSn (bronze)
ZINC DIECASTING, NICKEL PLATED
- PA
- Au (gold)
CABLE
n -8
5
-
D
2
3
4
5
6
ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED
MEASUREMENT REFERENCE ONLY
PACKAGING: 1 PIECE IN A BAG
3-2271129-2
4-2271129-2
5-2271129-2
6-2271129-2
TECHNICAL
DATA
RATED VOLTAGE
RATED IMPULSE VOLTAGE
POLLUTION DEGREE
OVERVOLTAGE CATEGORY
MATERIAL GROUP
RATED CURRENT
VOLUME RESISTIVITY
DEGREE OF PROTECTION
UPPER TEMPERATURE
III
<3m ^
IP67
+85°C
-40°C
4A
II
3
III
<3m ^
IP67
+85°C
-40°C
4A
II
3
III
<3m ^
IP67
+85°C
-40°C
2A
II
3
III
<3m ^
IP67
+85°C
-40°C
2A
II
3
2
SW 18mm
~37
20
3
B
LOWER TEMPERATURE
M 12x1
2500V
250V
1500V
125V
800V
60V
500V
30V
1
~64
C
C
B
AS
4--2
SHOWN
WIE GEZEICHNET
PIN ARRANGEMENT
A-CODING (SCALE 2:1)
3-2271129-2
$
45
A
6-8
5-8
6-2271129-2
45
24 / 0.25mm²
20 / 0.50mm²
18 / 0.75mm²
18 / 0.75mm²
AWG / mm²
1
1
1
1
3
2
2
2
12
8
5
4
6-2271129-2
5-2271129-2
4-2271129-2
3-2271129-2
4-2271129-2
$
45
5-2271129-2
45
5-8
5-8
mm
$
$
CABLE FEED-THROUGH
DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.
BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONING AND TOLERANCING PER GPS
DIMENSIONS:
MASSEINHEITEN:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
ALLGEMEINTOLERANZEN
DWN
WIRES
MATERIAL
NUMBER OF POLES
TE-PART-NO.
mm
SIZE ISO 14405
1471-9 (3/13)
MATERIAL
0 PLC
-
1 PLC
-
2 PLC
-
3 PLC
-
4 PLC
-
ANGLES
/WINKEL
PRODUCT SPEC
PRODUKTSPEZ.
19MAY2014
YASHKUMAR
(ISO STANDARDS).
CHK
19MAY2014
M.STRELOW
APVD
19MAY2014
NAME
C.SCHRETTLINGER
M12
TE Connectivity
A
-
-
FINISH
/OBERFLAECHE/FARBE
-
APPLICATION SPEC
VERARBEITUNGSSPEZ.
108-19483
-
-
114-32127
WEIGHT
-
GEWICHT
Customer Drawing
A2
00779
SIZE

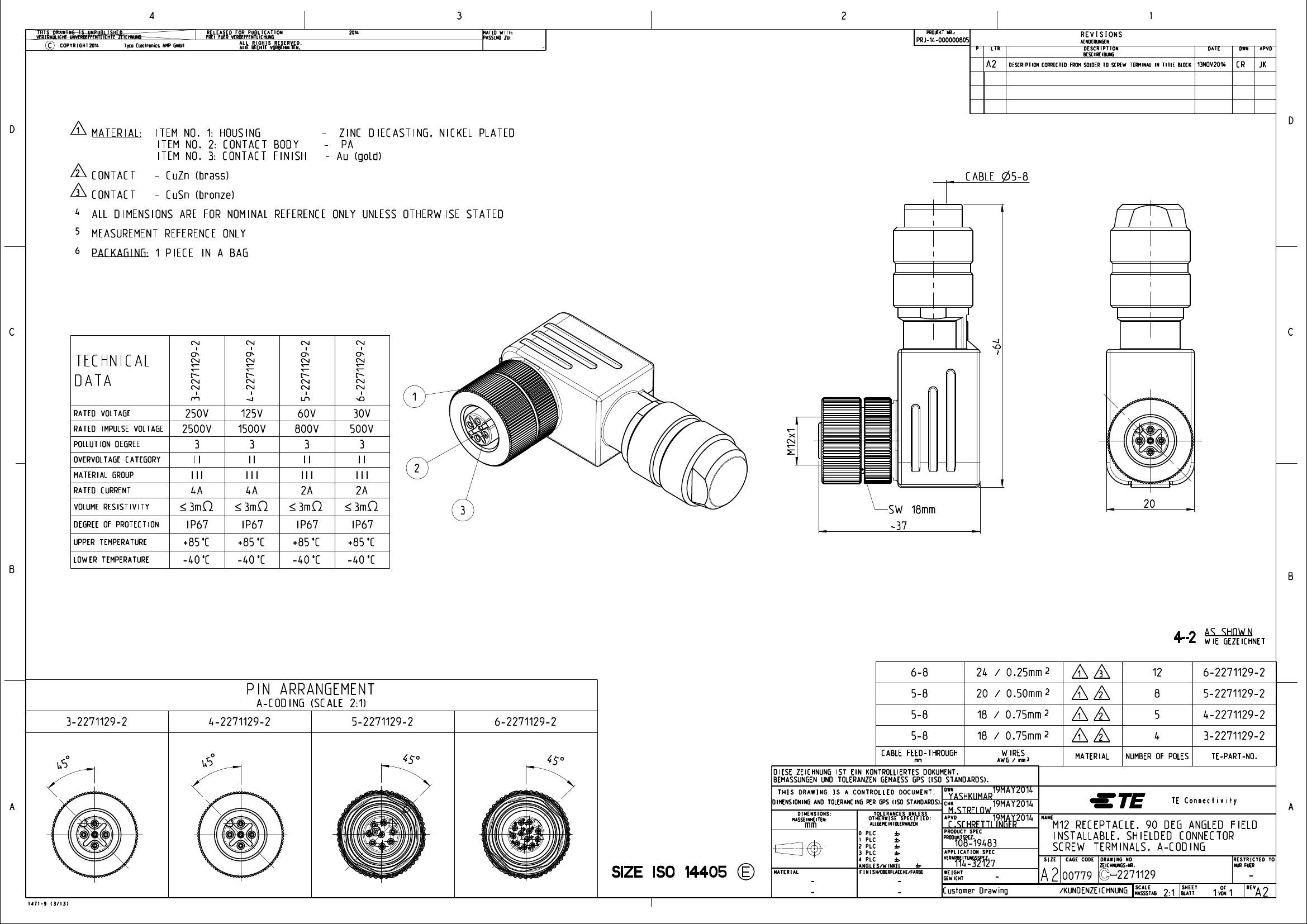

RECEPTACLE, 90 DEG ANGLED FIELD
INSTALLABLE, SHIELDED CONNECTOR
SCREW TERMINALS, A-CODING
CAGE CODE DRAWING NO
ZEICHNUNGS-NR.
2271129
SCALE
RESTRICTED TO
NUR FUER
/
KUNDENZEICHNUNG
MASSSTAB
2:1
BLATT
SHEET
1
VON
1
OF
REV
-
A2
