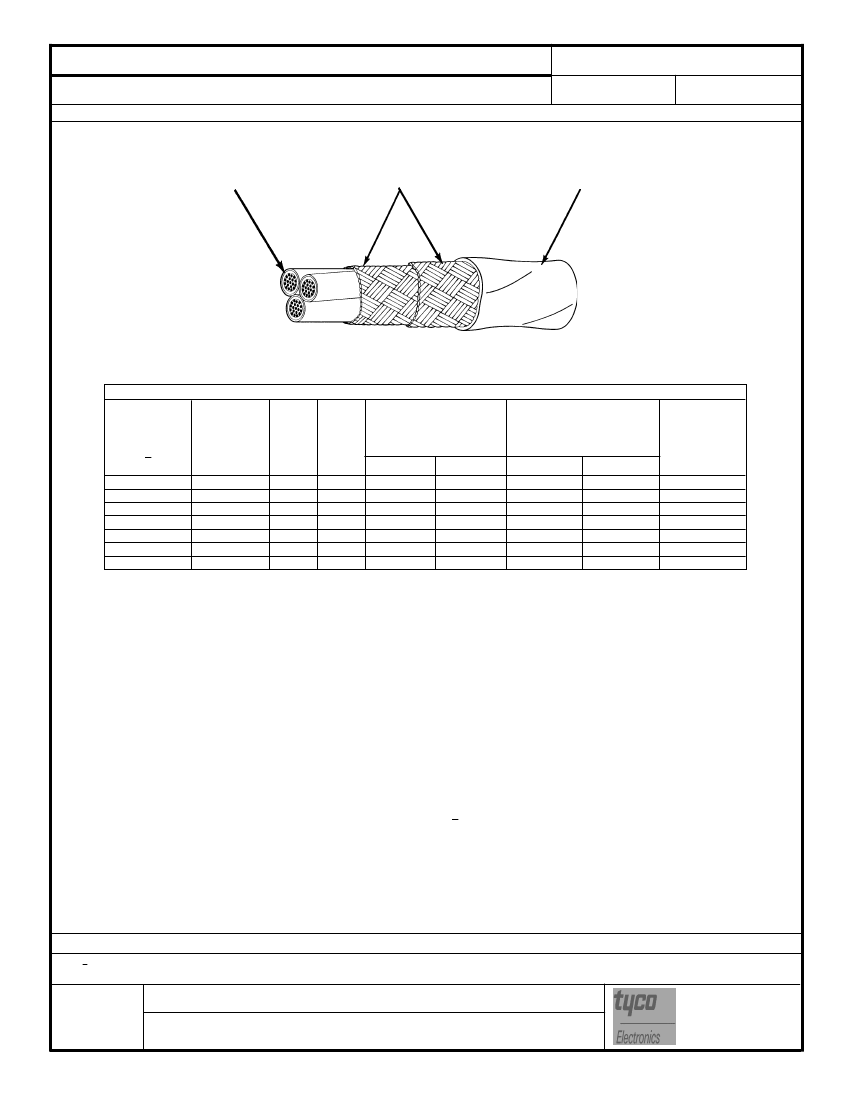

SPECIFICATION CONTROL DRAWING
TITLE
55A6605
C
Date
Revision
THREE CONDUCTOR CABLE, DOUBLE SHIELDED, JACKETED,
2-16-05
GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55A and MIL-DTL-27500 as applicable.
COMPONENT WIRES - 55A0811
SHIELDS - TIN-COATED COPPER
JACKET - RADIATION-CROSSLINKED
MODIFIED ETFE
CABLE CONSTRUCTION DETAILS
2nd
1st
CONDUCTOR
SHIELD SHIELD
SIZE
PART NUMBER
SIZE
SIZE
(AWG)
1/
(AWG) (AWG)
55A6605-22-*
55A6605-20-*
55A6605-18-*
55A6605-16-*
55A6605-14-*
55A6605-12-*
55A6605-10-*
22
20
18
16
14
12
10
38
38
38
38
38
38
36
38
38
38
38
38
36
36
JACKET THICKNESS
(inches)
MINIMUM
.005
.006
.006
.006
.007
.007
.008
MAXIMUM
.010
.011
.011
.011
.012
.013
.014
OUTSIDE DIAMETER
( inches)
NOMINAL
.160
.175
.201
.216
.255
.296
.351
MAXIMUM
.168
.184
.211
.227
.268
.311
.369
MAXIMUM
WEIGHT
( lb/1000 ft.)
25.8
31.9
42.7
50.0
69.8
98.5
147.
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
BLOCKING: 200 ± 3°C for 6 hours
CROSSLINKED VERIFICATION: 300 ± 5°C for 6 hours
DIELECTRIC WITHSTAND:
1500 volts (rms), 60 Hz conductor to conductor and shield
FLAMMABILITY:
Procedure 1, 3 seconds (maximum); 3 in. (maximum);
no flaming of facial tissue
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 50% (minimum)
Tensile Strength, 5000 lbf/in
2
(minimum)
JACKET FLAWS:
Spark Test, 1500 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
LOW TEMPERATURE-COLD BEND: -55 ± 5°C for 4 hours
SHIELD COVERAGE: 85% (minimum) (each)
VOLTAGE WITHSTAND TEST (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The "*" in the part numbers above shall be replaced by a color
code designator with a slash separating the component wire
colors and a dash separating the component wire colors from
the jacket color. Colors shown do not necessarily reflect the
sequence of manufacturing.
1/ Example: AWG 22, black, brown and red component wires;
white jacket; 55A6605-22-0/1/2-9
This cable shall meet all constructional requirements of M27500 (AWGSD3V23).
NOTE: Nominal values are for information only.
Nominal values are not requirements.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
R
Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
Page 1 of 1
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
© 2005 Tyco Electronics Corporation. All rights reserved.
