55D0111-20-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 55D0111-20-9

55D0111-20-9: DescriptionWire And Cable, 1 Conductor(s), 20AWG, 600V, Flexible Cord And Fixture Wire; CategoryThe connector Connector bracket; File Size45KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

55D0111-20-9 Overview

Wire And Cable, 1 Conductor(s), 20AWG, 600V, Flexible Cord And Fixture Wire

55D0111-20-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Conductor surface treatment	TIN
conductor material	COPPER
Connector bracket type	WIRE AND CABLE
structure	STRANDED
diameter	1.3 mm
insulator material	RADIATION-CROSSLINKED MODIFIED ETFE
Number of conductors	1
Maximum operating temperature	135 °C
Rated voltage	600 V
resistance	0.033 Ω
shield	NO
stay	19X0.2
Wire gauge	20 AWG
Wire and Cable Names	FLEXIBLE CORD AND FIXTURE WIRE

Preview

Download Datasheet

View All

55D011Y

Issue 4

29th November 2010

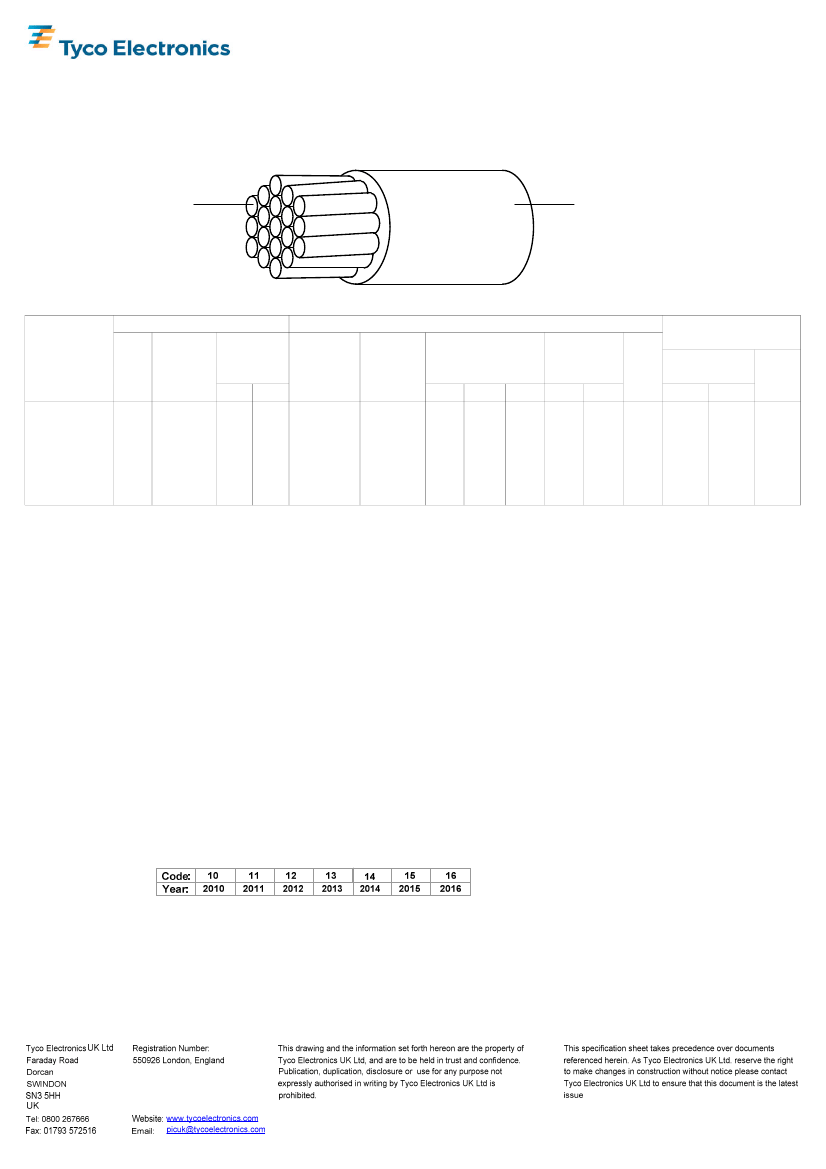

Specification Control Drawing

Page 1 of 2

Page 2 is for internal use only

WIRE, MODIFIED FLUOROPOLYMER INSULATED, 600 VOLT, 135°C, LIGHTWEIGHT

The complete requirements for procuring the wire described herein shall consist of this document.

Conductor -

Tin Plated Copper

Insulation -

Radiation Crosslinked

Modified ETFE

C11

C14

C16

C17

C18 C20

C19

Def Stan 61-12(Part 33)

Conductor

Finished Wire

Part

Wire Stranding Diameter

Maximum Minimum

Outside

Description

Size No./Diam.

(mm)

Resistance Total Wall

Diameter

Code

(mm)

@ 20°C Thickness

(mm)

Min. Max. (ohms/km)

(mm)

Min. Target Max.

55D0111-22-* 004

19/0.15 0.70 0.73

0.98 1.02 1.06

60.0

0.13

55D0111-20-* 006

19/0.20 0.94 0.98

1.21 1.25 1.30

33.2

0.13

55D0111-18-* 010

19/0.25 1.18 1.21

1.44 1.50 1.57

21.0

0.13

55D0111-16-* 012

19/0.29 1.34 1.37

1.62 1.67 1.72

15.3

0.13

55D0111-14-* 020

37/0.25 1.68 1.71

1.94 2.01 2.08

10.5

0.13

6.70

0.13

55D0111-12-* 030

37/0.32 2.12 2.18

2.39 2.48 2.56

NOTE: For sizes 001 and 002 (size 26 and 24) use 55D011X SCD.

Weight

(kg/km)

Target

3.66

6.20

8.78

11.78

17.28

26.88

Max.

3.82

6.47

9.43

12.24

18.31

27.78

NSN

Supplement 001 Table 4

6145-

Weight

99-

(mm)

(kg/km)

038-

Min.

Max.

3954

0.98

1.08

3.98

3955

1.19

1.35

6.54

3956

1.44

1.59

9.81

3957

1.56

1.82

13.27

3958

1.93

2.29

19.57

3959

2.37

2.74

29.73

COLOUR CODE:

NOTE:

The "*" in the part description is replaced by standard colour code designator in accordance

with Mil Std 681 or code 2L which shall be a good match to Munsell 2.5R 6.9 to 7.4,

Federal Standard 595B - 31638 to 31668 or RAL 3015.

e.g. 55D0111-22-9 White jacket

Nato Stock Numbers (NSN) apply to white wire only.

PERFORMANCE To be tested to and meet the requirements of the issue in effect of Def Stan 61-12(Part 33)

REQUIREMENTS: and Supplement 001, Table 4.

MARKING

REQUIREMENT:

Every 400 ± 100 mm.

Mark shall be, e.g. 55D0111-XX DSP33/001-1T-YYY-1U-*-GB-SS-V

Where: "XX" = AWG size from part description.

"YYY" = Wire Size Code.

NOTE:

Colour code designator '*' is NOT required for white wire.

and

"V" = the Year Code in accordance with the table below

Information:

No Armament equivalent for finished goods.

NB: 2L colour coded wire used for Armament component only.

APPROVAL:

Electronic approval - no signatures will appear.
