8-1393485-4 datasheet, PDF - EEWORLD Datasheet

8-1393485-4: DescriptionCONNECTOR,D-SHELL,CABLE MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .112-.124; CategoryThe connector The connector; File Size137KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

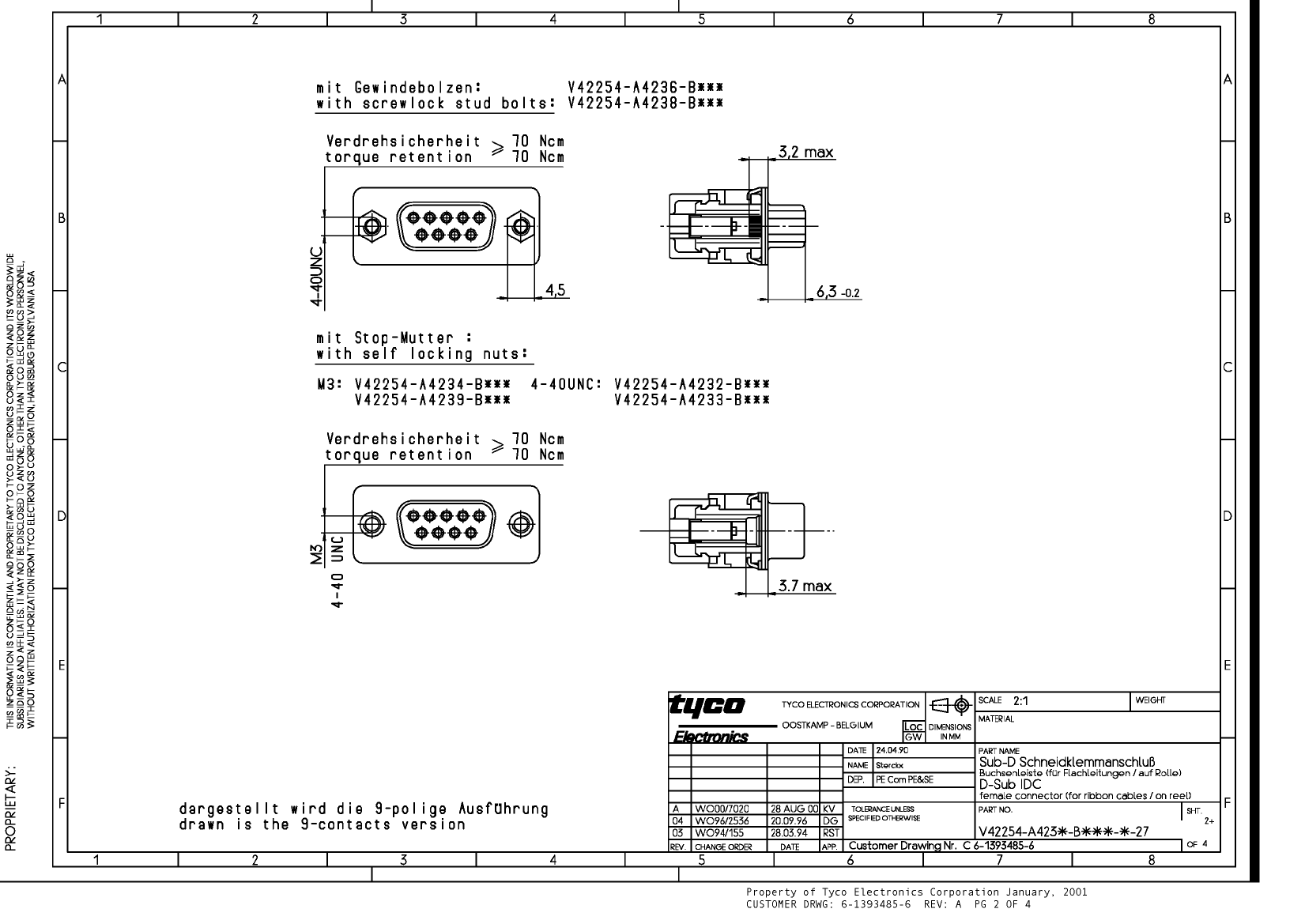

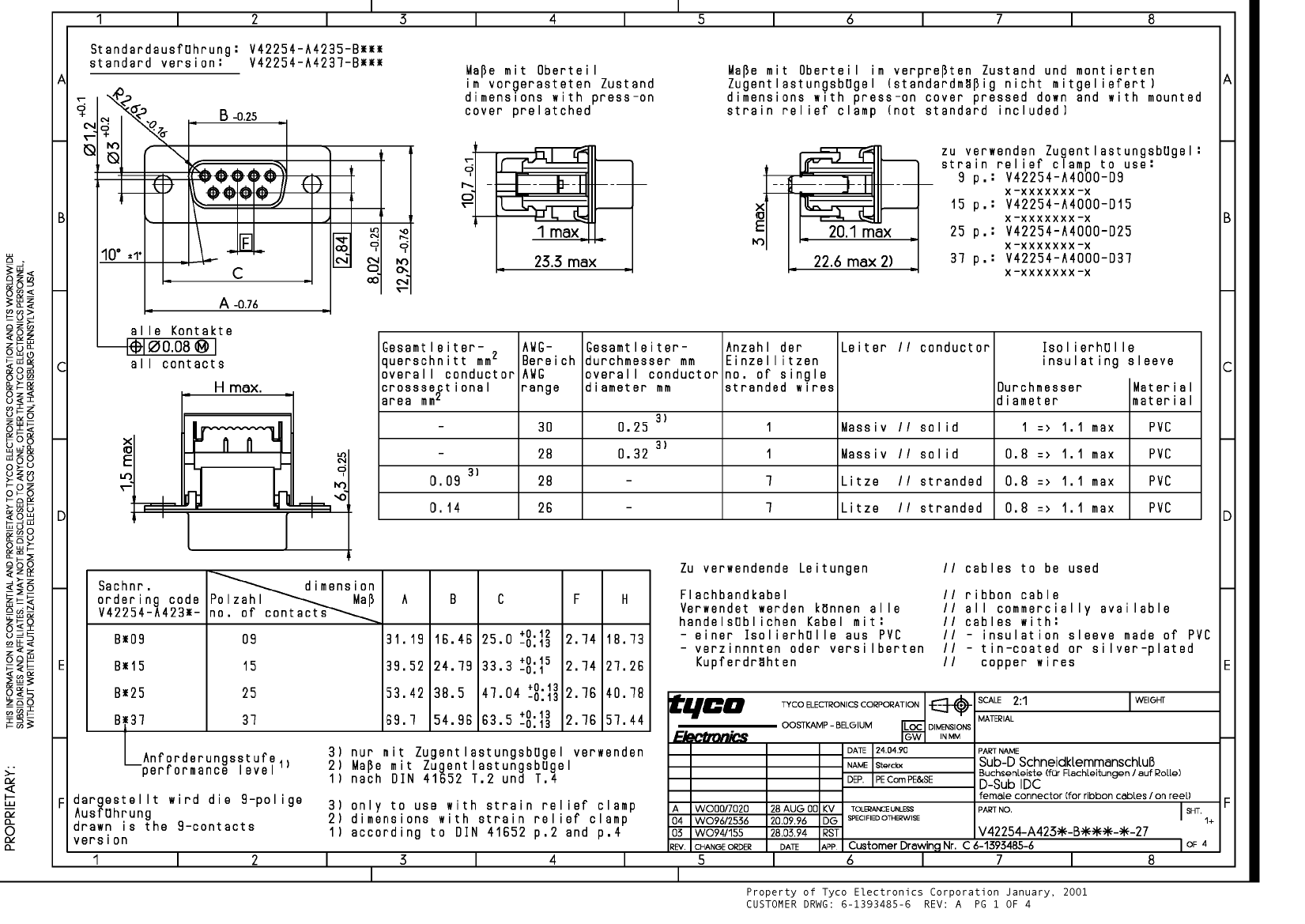

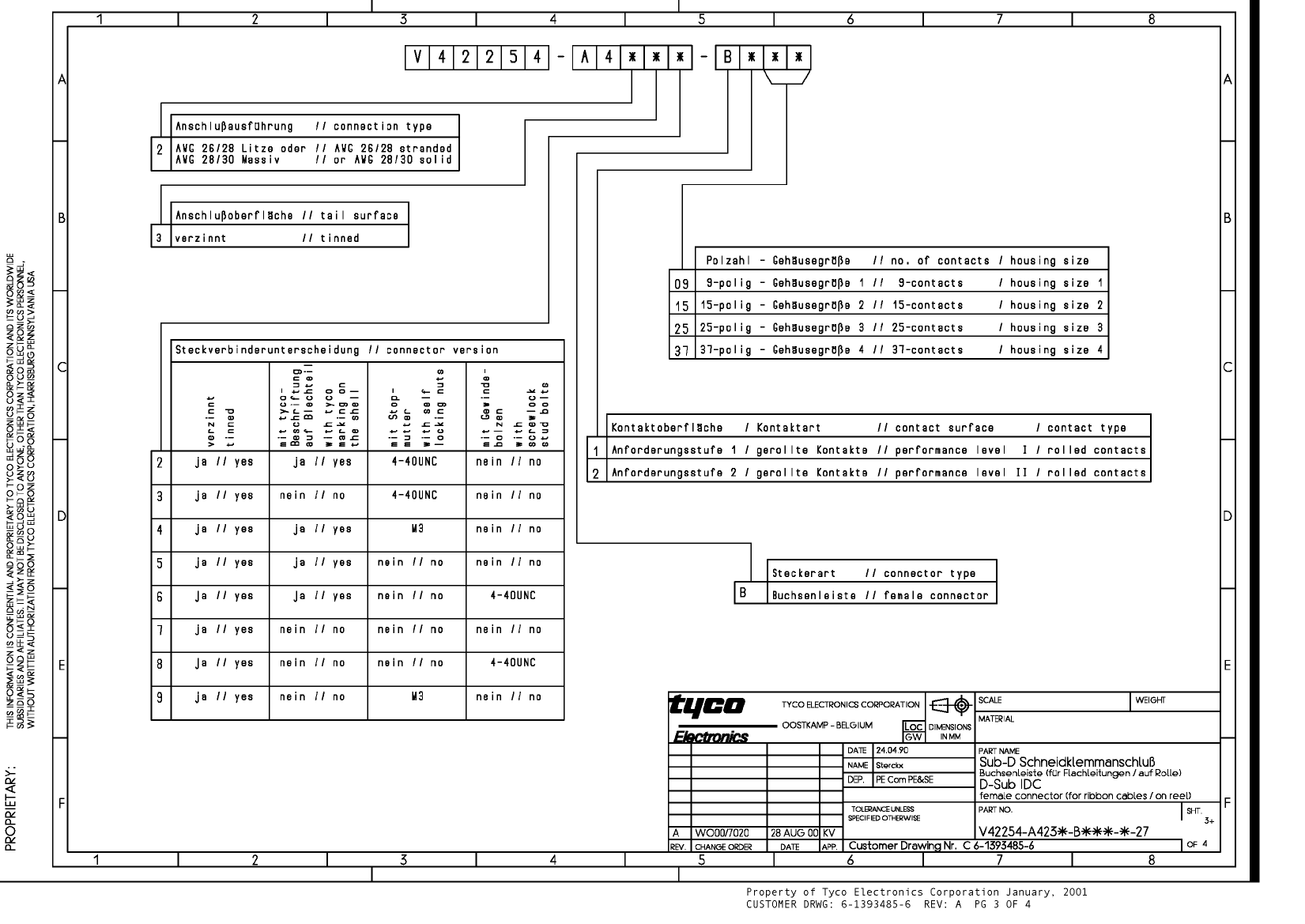

8-1393485-4 Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .112-.124

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304079765
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.509 inch
subject depth	0.669 inch
body length	2.103 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	25
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

	8-1393485-4	7-1393485-8
Description	CONNECTOR,D-SHELL,CABLE MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .112-.124	CONNECTOR,D-SHELL,CABLE MNT,PLUG,37 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .112-.124
Is it Rohs certified?	conform to	conform to
Objectid	304079765	304079763
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body width	0.509 inch	0.509 inch
subject depth	0.669 inch	0.669 inch
body length	2.103 inch	2.744 inch
Body/casing type	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact completed and terminated	TIN	TIN
Contact point gender	FEMALE	FEMALE
contact mode	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT
Plug contact pitch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC
Total number of contacts	25	37
Maximum wire diameter	26 AWG	26 AWG
Minimum wire diameter	28 AWG	26 AWG
