3M
™

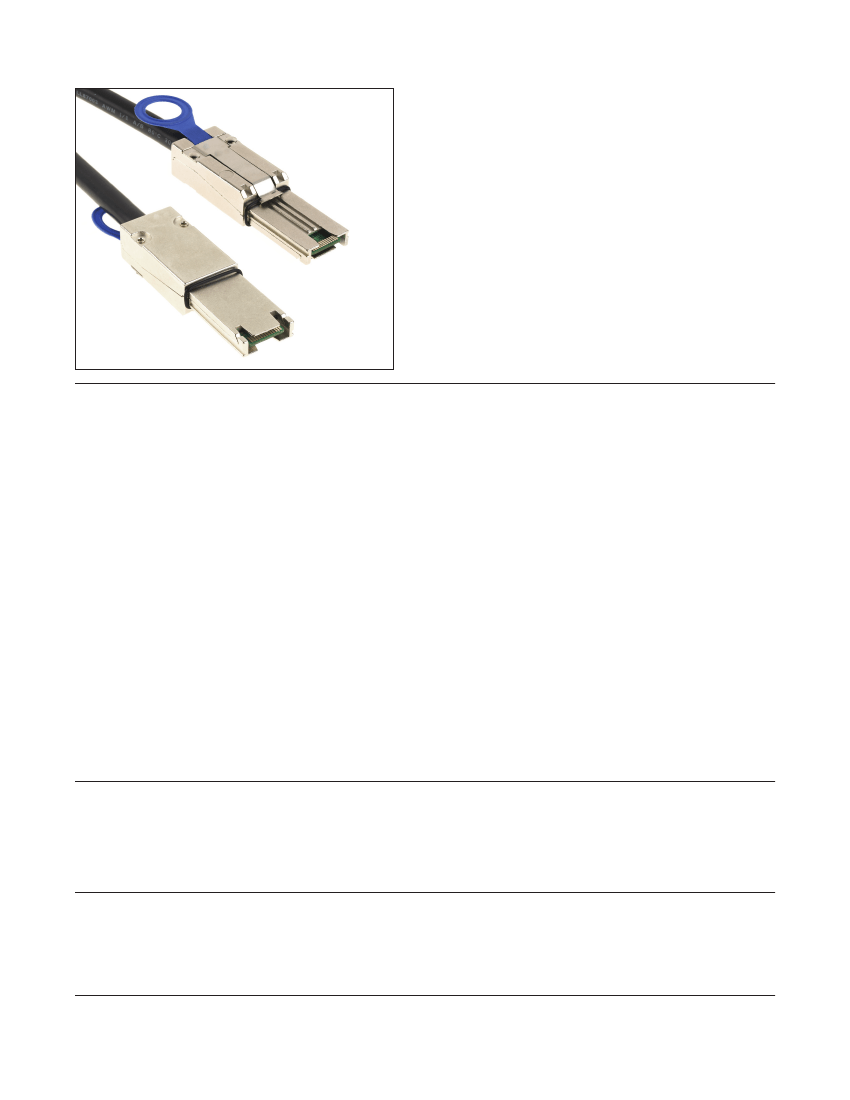

Mini Serial Attached SCSI (miniSAS) Cable Assembly
External, Signal, Straight Termination
•
•
•
•
•
•
•
•
•
8M26 Series
Capable of 6 Gbps per channel data rate
26 conductor signal assembly
Multiple lengths available
Metal latch designed to promote retention
Pull tab ring provides easier unmating
Two levels of EMLB for hot plugging
Multiple key options available
Tested to SAS Specification, SAS-2
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: February 26, 2008
TS-2212-B
Sheet 1 of 4
Physical
Backshell:
Material: Zinc Diecast
Plating: 30 μ” min. [ 0.76 μm ] Nickel
Contact:
PCB Material: FR4
Underplating: 50 μ” min. [ 1.27 μm ] Nickel
Wiping Area: 30 μ” min. [ 0.76 μm ] Gold
Cable:
Conductor: Tin Plated Solid Conductor (AWG depends on length)
Drain Wire: Tin Plated Solid Conductor
Dielectric: Foam Polyethylene
Shield: Mylar
Jacket: Non-PVC
Pulltab:
Material: Nylon
Color: Blue
Electrical
Current Rating:
Per Contact: 0.5 A
Insulation Resistance:
10
3
MΩ min.
Withstanding Voltage:
300 V
DC
min. for 1 minute
Environmental
Operating Temperature:
-20°C to +75°C
UL File No.: E86982
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373

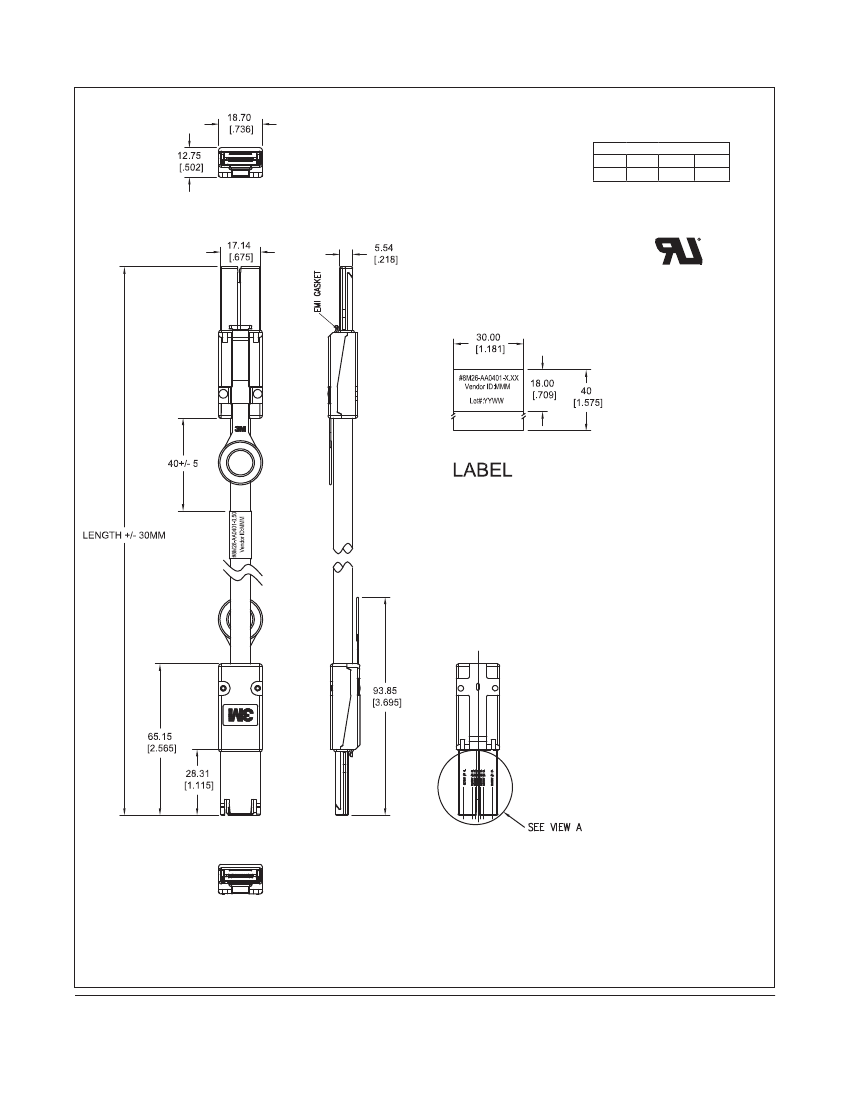

3M
™
Mini Serial Attached SCSI (miniSAS) Cable Assembly
External, Signal, Straight Termination
Pinout
8M26 Series
P1
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
P2
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
P1
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
P2
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
Ordering Information
8M26 - AA04XX - X.XX
Keying options:
01 = Both ends: keys 2, 4, 6
02 = P1: keys 2, 4; P2: keys 4, 6
1
(RIA E1 & C1 Apply)
Length in meters:
0.25 m
0.50 m
1.00 m
2.00 m
3.00 m
4.00 m
2
1 If other keying options are desired, contact your local 3M sales representative.
2 If other lengths are desired, contact your local 3M sales representative.
TS-2212-B
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
