41504029002

Description
Power Relay 415
File Size131KB,2 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet View All

41504029002 Overview

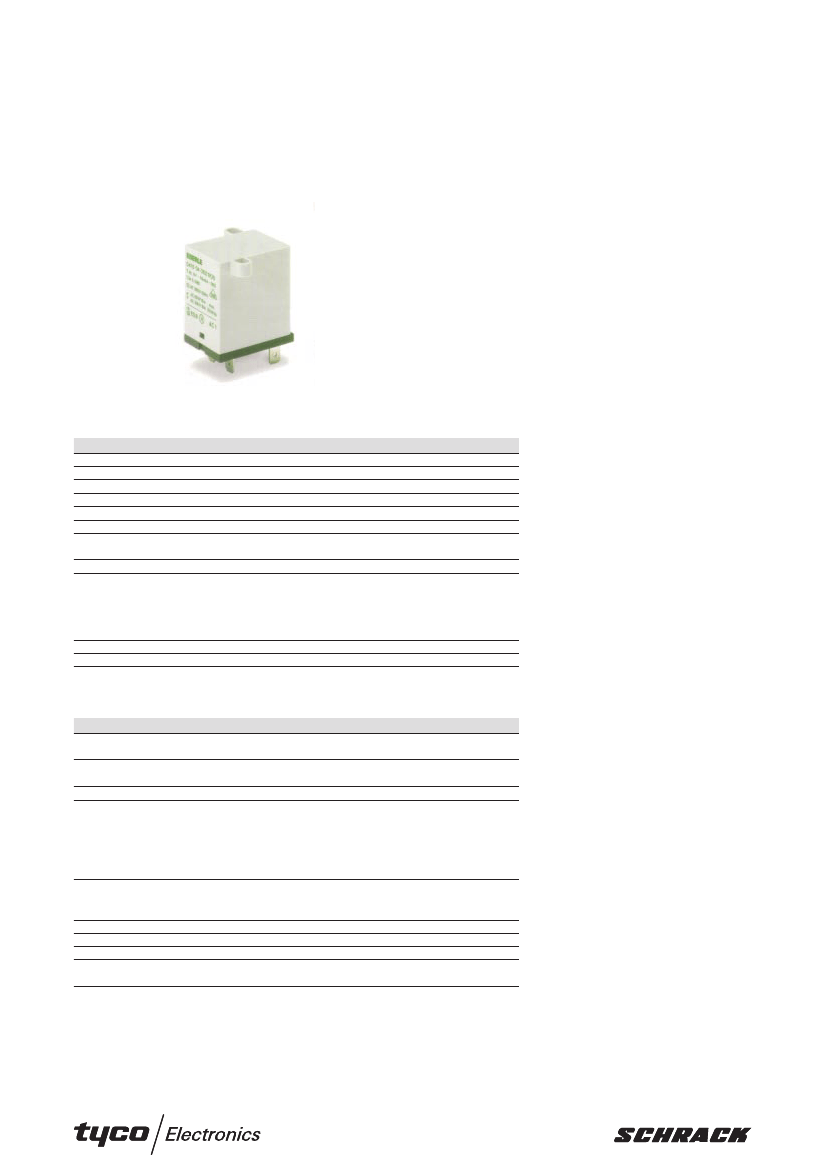

Power Relay 415

Power Relay 415
2 pole 16 A
Features
·
·
·
·
2 N/O contacts, 16 A
Fast-on connectors 6.3 x 0.8 mm
Contact gap > 3 mm
4 kV / 8 mm coil-contact
Applications
Power Supplies, domestic appliances, heating controls
V KSND
Contact data
Configuration
Type of contact
Rated current
Rated voltage / max.breaking voltage AC
Max. breaking voltage DC
Maximum breaking capacity AC
Make current (max. 4 s at duty cycle 10%)
Peak inrush current 20 msw
Contact material
2 N/O contacts
single contact
16 A
250 Vac / 440 Vac
250 Vdc
4000 VA
25 A
25 A
AgCdO
Contact ratings
Type
Load
41501 / 04
16 A, 250 Vac, cosj=1
Operations
1x10
5
Coil data
Nominal voltage
Nominal coil power
Operate category
DC coil
AC coil
DC coil
AC coil
12...220 Vdc
24...380 Vdc
1.3 W
2.8 VA
1/b

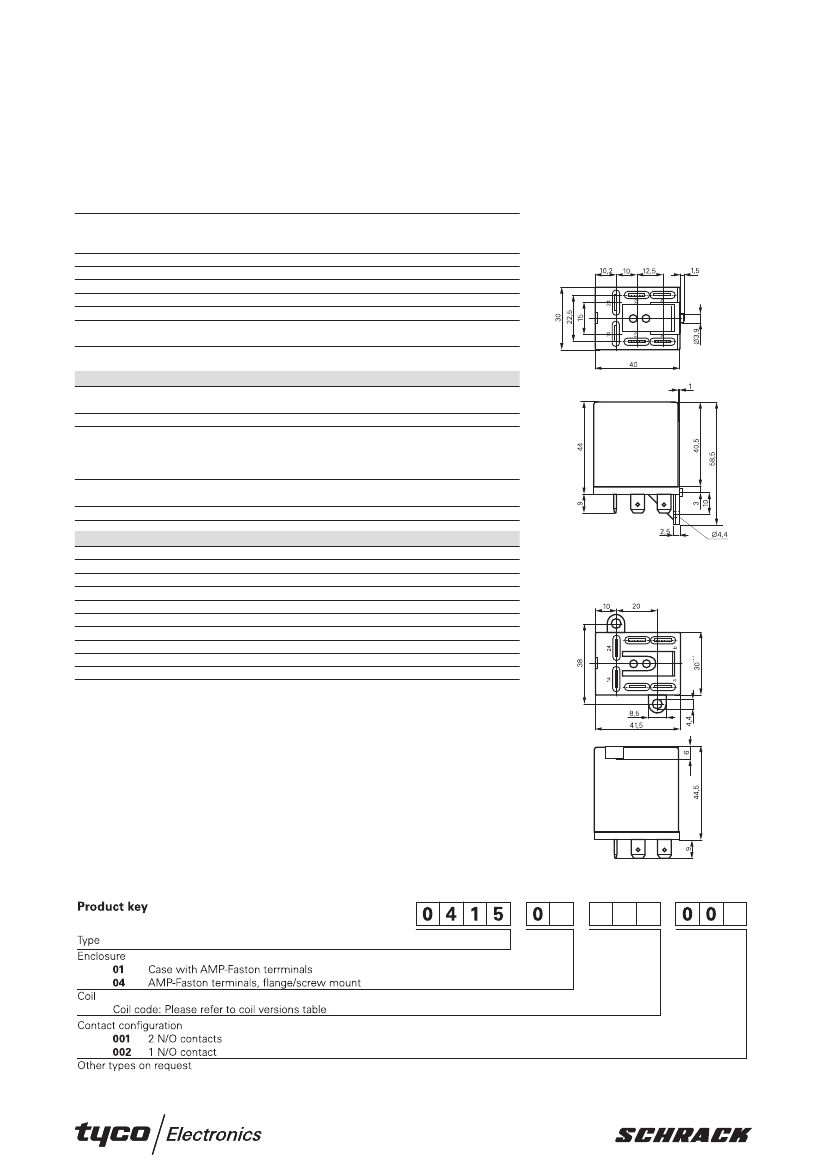

Coil versions DC-coil
Coil
Nominal
Pull-in
Release
Maximum
Coil
Coil
code
voltage
voltage
voltage
voltage
resistance
current
Vdc
Vdc
Vdc
Vdc
c
mA
031
12
7.0
0.9
14.5
125+10%
96.0
029
24
14.0
1.8
39.0
435+10%
55.2
025
220
130.0
11.0
323.0
32800+15%
6.7
All figures are given for coil without preenergization, at ambient temperature +20°C
Other coil voltages on request
Edition: 10/2002
