Halogen and Antimony Free. “Green” Device (Note 3)
An Automotive-Compliant Part is Available Under Separate
Datasheet (ZXMS6005DGQ)
Description

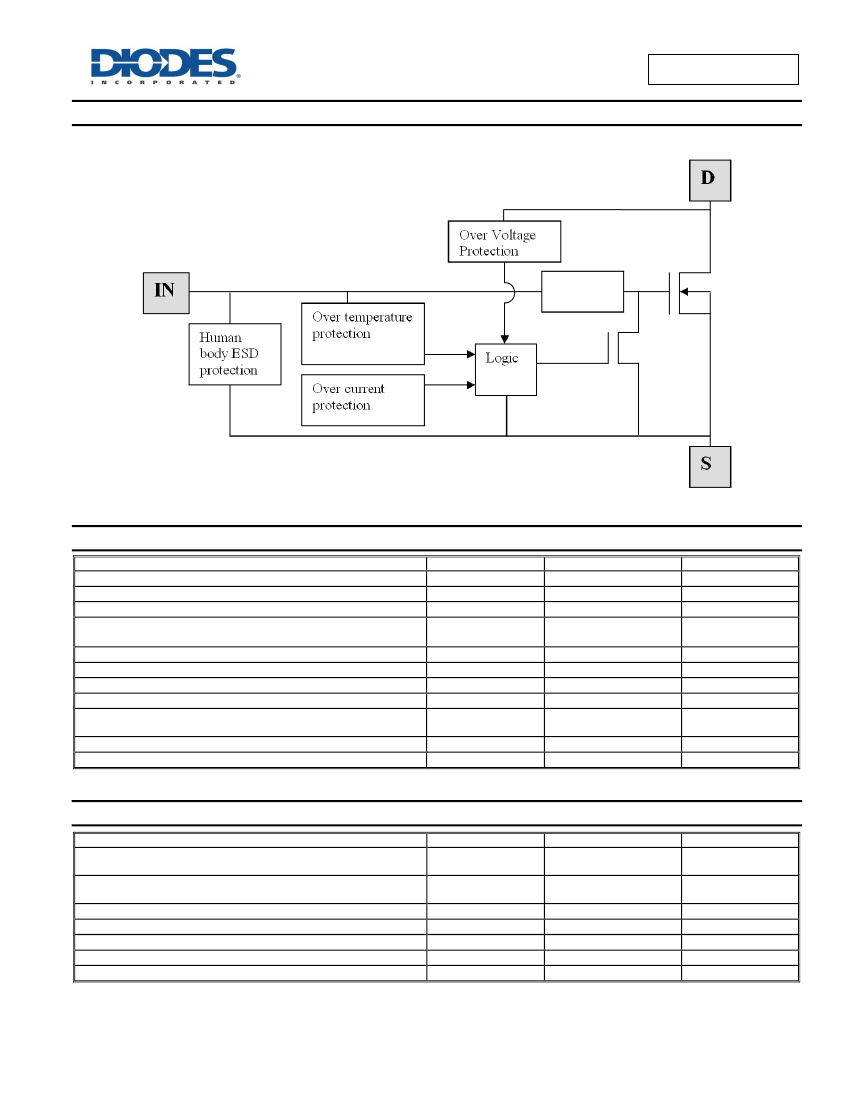

The ZXMS6005DG is a self protected low side IntelliFET MOSFET
with logic level input. It integrates over-temperature, over-current,
over-voltage (active clamp) and ESD protected logic level
functionality. The ZXMS6005DG is ideal as a general purpose switch
driven from 3.3V or 5V microcontrollers in harsh environments where
standard MOSFETs are not rugged enough.
TM
Applications
Lamp Driver
Motor Driver
Relay Driver
Solenoid Driver

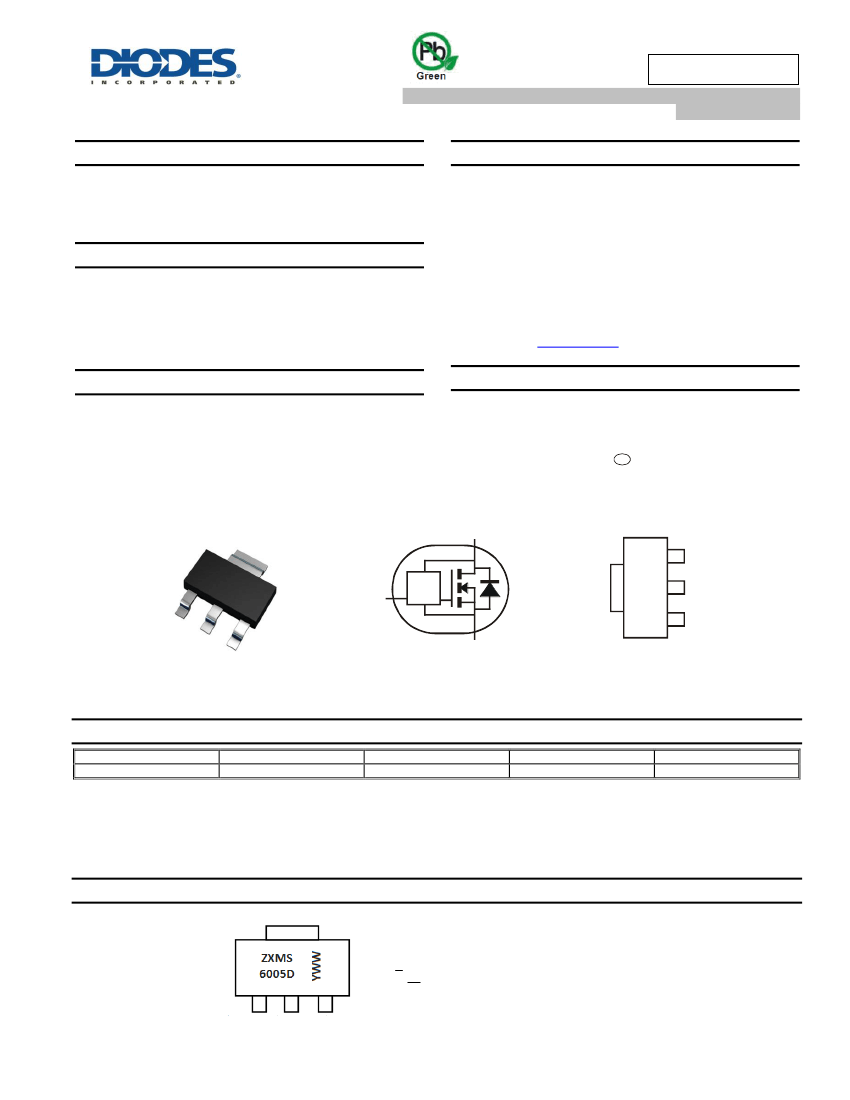

Mechanical Data
Case: SOT223 (Type DN)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
e3
Weight: 0.112 grams (Approximate)
SOT223 (Type DN)
D
S
IN
D
D
IN
S
Top View
Device Symbol
Top View
Pin Out
Ordering Information
(Note 4)
Part Number
ZXMS6005DGTA
Notes:
Marking
ZXMS6005D
Reel Size (inches)
7
Tape Width (mm)
12
Quantity Per Reel
1,000 Units
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.

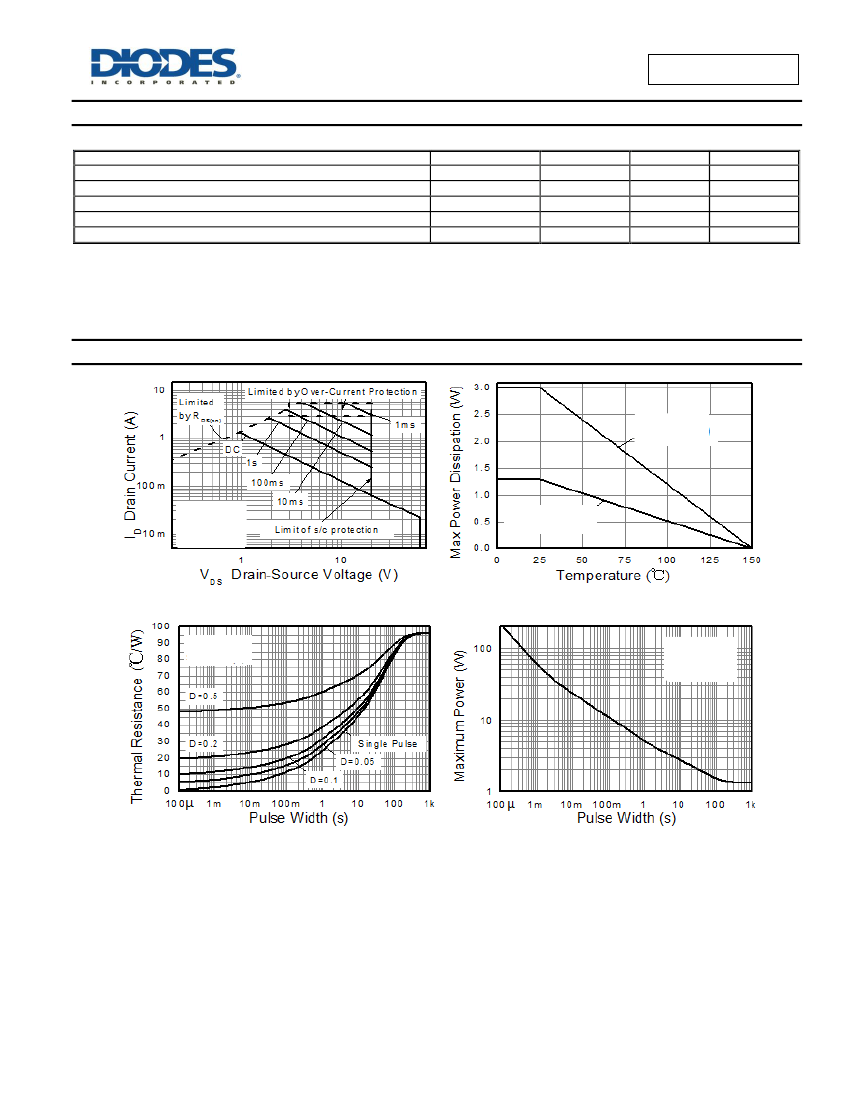

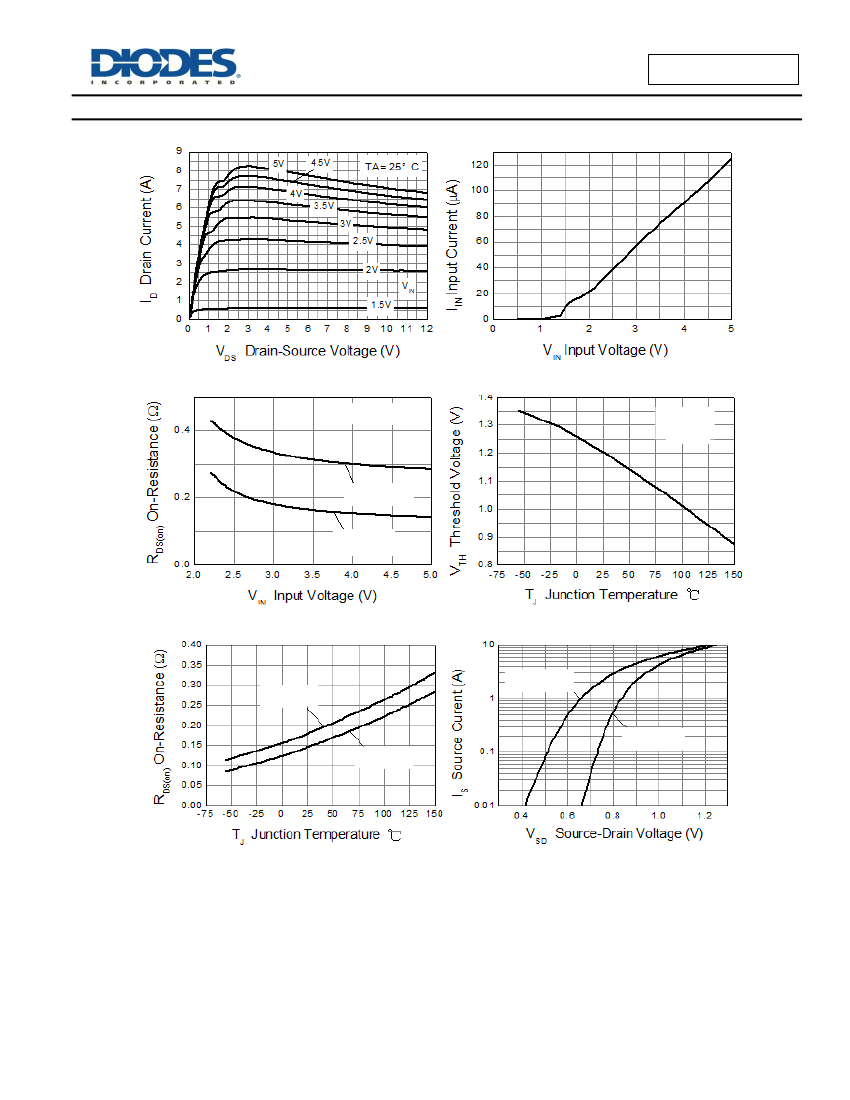

8. The drain current is restricted only when the device is in saturation (see graph ‘Typical Output Characteristic’). This allows the device to be used in the fully
on state without interference from the current limit. The device is fully protected at all drain currents, as the low power dissipation generated outside
saturation makes current limit unnecessary.
9. Over-temperature protection is designed to prevent device destruction under fault conditions. Fault conditions are considered as “outside” normal
operating range, so this part is not designed to withstand over-temperature for extended periods.
