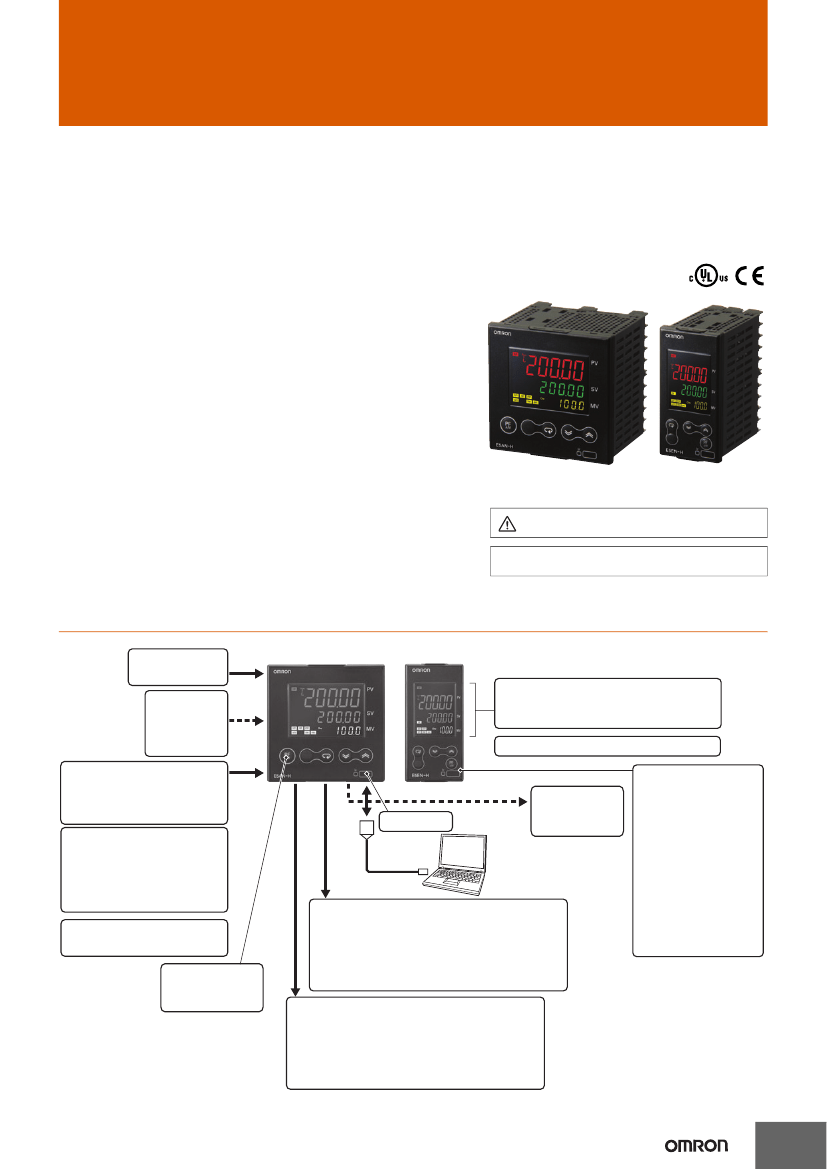

Advanced Digital Temperature Controller
E5AN-H/E5EN-H
(96 x 96 mm and 48 x 96 mm)
CSM_E5AN-H_E5EN-H_DS_E_3_2
A New High-performance Controller: High Resolution, High Speed, and
High Input Accuracy.
Logic Operations and Preventive Maintenance Function. Plus Infrared
Port on Front Panel.
• High-resolution display with 5 digits/0.01°C display.
• High-speed sampling cycle of 60 ms.
• High Accuracy
Thermocouple/Pt input: ±0.1% of PV
Analog input: ±0.1% FS
• Universal inputs on all models (thermocouple, PT, or analog input)
to handle various sensors with one Controller. Models also
available with Remote SP.
• A PV/SV-status display function can be set to automatically
alternate between displaying the status of the Temperature
Controller (auto/manual, RUN/STOP, and alarms) and the PV or
SV.
• Flexible contact outputs with logic operations (AND, OR, and
delays) set from the Support Software (CX-Thermo Ver. 4.0)
• Preventive maintenance for relays in the Temperature Controller
using a Control Output ON/OFF Counter.
• Model available with position-proportional control
96
×
96 mm
E5AN-H
48
×
96 mm
E5EN-H
Refer to
Safety Precautions for E5
@
N/E5
@
N-H.
Refer to
Operation for E5
@
N/E5
@
N-H
for operating
procedures.
Main I/O Functions
Remote SP Input
•
One
Event Inputs
•
None
• Two
• Four
Universal Sensor Inputs
• Universal thermocouple/
Pt/analog
(current/voltage) inputs.
Indication Accuracy
•
Thermocouple/Pt input:
±0.1%
of PV
•
Analog input:
±0.1%
FS
Sampling Period
•
60 ms
PF Key
(Programmable
key function)
E5AN-H
E5EN-H
3-level Display
Simultaneously displays set items, such as the
PV, SV, and MV.
5-digit Display
with
high resolution of 0.01°C
• Auto/manual switching
• Temperature Controller
status display
• Simple program
function
• Logic operations
• Control output ON/OFF
count alarm
• PV change rate alarm
•
Models available
with
RS-485, RS-422, or
RS-232C
communications
Infrared port
Auxiliary Outputs
• Two
• Three
Computer Support Software
CX-Thermo
USB
Control Output 2
(built-in)
Output Unit
• SSR outputs
• Relay output
•
Voltage
output (for driving SSR)
• Current output
• Linear
voltage
output
Control Output 1
(built-in)
Output Unit
• SSR outputs
• Relay output
•
Voltage
output (for driving SSR)
• Current output
• Linear
voltage
output
1
E5AN-H/E5EN-H
Lineup
1 control output
2 auxiliary outputs
E5AN-H/E5EN-H
Advanced Type
Terminal block
Fully universal input
2 control outputs
2 auxiliary outputs
Note:
The Controller can be used for heating/cooling control even if only 1 control output is used.
Model Number Structure
Model Number Legend
Controllers
Option Units
E5AN/E5EN-@@@@@@@M@-@-500
1 2 3 4 5 6 7 8 9 10
1. Type
H: Advanced
2. Control Mode
Blank: Standard or heating/cooling control
P: Position-proportional control
3. Control Output 1
A: Control Output Unit
R: Relay output
S: SSR output
4. Control Output 2
A: Control Output Unit
R: Relay output
S: SSR output
5. Auxiliary Outputs
2: Two outputs
3: Three outputs
6. Option 1
Blank: None
H: Heater burnout/SSR failure/Heater overcurrent detection (CT1)
HH: Heater burnout/SSR failure/Heater overcurrent detection
(CT2)
7. Option 2
B: Two event inputs
BF: Event input + Transfer output
8. Option 3
M: Option Unit can be mounted.
9. Power Supply Voltage
Blank: 100 to 240 VAC
D: 24 VAC/VDC
10.Case Color
Blank: Black
W: Silver
11.Terminal Cover
-500: With Terminal Cover
E53-@
1
1. Function
EN01: RS-232C communications
EN02: RS-422 communications
EN03: RS-485 communications
AKB: Event input
11
Output Units
E53-@@
1 2
1. Control Output
R: Relay output
Q: Voltage output (for driving SSR)
Q3: Voltage output (for driving SSR) + 24 VDC (NPN)
Q4: Voltage output (for driving SSR) + 24 VDC (PNP)
C3: Current output + 4 to 20 mA DC
C3D: Current output + 0 to 20 mA DC
V34: Linear voltage output + 0 to 10 VDC
V35: Linear voltage output + 0 to 5 VDC
2. Version
Blank: Available for E5AN-E5EN-H and E5AK/E5EK.
N: Available only for E5AN-H/E5EN-H.
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
E5CN-H/E5AN-H/E5EN-H Digital Controllers User's Manual Advanced Type (Cat. No. H157)
E5CN-H/E5AN-H/E5EN-H Digital Controllers Communications Manual Advanced Type (Cat. No. H159)
2
E5AN-H/E5EN-H
E5EN-H
Size
Case
color
Power supply
voltage
Control
method
Auxil-
iary
output
Control output 1/2
Control Output Unit
×
2
SSR outputs
×
2
2
Control Output Unit
×
2
Basic
SSR outputs
×
2
100 to 240 VAC
Control Output Unit
×
2
3
SSR outputs
×
2
Relay outputs
×
2
Valve
Black
Control Output Unit
×
2
1/8 DIN
48
×
96
×
78
(W
×
H
×
D)
Basic
SSR outputs
×
2
24 VAC/VDC
Control Output Unit
×
2
3
SSR outputs
×
2
Relay outputs
×
2
Valve
2
Relay outputs
×
2
Control Output Unit
×
2
100 to 240 VAC
Silver
24 VAC/VDC
Basic
2
Control Output Unit
×
2
Control Output Unit
×
2
2
1
2
2
1
2
2
2
2
2
2
2
SSR outputs
×
2
2
Control Output Unit
×
2
2
2
1
1
2
2
2
Relay outputs
×
2
2
2
2
2
2
2
2
2
Optional Functions
Heater
burn- Event
Transfer
RSP
out
inputs
output
1
1
2
2
Model
4 to 20-mA
E5EN-HAA2HBM-500
input
4 to 20-mA
E5EN-HSS2HBM-500
input
4 to 20-mA 4 to 20-mA
E5EN-HAA2HHBFM-500
input
output
4 to 20-mA 4 to 20-mA
E5EN-HSS2HHBFM-500
output
input
4 to 20-mA 4 to 20-mA
E5EN-HAA3BFM-500
output
input
4 to 20-mA 4 to 20-mA
E5EN-HSS3BFM-500
output
input
4 to 20-mA
E5EN-HPRR2BM-500
input
4 to 20-mA 4 to 20-mA
E5EN-HPRR2BFM-500
output
input
4 to 20-mA
E5EN-HAA2HBMD-500
input
4 to 20-mA
E5EN-HSS2HBMD-500
input
4 to 20-mA 4 to 20-mA
E5EN-HAA2HHBFMD-500
output
input
4 to 20-mA 4 to 20-mA
E5EN-HSS2HHBFMD-500
output
input
4 to 20-mA 4 to 20-mA
E5EN-HAA3BFMD-500
output
input
4 to 20-mA 4 to 20-mA
E5EN-HSS3BFMD-500
output
input
4 to 20-mA
E5EN-HPRR2BMD-500
input
4 to 20-mA 4 to 20-mA
E5EN-HPRR2BFMD-500
output
input
4 to 20-mA
E5EN-HAA2HBM-W-500
input
4 to 20-mA 4 to 20-mA
E5EN-HAA2HHBFM-W-500
output
input
4 to 20-mA
E5EN-HAA2HBMD-W-500
input
Accessories (Order Separately)
Output unit
Relay
output
Voltage
output
(for driving
SSR)
Model
E53-RN
E53-QN
E53-Q3
E53-Q4
E53-C3N
E53-C3DN
E53-V34N
E53-V35N
Specifications
SPST-NO, 250 VAC, 5 A (resistive load),
electrical life: 100,000 operations
12 VDC (PNP), max. load current:
40-mA, with short-circuit protection
24 VDC (NPN), max. load current:
20-mA, with short-circuit protection
24 VDC (PNP), max. load current:
20-mA, with short-circuit protection
4 to 20-mA DC, load: 600
Ω
max.,
resolution: approx. 10,000
0 to 20-mA DC, load: 600
Ω
max.,
resolution: approx. 10,000
0 to 10 VDC, load: 1 kΩ min., resolution:
approx. 10,000
0 to 5 VDC, load: 1 kΩ min., resolution:
approx. 10,000
Terminal Cover
Connectable models
E5AN-H
Model
E53-COV16
E5EN-H
Note:
The Terminal Cover comes with the E5CN-@@@-500 models.
Waterproof Packing
Connectable models
E5AN-H
Model
Y92S-P4
E5EN-H
Y92S-P5
Note:
The Waterproof Packing is included with the Controller.
Current
output
Current Transformers (CTs)
Hole diameter
5.8 dia.
12.0 dia.
Model
E54-CT1
E54-CT3
Linear
voltage
output
CX-Thermo Support Software
Model
EST2-2C-MV4
USB-infrared Conversion Cable
Model
E58-CIFIR
USB-Serial Conversion Cable
Model
E58-CIFQ1
4
E5AN-H/E5EN-H
Specifications
Ratings
Power supply voltage
Operating voltage range
Power consumption
No D in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
85% to 110% of rated supply voltage
100 to 240 VAC: 12 VA
24 VAC/VDC: 8.5 VA (24 VAC)/5.5 W (24 VDC)
Any of the following can be selected.
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Current input: 150
Ω
max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.)
ON/OFF control or 2-PID control (with auto-tuning)
Sensor input
Input impedance
Control method
Relay output
Voltage output
(for driving SSR)
Control
output
Current output
Linear voltage output
Built-in SSR output
Relay output for
position-proportional
control
Auxiliary
output
Number of outputs
Output specifications
Number of outputs
Event
input
External contact input
specifications
Number of operations
Output Unit (Install the Output Unit (sold separately).)
75 to 250 VAC, 1 A (resistive load)
Relay output: Open and close: SPST-NO, 250 VAC, 1 A (including in-rush current), electrical life: 100,000 operations min.
Potentiometer input: Must be between 100
Ω
and 2.5 kΩ for maximum open position.
2 or 3 max.
Relay output: SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V,
10 mA
2 or 4 (with an E53-AKB)
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
8 max.
•
Logic operation: Any of the following four patterns can be selected. The input status may be inverted.
(A and B) or (C and D), (A or C) and (B or D), A or B or C or D, A and B and C and D
(A, B, C, and D are four inputs.)
•
Delay:
ON delay or OFF delay for the results of the logic operation given above.
Setting time: 0 to 9999 s or 0 to 9999 min
•
Output inversion: Possible
One work bit per operation
Any of The following can be assigned to up to eight work bits (logic operation results): Event input operations, auxiliary
outputs, or control outputs.
1 max. (Depends on model. Models with transfer output (F in model number)
Current output: 4 to 20 mA DC, Load: 600
Ω
max., Resolution at 4 to 20 mA: Approx. 10,000
1
Current input: 4 to 20 mA (input impedance: 150
Ω ±10%)
Scaling of signal to engineering units (EU)
−19,999
to 30,000 (display: 30,000 max.)
(±0.2% of FS)
±1
digit max.
60 ms
Set digitally using keys on the front panel or by using the RSP input.
11-segment digital display and individual indicators (7-segments displays also possible)
Character height: E5AN-H: PV: 15.8 mm, SV: 9.5 mm, MV: 6.8 mm; E5EN-H: PV: 11.8 mm, SV: 8.1 mm, MV: 5.8 mm
Content of 3-level display: PV/SV/MV, PV/SV/Bank No., or soak time remain
Number of digits: 5 for PV and SV, 4 for MV
Supported (number of banks: 8)
Local SP, alarm settings, PID sets (PID constants, MV upper limit, MV lower limit, etc.)
Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout detection, 40%
AT, 100% AT, MV limiter, input digital filter, self-tuning, temperature input shift, run/stop, protection functions, control output
ON/OFF counter, extraction of square root, MV change rate limit, PV/SV status display, logic operations, automatic cooling
coefficient adjustment
−10
to 55°C (with no condensation or icing), for 3-year warranty:
−10
to 50°C
25% to 85%
−25
to 65°C (with no condensation or icing)
Logic
operations
Operations
Output
Work bit
assignment
Transfer
outputs
Number of outputs
Output specifications
Number of inputs
Signal type
RSP
input
Analog input scaling
Accuracy
Input sampling period
Setting method
Indication method
Bank switching
Other functions
Ambient operating temperature
Ambient operating humidity
Storage temperature
5
京公网安备 11010802033920号
EEWORLD
