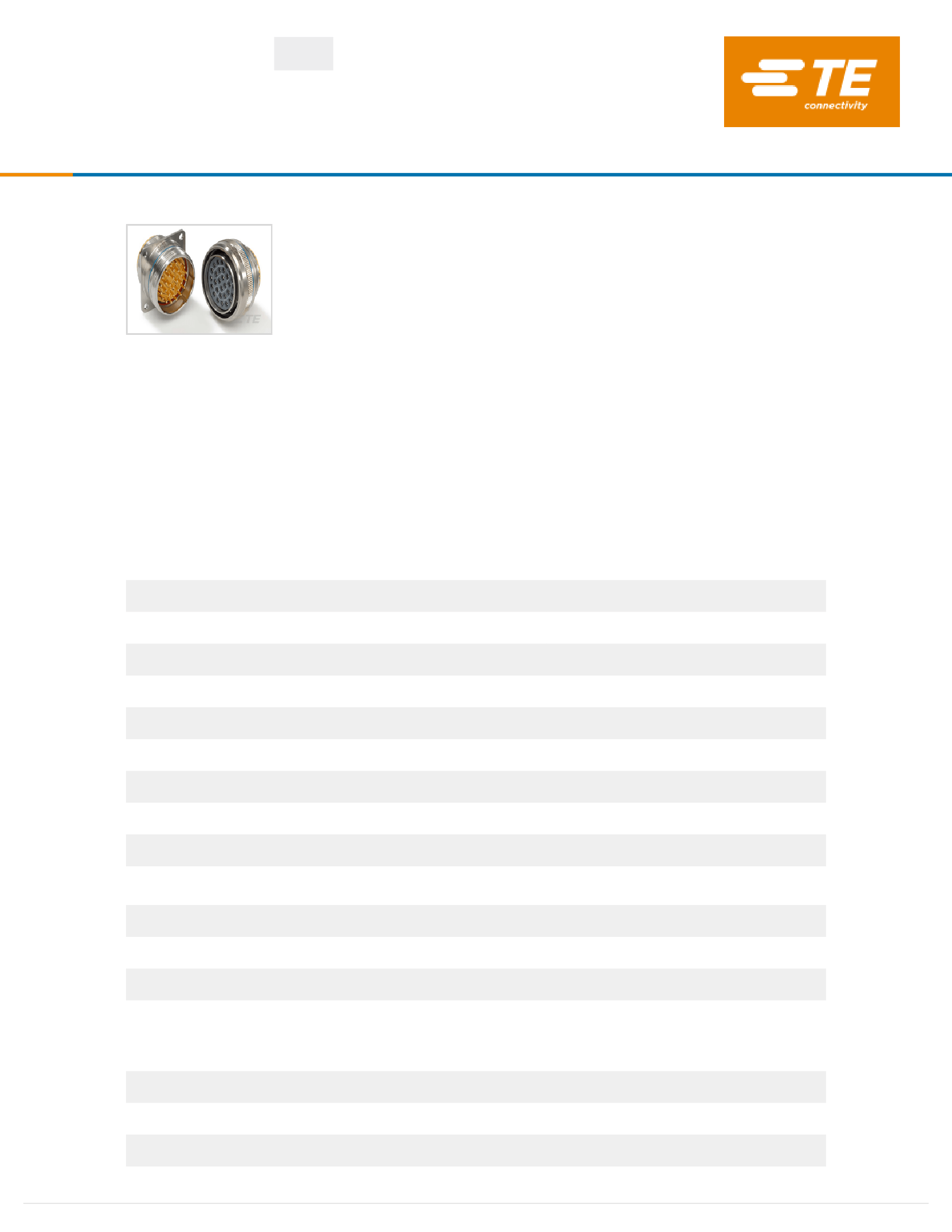

983-6SE 18-31 S7 A6160
TE Part # ZPF000000000147263
TE Internal #: 983-6SE 18-31 S7 A6160
983-6SE 18-31 S7 A6160
DEUTSCH
|
DEUTSCH 983 Series
ACTIVE
TE Part # ZPF000000000147263
TE Internal #: 983-6SE 18-31 S7 A6160
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Product Type:
Connector
Connector System:
Wire-to-Panel
Number of Positions:
31
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Features
Product Type Features
Assembly Type
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Shell Size
Shielded
Connector Style
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Preloaded
Body Features
Shell Plating Material
Shell Material
Insulation Material
Hermetically Sealed
Electrical Connector
Connector
Wire-to-Panel
Yes
Wire & Cable
18
Yes
Plug
Plug
31
0
31
No
Passivated Stainless Steel Firewall
Stainless Steel
Thermoset
No
09/22/2019 11:57AM | Page 1
Contact Features
For support call+1 800 522 6752
983-6SE 18-31 S7 A6160
TE Part # ZPF000000000147263
TE Internal #: 983-6SE 18-31 S7 A6160
Hermetically Sealed
Contact Features
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Contact Type
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Panel Mount Feature
Mating Alignment Type
Mating Retention
Housing Features
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
Approved Standards
No
7.5 A
No
18 – 31
Socket
Crimp
With
Keyed
With
Clocking
.2 – .52 mm²
-65 – 260 °C[-85 – 500 °F]
Power & Signal & Data
BACC63, EN2997, ESC10
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Out of Scope
Out of Scope
Restricted Materials Above Threshold
Current ECHA Candidate List: JUL 2019
(201)
Candidate List Declared Against: JAN 2019
(197)
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Halogen Content
For support call+1 800 522 6752
Free
09/22/2019 11:57AM | Page 2
983-6SE 18-31 S7 A6160
TE Part # ZPF000000000147263
TE Internal #: 983-6SE 18-31 S7 A6160
Free
Solder Process Capability
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.
Also in the Series
DEUTSCH 983 Series
Standard Circular
Connectors(3164)

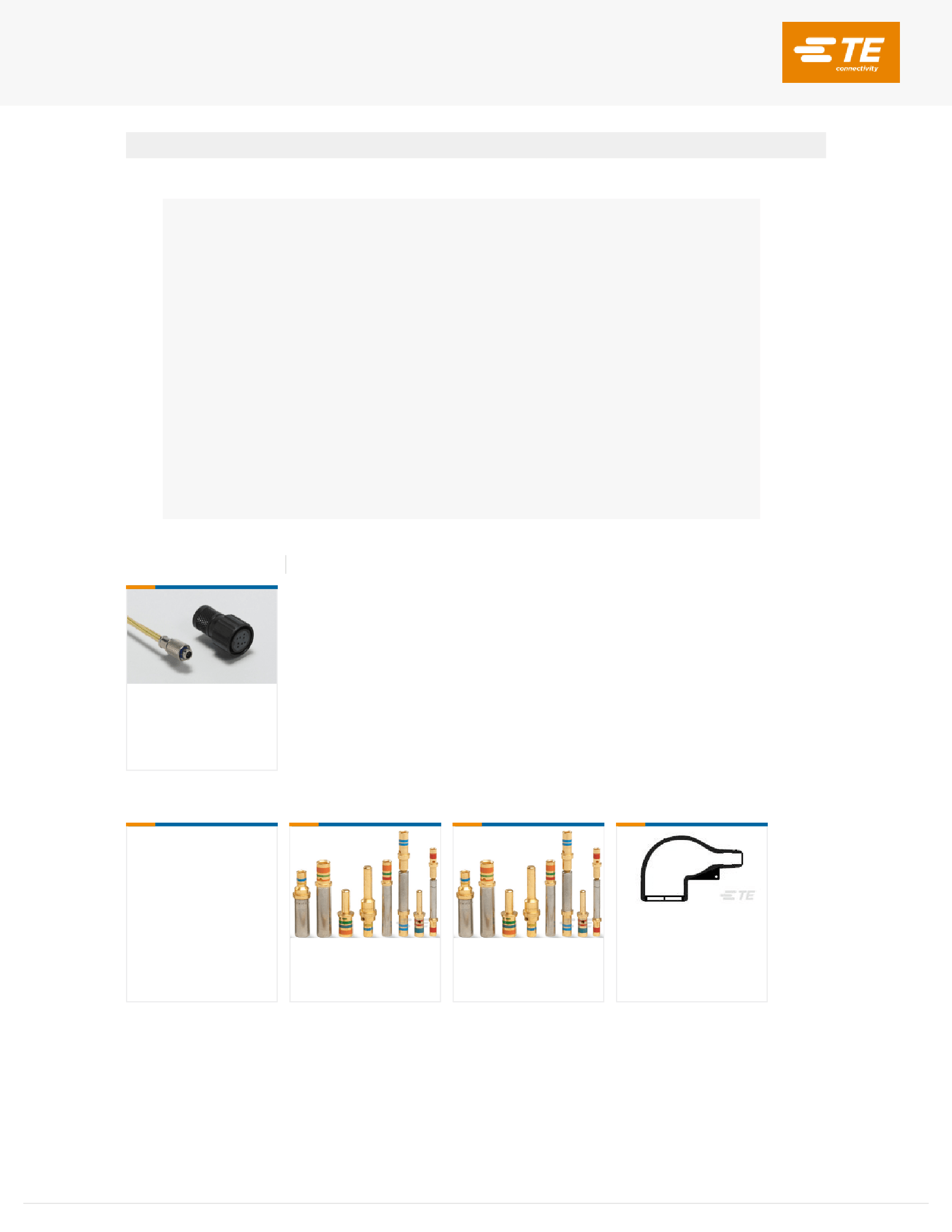

Customers Also Bought
