1793820000

Description
SC 3.81/5/180F3.2SN GN
CategoryThe connector    The connector
File Size78KB,5 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1793820000 Online Shopping

Suppliers Part Number Price MOQ In stock
1793820000 - - View Buy Now

1793820000 Overview

SC 3.81/5/180F3.2SN GN

1793820000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time10 weeks
Is SamacsysN
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.81 mm
Termination typeSOLDER
Total number of contacts5
UL Flammability Code94V-0
Base Number Matches1

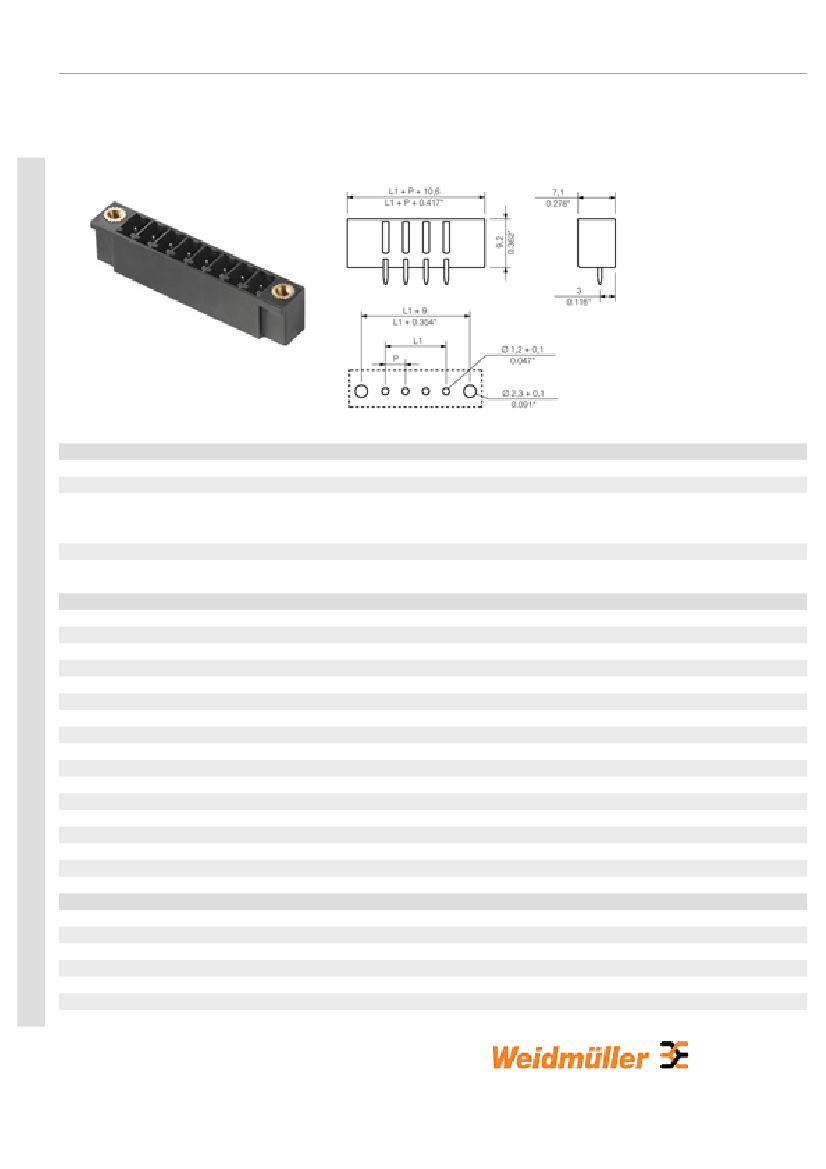

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1793820000
SC 3.81/5/180F3.2SN GN
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 3.81 mm, No. of poles: 5, 180°,
Box
4032248230945
50 pc(s).
Soldered connection
180°
3.81 mm
0.15 inch
5
3.2 mm
Yes
1
1
1.2 mm
+ 0.1 mm
15.24 mm
0.6 inch
1,000 MΩ
IP 20
Safe from finger touch
PA GF
Pale green
Similar to RAL 6021
II
V-0
>= 475
Copper alloy
-1-
