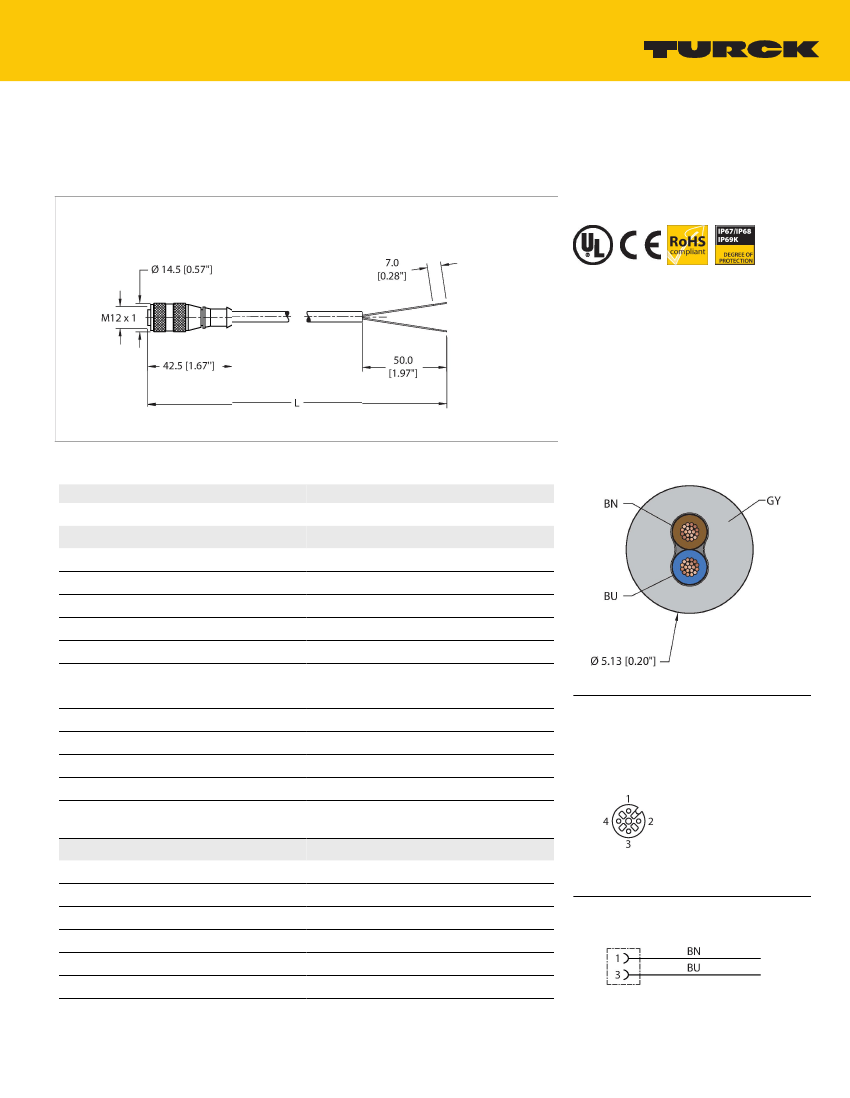

RK 4.22T-x

Actuator and Sensor Cable – Connection Cable

Features

■

M12, Female, Straight, 2-pin

■

Instrumentation Tray Cable

■

Gray PVC jacket, 2X20 AWG

■

Sunlight Resistant

■

-40 Cold Bend Rating

■

Oil Resistant

■

Flame Ratings: UL 1685 FT4, UL1061, CSA FT4

■

Flexlife® and C-Track Approved

Cable cross section

Technical data

Type

Ident. no.

Connector A

Design specification

Number of contacts

Contacts

Contact carriers

Connector body

Coupling nut

Connector seal

Mechanical life

Pollution degree

Protection class

Tightening torque (range)

Cable data

Cable ID

Total number of conductors

Cable diameter

Cable jacket

Conductor diameter

Conductor material

Conductor insulation material

RK 4.22T-x

777007702

Female, M12 × 1, Straight, A-code

Acc. to IEC 61076-2-101

Bronze, CuSn, Gold-plated

Plastic, TPU, Black

Plastic, TPU, Yellow

Brass, CuZn, Nickel-plated

O-ring, Plastic, FKM/FPM

> 100 Mating cycles

When coupled - IP68, IP69K

NEMA: 1, 3, 4, 6P

0.8 … 1.8 Nm

(note max. torque of mating connector!)

RF50529

Ø 5.13 mm

PVC, Gray

0.061 "

TC (Tinned Copper)

PVC

RK 4.22T-x | 10/09/2019 02-00 | technical changes reserved

1|2

Connector A

Contact assignment

Diagram
