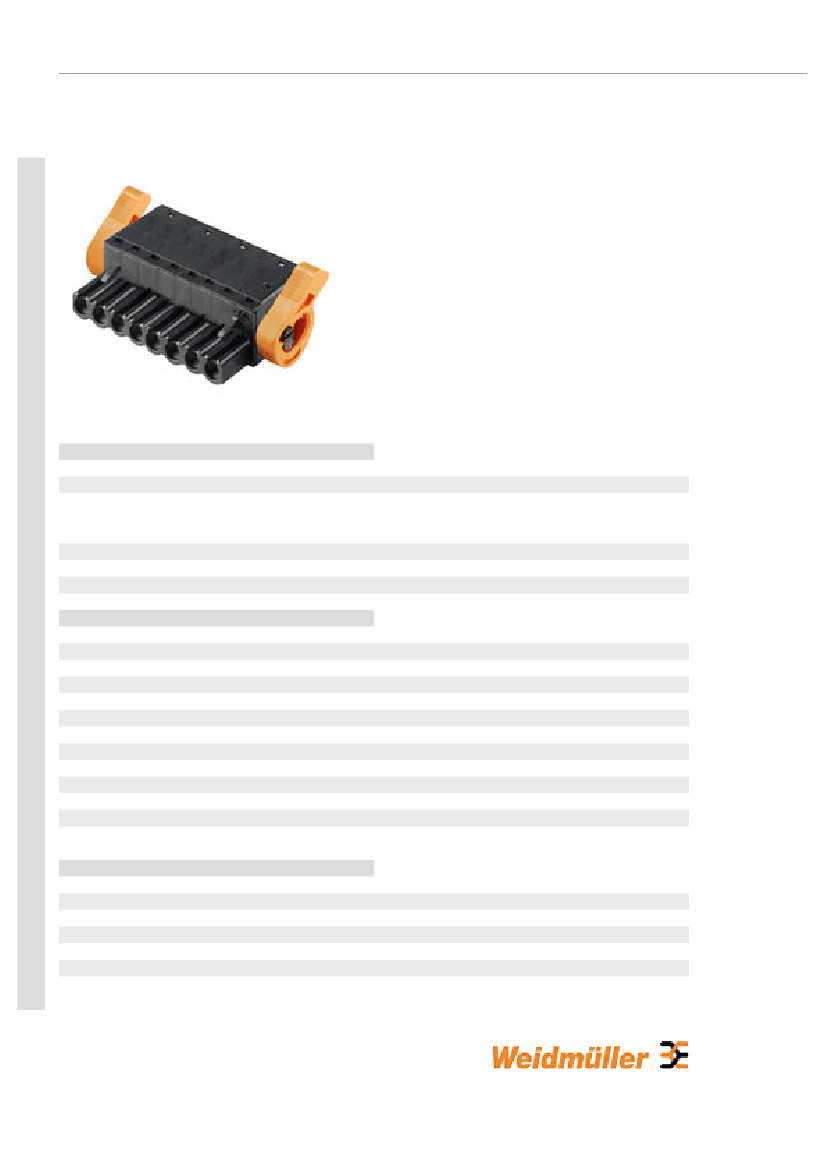

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/180 | BLF 5.08/180LH SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Packaging
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch in mm
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 57 106
Material data
Insulating material
Colour
colour chart
Flammability class UL 94
Contact material
Contact surface
Contact base material
1014840000
BLF 5.08/12/180LH SN BK BX
PCB plug-in connector, PUSH IN, Clamping
range, max.: 3.31 mm², Pitch in mm: 5.08 mm, No.
of poles: 12, 180°, Box
4032248724086
24 pc(s).
Box
PUSH IN
180°
5.08 mm
0.2 inch
12
1
0.6 x 3.5
DIN 5264
10 mm
55.88 mm
2.2 inch
IP 20
Safe from finger touch
PBT
black
Similar to RAL 9011
V-0
CuSn
tinned
CuSn
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/180 | BLF 5.08/180LH SN
Connectable conductors
Clamping range, min.
Clamping range, max.
Conductor connection cross-section AWG, min.
Conductor connection cross-section AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Stranded, min. H07V-R
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
with wire end ferrule, DIN 46228 pt 1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
with plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated current, max. No. of poles (Tu=20°C)
Rated current, no. of poles (Tu=40°C), min.
Rated current, no. of poles (Tu=40°C), max.
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage at overvoltage category/pollution
degree III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
Approvals
Approvals institutes
Classifications
eClass 6.0
Notes
Notes
0.13 mm²
3.31 mm²
AWG 26
AWG 12
0.2 mm²
2.5 mm²
2 mm²
0 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.4 mm x 1.5 mm
18.5 A
6A
12.5 A
6A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
CSA; CURUS
27-26-07-08
Similar products
Order No.
1014730000
Part designation
BLF 5.08/02/180LH SN BK BX
Version
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 2, 180°, Box
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/180 | BLF 5.08/180LH SN
1014980000
1014740000
1014990000
1014750000
1015010000
1014760000
1015020000
1014770000
1015030000
1014780000
1015040000
1014790000
1015050000
1014810000
1015060000
1014820000
1015070000
1014830000
1015080000
1015090000
1014850000
1015100000
1014860000
1015110000
1014870000
1015120000
BLF 5.08/02/180LH SN OR BX
BLF 5.08/03/180LH SN BK BX
BLF 5.08/03/180LH SN OR BX
BLF 5.08/04/180LH SN BK BX
BLF 5.08/04/180LH SN OR BX
BLF 5.08/05/180LH SN BK BX
BLF 5.08/05/180LH SN OR BX
BLF 5.08/06/180LH SN BK BX
BLF 5.08/06/180LH SN OR BX
BLF 5.08/07/180LH SN BK BX
BLF 5.08/07/180LH SN OR BX
BLF 5.08/08/180LH SN BK BX
BLF 5.08/08/180LH SN OR BX
BLF 5.08/09/180LH SN BK BX
BLF 5.08/09/180LH SN OR BX
BLF 5.08/10/180LH SN BK BX
BLF 5.08/10/180LH SN OR BX
BLF 5.08/11/180LH SN BK BX
BLF 5.08/11/180LH SN OR BX
BLF 5.08/12/180LH SN OR BX
BLF 5.08/13/180LH SN BK BX
BLF 5.08/13/180LH SN OR BX
BLF 5.08/14/180LH SN BK BX
BLF 5.08/14/180LH SN OR BX
BLF 5.08/15/180LH SN BK BX
BLF 5.08/15/180LH SN OR BX
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 15, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/180 | BLF 5.08/180LH SN
1014880000
1015130000
1014890000
1015140000
1014900000
1015150000
1014910000
1015160000
1014920000
1015170000
1014930000
1015180000
1014940000
1015190000
1014960000
1015200000
1014970000
1015210000
BLF 5.08/16/180LH SN BK BX
BLF 5.08/16/180LH SN OR BX
BLF 5.08/17/180LH SN BK BX
BLF 5.08/17/180LH SN OR BX
BLF 5.08/18/180LH SN BK BX
BLF 5.08/18/180LH SN OR BX
BLF 5.08/19/180LH SN BK BX
BLF 5.08/19/180LH SN OR BX
BLF 5.08/20/180LH SN BK BX
BLF 5.08/20/180LH SN OR BX
BLF 5.08/21/180LH SN BK BX
BLF 5.08/21/180LH SN OR BX
BLF 5.08/22/180LH SN BK BX
BLF 5.08/22/180LH SN OR BX
BLF 5.08/23/180LH SN BK BX
BLF 5.08/23/180LH SN OR BX
BLF 5.08/24/180LH SN BK BX
BLF 5.08/24/180LH SN OR BX
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 21, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 21, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 23, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 23, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 24, 180°, Box
-4-
