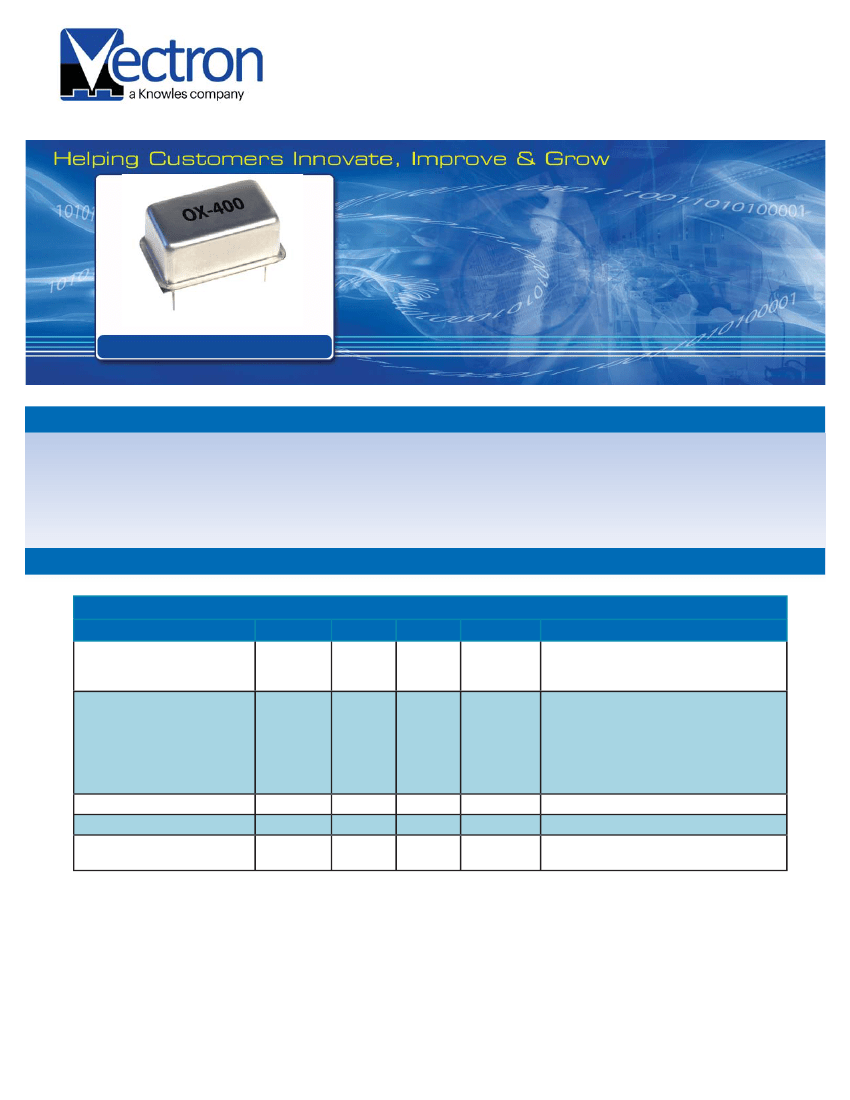

Standard frequencies, 10,19.44,20,24.576,25,26,38.88,
40 MHz);
•
•
•
•
Applications
Base stations
Test equipment
Synthesizers
Military communication equipment
Performance Specifications
Frequency Stabilities
1
(SC-Cut Crystal 10 to 40 MHz)
Parameter
vs. operating temperature range
(referenced to +25°C)
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / year
vs. aging / 10 years
hold over
start up time
Warm-up time
3
minutes
to ±100ppb of final frequency (1 hour
reading) @ +25°C
Min
-5
-10
-10
-0.2
-10
-10
-1.0
-100
-1000
Typical
Max
+5
+10
+10
+0.2
+10
+10
+1.0
+100
+1000
Units
ppb
ppb
ppb
ppm
ppb
ppb
ppb
ppb
ppb
Condition
-20 to +70°C
-20 to +70°C
-40 to +85°C
at time of shipment, nominal EFC
V
S
±5% static
Load ±5% static
after 30 days of operation
after 30 days of operation
after 30 days of operation
Page 1 of 8
Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Supply Voltage (Vs)
Parameter
Supply voltage (standard)
Min
3.135
4.75
Typical
3.3
5.0
Max
3.465
5.25
2.5
1.0
Units
VDC
VDC
Watts
Watts
Condition
Power consumption
during warm-up
steady state @ +25°C
RF Output
Signal [standard]
Load
Signal Level (Vol)
Signal Level (Vol)
Signal Level (Voh)
Signal Level (Voh)
rise time
fall time
Duty Cycle
Tuning Range
±1.0
Linearity
Tuning Slope
Control Voltage Range
0.0
0.0
1.4
2
-85
-110
-130
-143
-150
10%
Positive
2.8
4.0
-70
-95
-115
-135
-145
8.0
Handling & Processing Note
VDC
VDC
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
g
with Vs=3.3V
with Vs=5.0V
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
45
2.4
3.5
5
5
55
Fixed OCXO; No adjust
±3
ppm
with SC cut crystal
ns
ns
%
@ (Voh-Vol)/2
15
0.4
0.5
VDC
HCMOS
pF
VDC
with Vs=3.3V and 15pF Load
with Vs=5.0V and 15pF Load
with Vs=3.3V and 15pF Load
with Vs=5.0V and 15pF Load
Frequency Tuning (EFC)
Opti-
on
5
@ 20MHz
Additional Parameters
Phase Noise
3
Weight
Processing & Packing
supply voltage (Vs)
Output Load
Operable Temperature Range
Storage Temperature Range
-45
-45
Absolute Maximum Ratings
5.5
50
+85
+85
V
pF
°C
°C
with Vs=3.3 & 5.0 VDC
Page 2 of 8
Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Outline Drawing / Enclosure
OX-400
Height “H”
8.5
Pin Length “L”
5.85min.
Pin Connections
1
7
8
14
Electronic Frequency Control Input (EFC)
Ground (Case)
RF Output
Supply Voltage Input
OX-401
Height “H”
10.8
Pin Length “L”
N/A
Pin Connections
1
7
8
14
Electronic Frequency Control Input (EFC)
Ground (Case)
RF Output
Supply Voltage Input
Dimensions in inches mm
Page 3 of 8
Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Standard Shipping Method (OX-401)
Enclosure Type
Typ OX-401
Tape Width W (mm)
44
Quantity per meter
50
Quantity per reel
300
Dimension P
20
Standard Shipping Method (OX-400)
Enclosure Type
Typ OX-400
Method
Tray
colloums
10
rows
8
Quantity per Tray
80
IPC/JEDEC J-STD-020 (latest revision)
Additional Information:
This SMD oscillator has been designed for pick and place reflow soldering.
SMD oscillators must be on the top side of the PCB during the reflow process.
Additional Environmental Conditions
Parameter
Rapid temperature
changes
Vibration
Shock
Solderability
Solvent resistance
ESD
Moisture Sensit.
RoHS compliance
Washable
Description
MIL-883-1010 Cond B 1000 cycles -55/125C
MIL-STD-883 Meth 2007 Cond A 20G 20-2000Hz 4x in each 3axis 4 min
JESD22-B104-B 100G 1,5ms 6 shocks in each direction
J_STD_002C Cond A, Through hole device/ Cond. B, SMD 255C (diving time
50,5sec.) Dip+Look with 8h damp pre-treatment: solder wetting >95%
MIL-STD-883 Meth 2015 Solv. 1,3,4
HBM JESD22-A114-E Class 2 10* 2000V
Level 1 JESD22-A113-B
100% RoHS 6 compliant
washable device
Page 4 of 8
Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
OX - 4000 - D A E - 108 0 - 10M0000000
Product Family
OX: OCXO
Package & Height
THT version: 4000: 8.5 mm
SMD version: 4011: 10.8mm
Supply Voltage
D: 5V
E: 3.3V
RF Output Code
A: HCMOS
Frequency
Frequency Control
0: No Tuning
2: ±1.0 to ±3.0ppm
Stability Code
108: ±10ppb
058: ±5ppb
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
USA:
Vectron International
267 Lowell Road
Suite 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
Europe:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Fax: +49 (0) 7268.801.282
Asia:
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 18 Feb 2014
Page 8 of 8
Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
