403.5 MHz SAW Filter
Applications
Medical Applications
402 - 405 MHz MICS Band
Product Features
Usable bandwidth 3 MHz
Low loss
Balanced to Single-ended operation
No impedance matching required
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically sealed
RoHS
compliant (2002/95/EC),
Pb-free

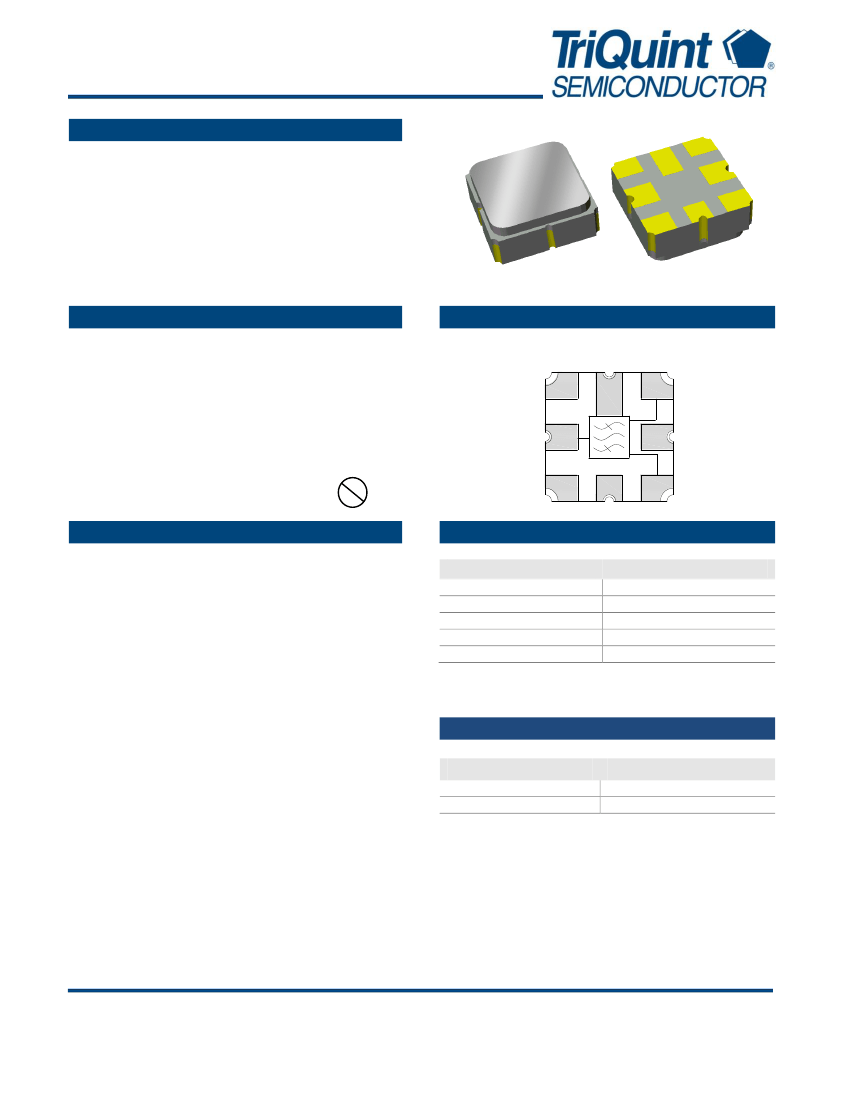

Functional Block Diagram
Top view
1
8
7
2
6
Pb
3
4
5
General Description
856990 is a high-performance RF SAW filter with a center
frequency of 403.5 MHz and bandwidth of 3 MHz
designed to provide front-end selectivity in the 402-405
MHz band. It features low loss with excellent attenuation,
and is designed to be used with a Balanced to Single-
ended operation.
I
t is ideal for short range wireless
medical data applications where small size and low power
consumption are required features. This device is RoHS
compliant and Pb-free.
Pin Configuration
Pin # Bal/Se
5
7
2
1,3,6
4,8
Description
Input -
Input +
Output -
To be Grounded
Case Ground
Ordering Information
Part No.
856990
856990-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev C 8/23/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856990
403.5 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
0 to +55 ºC
Parameter
(3)
Center Frequency
Amplitude Variation
(5)
Insertion Loss
Absolute Attenuation
(6)
Conditions
402 – 405 MHz
402 – 405 MHz
10 – 390 MHz
390 – 398 MHz
410 – 428 MHz
428 – 2000 MHz
Balanced
Single-ended
Min
-
-
-
30
20
20
30
-
-
Typical
(4)
403.5
0.5
2.1
40
37
24
36
120
30
Max
-
1.0
3.0
-
-
-
-
-
-
Units
MHz
dBp-p
dB
dB
dB
dB
dB
Source Impedance
(7)
Load Impedance
(7)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Amplitude Variation is defined as the difference between the lowest and highest responses between 402 and 405 MHz.
6. Relative to zero dB
7. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Operation of this device outside the parameter ranges given above may cause permanent damage.
Parameter
Operable Temperature
Storage Temperature
Input Power
(9)
8.
9.
(8)
Rating
-40 to +85
o
C
-40 to +85
o
C
+10 dBm
o
Device may operate over this range with degraded Electrical Specifications
Device may be operable at this level for the equivalent 5K hours @ +40
C
[ CW Signal ]
Data Sheet: Rev C 8/23/12
© 2012 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856990
403.5 MHz SAW Filter

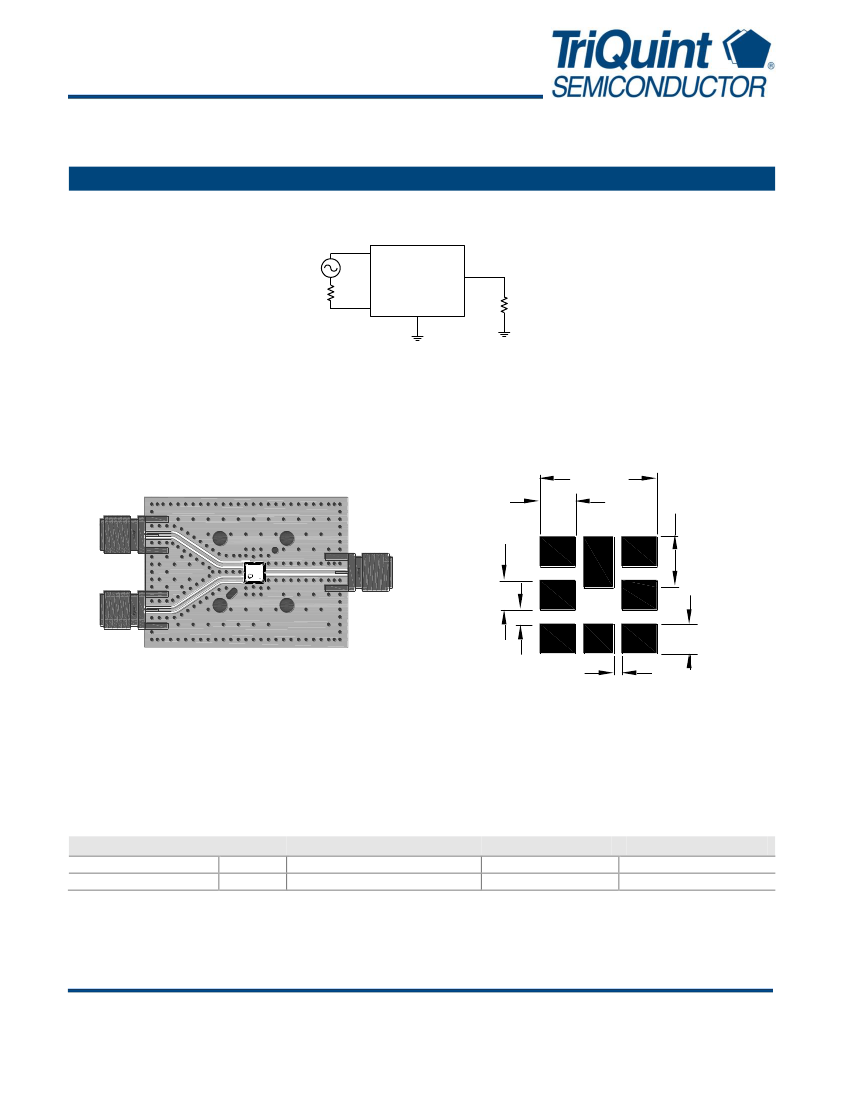

Reference Design 120 Bal Input/30SEoutput
Schematic
5
120
Balanced
Input
2
120
7
1,3,4,6,8
30
30
Single-ended
Output
Notes:
1.
No impedance matching required
2.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
3.20 SQ
.96
.81
JJJYM
1.39
HF
.81
.38
.23
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manufacturer
Radiall USA Inc.
multiple
Part Number
9602-1111-018
960563
Data Sheet: Rev C 8/23/12
© 2012 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856990
403.5 MHz SAW Filter

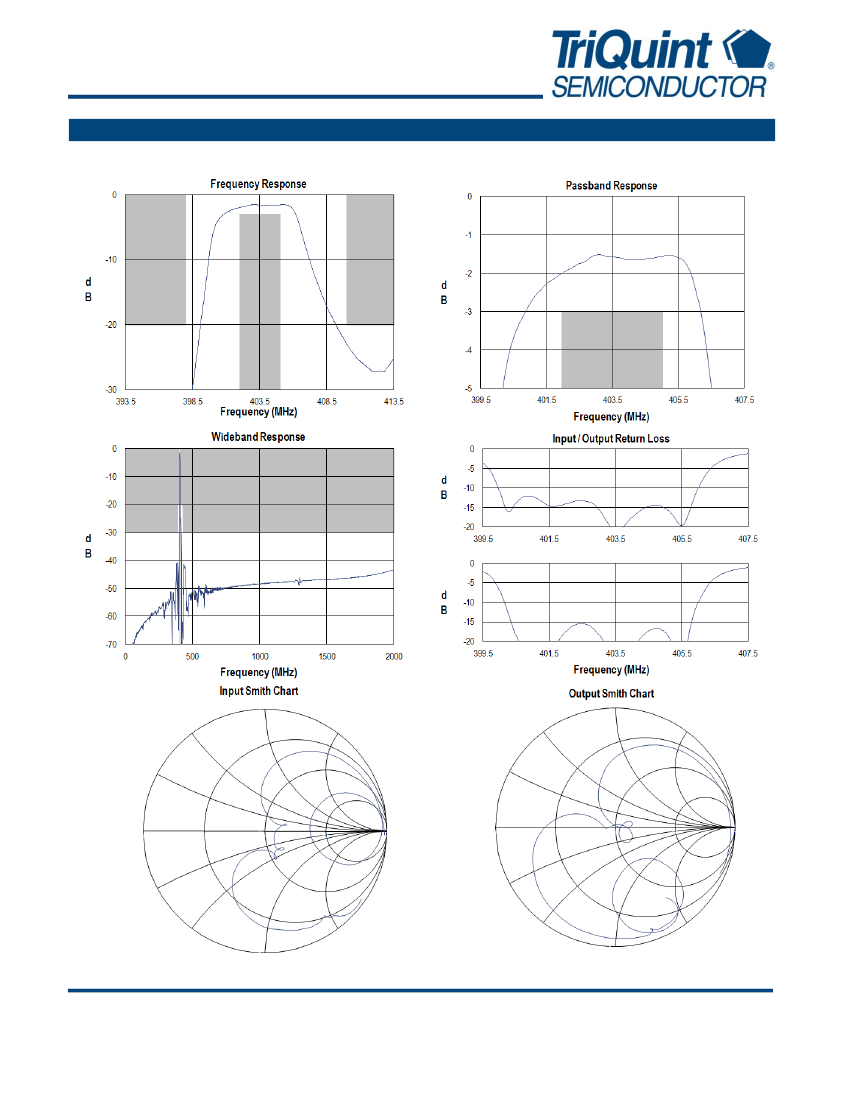

Typical Performance
(at room temperature) Reference Design
Data Sheet: Rev C 8/23/12
© 2012 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856990
403.5 MHz SAW Filter

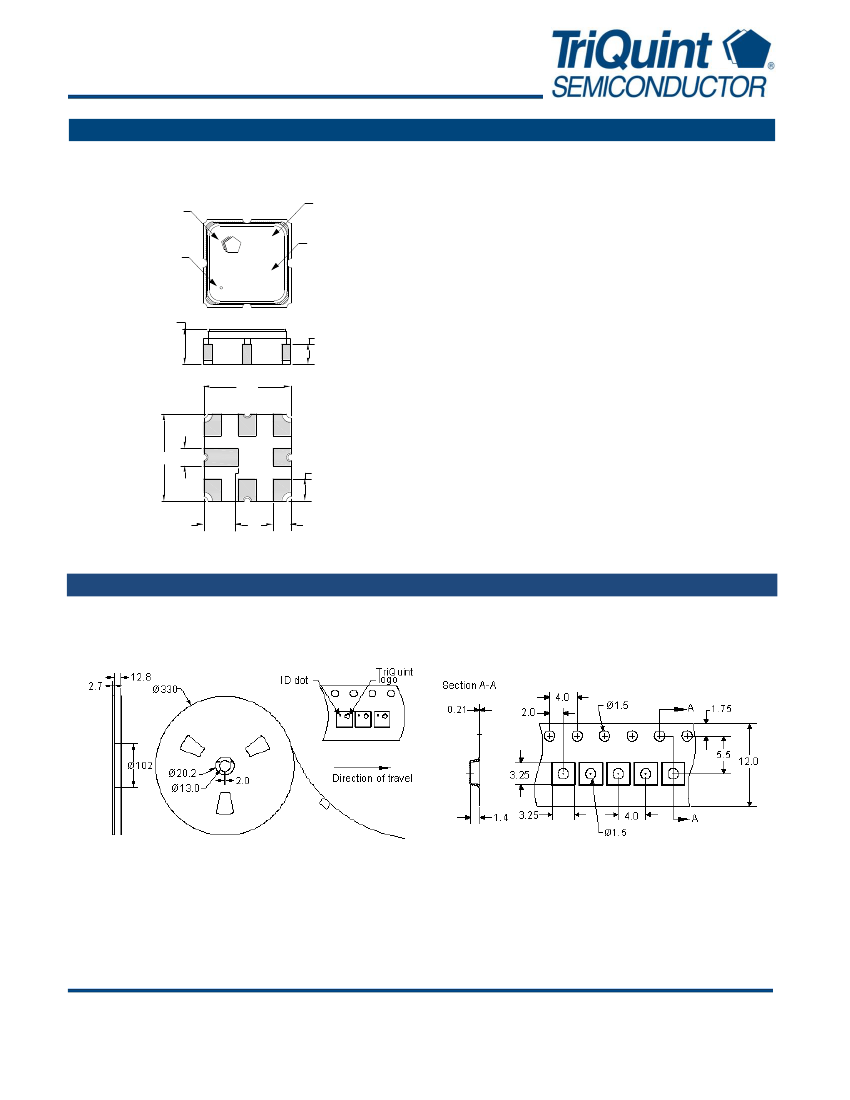

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-12D
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
T The date code consists of day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
ID dot
HF
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
3.00 0.60
0.75
1.20
0.60
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
Data Sheet: Rev C 8/23/12
© 2012 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
