VX-5013-DDJ-1551-38M88 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VX-5013-DDJ-1551-38M88

VX-5013-DDJ-1551-38M88: DescriptionLVDS Output Clock Oscillator; CategoryPassive components oscillator; File Size408KB，6 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric View All

VX-5013-DDJ-1551-38M88 Overview

LVDS Output Clock Oscillator

VX-5013-DDJ-1551-38M88 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
package instruction	DILCC4,.37,200
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	200 ppm
frequency stability	15%
linearity	10%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	38.88 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
Encapsulate equivalent code	DILCC4,.37,200
physical size	14.4mm x 9.5mm x 5.9mm
longest rise time	1 ns
Maximum slew rate	80 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Voltage Controlled Crystal Oscillator

VX-501

Features

•

Surface Mount FR4 based package

•

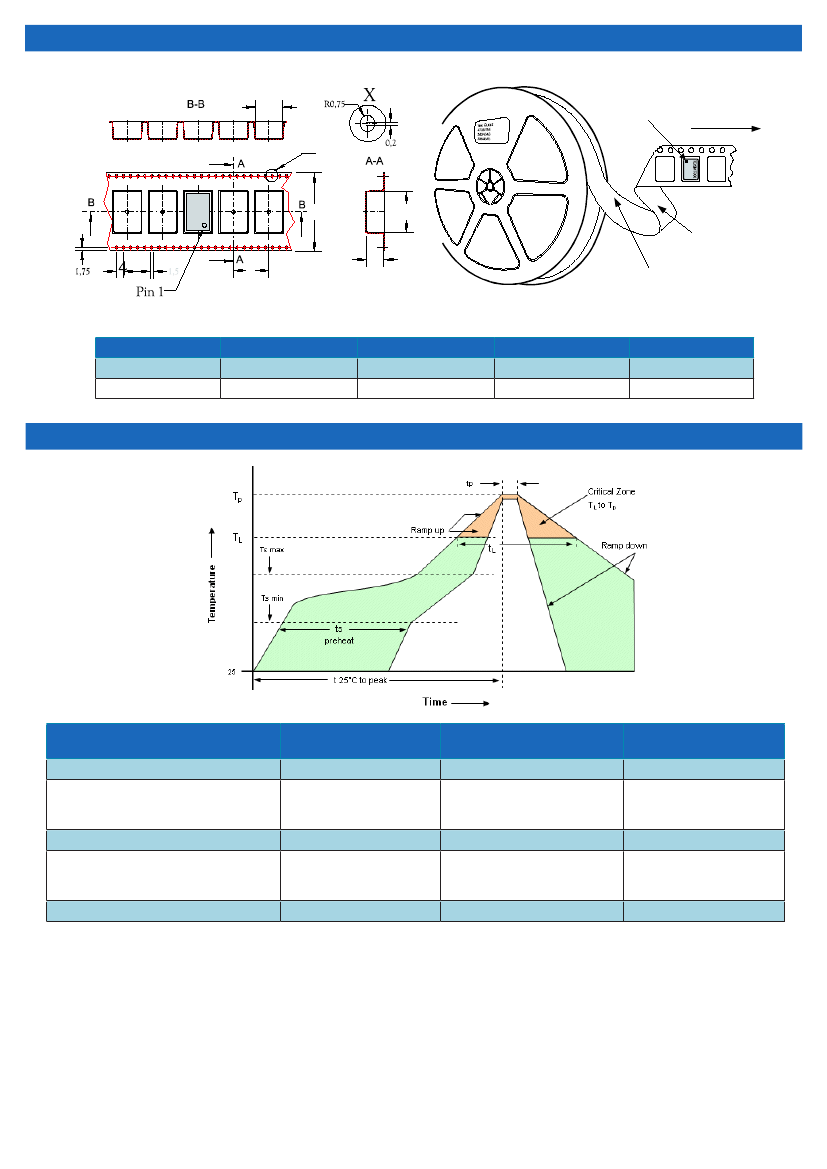

Reflow Process Compatible

•

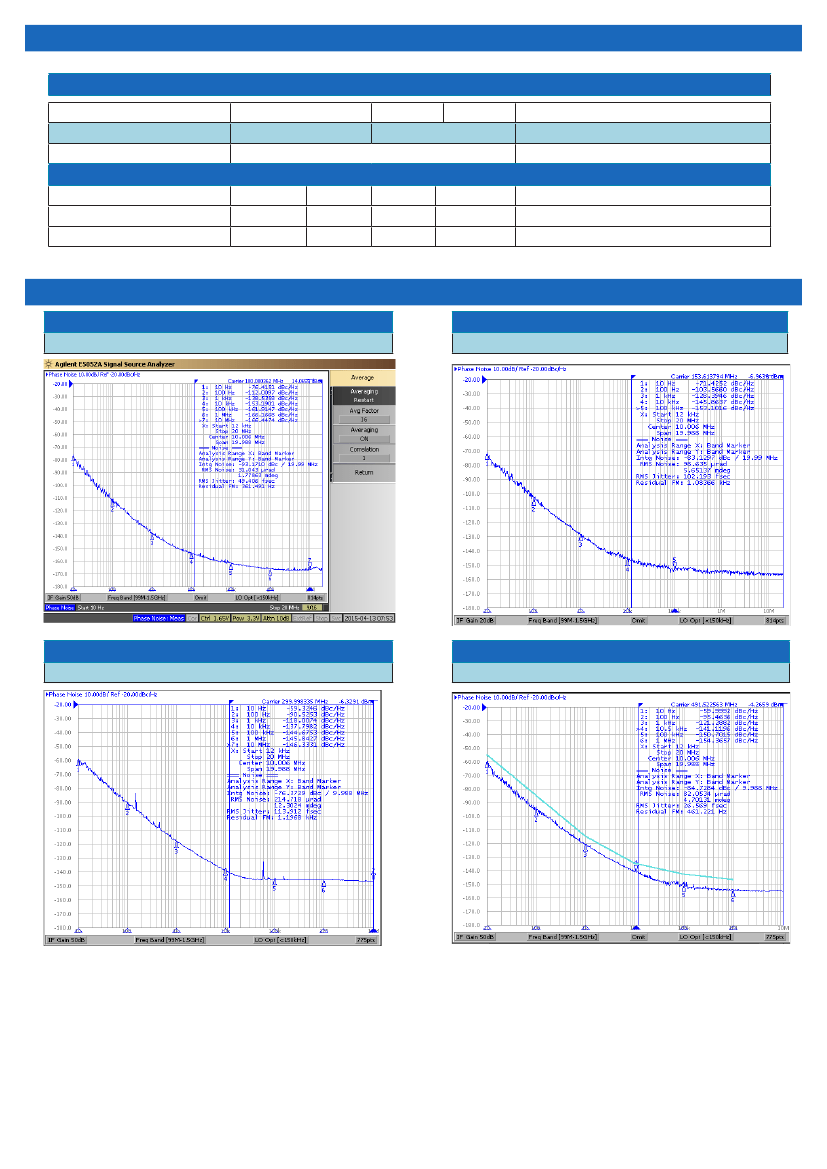

Low Phase Noise and Jitter

•

Tight Stabilities

•

Frequency Range 10 - 1200MHz

•

Standard Frequencies 10; 16,384; 30,72; 32,768; 38,88; 44.8;

52; 61.44; 68.736; 76.8; 77.76; 81.92; 92.16;100; 112; 122.88; 125;

134.4; 153.6; 155.52; 160; 179.2; 184.32; 195; 208; 245.76;

320; 368.64; 400; 448; 471.8592; 491.52; 622.08; 640

•

672; 737.28; 800; 832; 1000; 1040; 1200.1MHz

•

Previous Model Number: C5310

Applications

•

Communication

•

Test & Measurement

•

Medical

•

Military

Performance Specifications

Frequency Stabilities

Parameter

vs. operating temperature range

(referenced to +25°C)

Initial tolerance

vs. supply voltage change

vs. load change

vs. aging / 1st Year

vs. aging (following years)

vs. operating temperature range

(referenced to +25°C)

Initial tolerance

vs. supply voltage change

vs. load change

vs. aging / 1st Year

vs. aging (following years)

Min

-15

-10

-3

-1

-2

-1

-30

-15

-3

-2

-1

Typical

Max

+15

+10

+30

+15

Units

ppm

-40 to +85°C

Condition

-20 to +70°C

@Vc=Vs/2

±5%

Load ±10%

Options

@Vc=Vs/2

±5%

Load ±10%

Page 1 of 5
