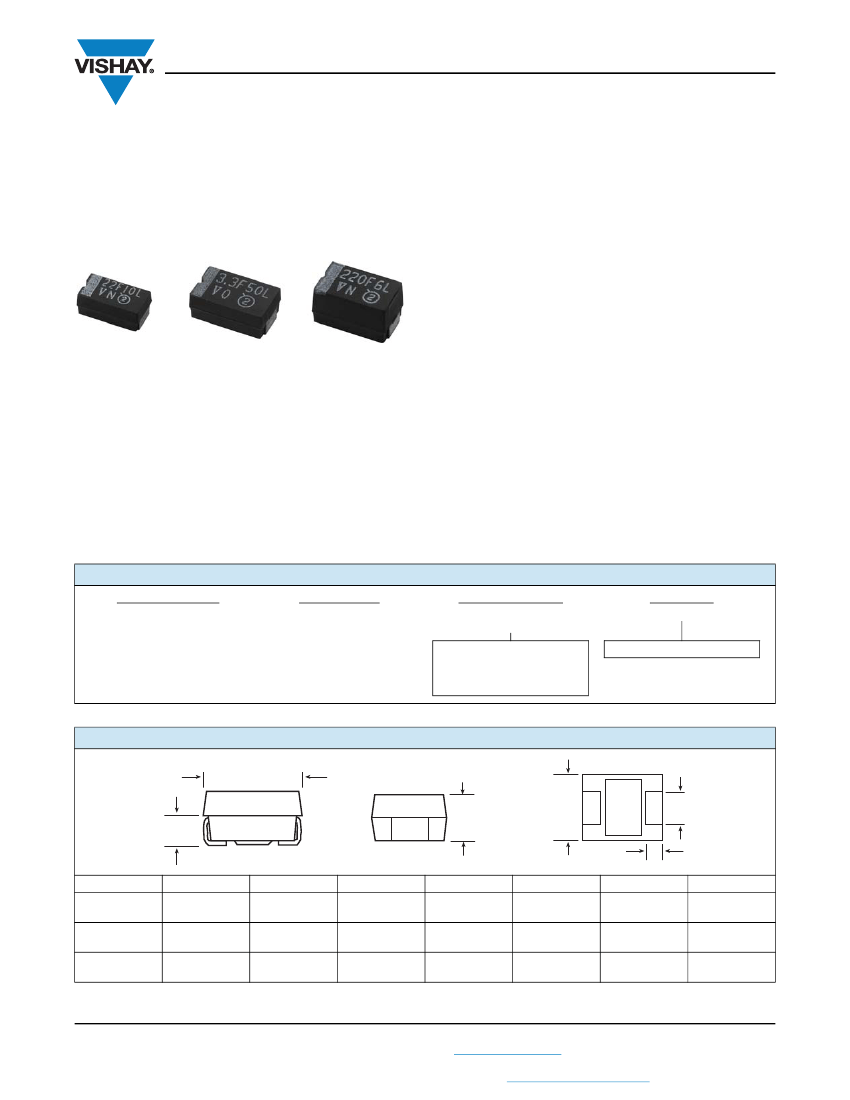

DSCC 04053
www.vishay.com
Vishay
Solid Tantalum Surface Mount Capacitors
T
ANTAMOUNT®
, Molded Case, DSCC Approved, Built-In Fuse
FEATURES
• Terminations: Tin/lead solder plated
• Molded package available in 3 case codes
• Meets MIL-PRF-55365 and EIA535BAAC mechanical and
performance requirements
• Compliant terminations
• Electrically activated internal fuse
Reliability Grade
Weibull B (0.1 %), C (0.01 %) and D (0.001 %) per
MIL-PRF-55365
Non-Weibull Z: Voltage aging a minimum of 10 h at 1.32 times
rated voltage
100 % Surge Current Tested
- Temperature: 25 °C
- Applied voltage: Rated voltage
- Test cycles: 4
- Charge and discharge cycles: 4 s maximum
- Total DC resistance: 1.2
maximum
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
04053-
DRAWING NUMBER
001
DASH NUMBER
Z
RELIABILITY GRADE
(% per 1000 h)
B: 0.1 %
C: 0.01 %
D: 0.001 %
Z: Non-Weibull
T
PACKAGING
T = 7" (178 mm) reel
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
MIN.
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.158 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
MIN.
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Revision: 22-Mar-10
Document Number: 40126
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DSCC 04053
www.vishay.com
Vishay
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
C
C
D
D
D/E
E
C
C
C
C
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
E
C
C
C
C/D
D
D/E
C
C
C
D
D
E
E
C
C
C
C
C/D
D
D/E
C
C
C
D
D
E
E
E
4V
6V
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C
D
D
MARKING
Voltage
Capacitance
μF
Polarity
band (+)
22
F
XX
10
FUSE ACTIVATION
Typical curve
10.0
2
Time (s)
1.0
Vishay
Sprague
logo
Date code
0.1
“C, D, E” case sizes
Marking:
The capacitor shall be marked with an anode (+) polarity band,
capacitance (in microfarads) and the rated DC working voltage
85 °C. The capacitance voltage will be separated by the letter
“F” indicating a fused capacitor. The Vishay Sprague
®
trademark is included. A manufacturing date code is marked on
all capacitors.
0.01
0.001
2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
Current (A)
Revision: 22-Mar-10
Document Number: 40126
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
