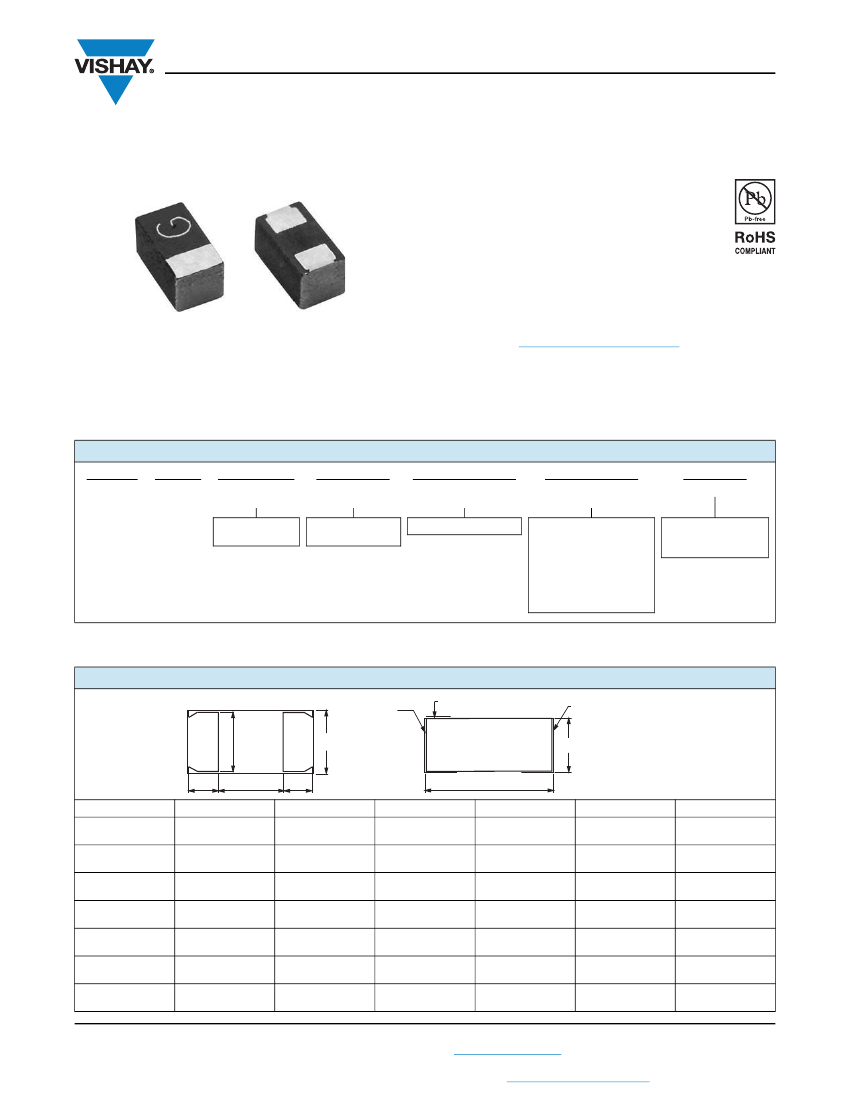

DLA 11020
www.vishay.com
Vishay
Solid Tantalum Chip Capacitors
M
ICROTAN®
DLA Approved, Leadframeless Molded
FEATURES
• High reliability solid surface mount tantalum
capacitors
• Terminations: Gold plated; tin/lead solder
plated
• Reliability Grade: Weibull B per MIL-PRF-55365
• Low DCL for extended battery life
• Small sizes for space constrained applications
• L-shaped terminations for superior board mounting
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
1 μF to 47 μF
Capacitance Tolerance:
± 10 %; ± 20 %
Voltage Range:
6.3 V
DC
to 40 V
DC
ORDERING INFORMATION
11020-
DRAWING
NUMBER
001
DASH
NUMBER
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
E
TERMINATION
FINISH
A = Gold plated
E = Solder plated
B
RELIABILITY GRADE
(% per 1000 h)
B = 0.1
A
(1)
SURGE CURRENT
OPTION
A = 10 cycles
at + 25 °C
B = 10 cycles
at - 55 °C/+ 85 °C
C = 10 cycles
at - 55 °C/+ 85 °C
(before Weibull grading)
Z = No surge current
/HR
PACKAGING
Blank = Full 7" reel
/HR = Half 7" reel
/PR = Partial 7" reel
Note
(1)
Surge current testing is not available for case code M.
DIMENSIONS
in inches [millimeters]
Anode polarity bar
Anode
termination
C
Cathode termination
W
H
P1
P2
P1
L
CASE CODE
M
W
R
P
A
N
T
Revision: 11-Mar-13
L
0.067 ± 0.002
[1.7 ± 0.05]
0.081 ± 0.006
[2.06 ± 0.15]
0.081 ± 0.006
[2.06 ± 0.15]
0.096 ± 0.006
[2.44 ± 0.15]
0.126 ± 0.008
[3.2 ± 0.2]
0.138 ± 0.004
[3.5 ± 0.1]
0.138 ± 0.004
[3.5 ± 0.1]
W
0.037 ± 0.002
[0.95 ± 0.05]
0.053 ± 0.006
[1.35 ± 0.15]
0.053 ± 0.006
[1.35 ± 0.15]
0.059 ± 0.006
[1.50 ± 0.15]
0.063 ± 0.008
[1.6 ± 0.2]
0.110 ± 0.004
[2.8 ± 0.1]
0.110 ± 0.004
[2.8 ± 0.1]
H (Max.)
0.039
[0.99]
0.047
[1.2]
0.062
[1.57]
0.049
[1.25]
0.071
[1.8]
0.047
[1.2]
0.062
[1.57]
P1
0.020 ± 0.004
[0.5 ± 0.1]
0.020 ± 0.004
[0.5 ± 0.1]
0.020 ± 0.004
[0.5 ± 0.1]
0.020 ± 0.004
[0.5 ± 0.1]
0.031 ± 0.004
[0.8 ± 0.1]
0.034 ± 0.004
[0.85 ± 0.1]
0.034 ± 0.004
[0.85 ± 0.1)
P2 (REF.)
0.026 min.
[0.65 min.]
0.028 min.
[0.71 min.]
0.028 min.
[0.71 min.]
0.043 min.
[1.10 min.]
0.063 min.
[1.60 min.]
0.065 min.
[1.65 min.]
0.065 min.
[1.65 min.]
C
0.024 ± 0.004
[0.6 ± 0.1]
0.035 ± 0.004
[0.9 ± 0.1]
0.035 ± 0.004
[0.9 ± 0.1]
0.035 ± 0.004
[0.90 ± 0.1]
0.047 ± 0.004
[1.2 ± 0.1]
0.094 ± 0.004
[2.4 ± 0.1]
0.094 ± 0.004
[2.4 ± 0.1]
Document Number: 40155
1
