222210262682 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 222210262682

222210262682: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200 V, 6800 uF, CHASSIS MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size123KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

222210262682 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200 V, 6800 uF, CHASSIS MOUNT, CAN, ROHS COMPLIANT

222210262682 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2024369023
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.13
capacitance	6800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	25 mΩ
leakage current	2.72 mA
Manufacturer's serial number	102PHR-ST
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
Guideline	IEC60384-4
ripple current	16900 mA
surface mount	NO
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

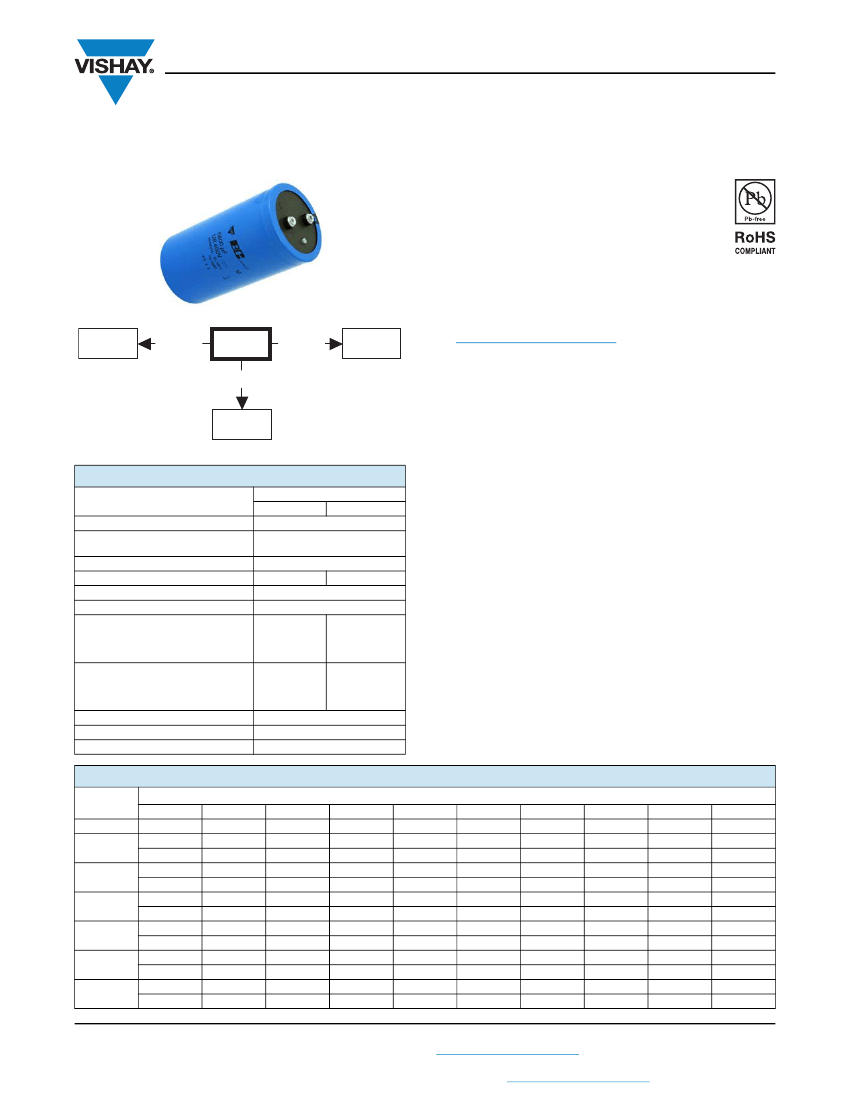

101/102 PHR-ST

www.vishay.com

Vishay BCcomponents

Aluminum Capacitors,

Power High Ripple Current, Screw Terminals

FEATURES

• Polarized aluminum electrolytic capacitors,

non-solid electrolyte

• Large types, cylindrical aluminum case,

insulated with a blue sleeve

• Pressure relief in the sealing

• Long useful life

500

PGP-ST

101/102

PHR-ST

105 °C

106

PED-ST

higher

CV/volume

longer life

• Material categorization: For definitions please see

www.vishay.com/doc?99912

APPLICATIONS

• Buffering and filtering

• Motor drives, inverters, UPS, and traction systems

• Pulsed power supplies

104

PHR-ST

Fig. 1

MARKING

The capacitors are marked with the following information:

VALUE

101

102

35 x 60 to 90 x 220

QUICK REFERENCE DATA

DESCRIPTION

• Rated capacitance (in μF)

• Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Date code (YYMM or in 2 digits according to IEC 60062)

• Name of manufacturer

• Code for factory of origin

• “-” sign to identify the negative terminal, visible from the

top and side of the capacitor

• Code number

• Climatic category in accordance with IEC 60068

Nominal case size (Ø D x L in mm)

Rated capacitance range

220 μF to 1 F

(E6 series), C

Tolerance on C

± 20 %

25 V to 100 V 200 V to 450 V

Rated voltage range, U

Category temperature range

- 40 °C to + 85 °C

Endurance test at 85 °C

2000 h

10 000 h



50 mm)

10 000 h

Useful life at 85 °C

15 000 h



65 mm)

400 000 h

Useful life at 40 °C,



50 mm)

400 000 h

1.4 x I

applied

600 000 h



65 mm)

Shelf life at 0 V, 85 °C

500 h

Based on sectional specification

IEC 60384-4/EN130300

Climatic category IEC 60068

40/085/056

SELECTION CHART FOR C

, U

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

220

330

470

680

1000

1500

2200

(V)

100

35 x 60

200

35 x 60

35 x 80

35 x 105

50 x 80

250

35 x 60

35 x 80

35 x 105

50 x 80

50 x 105

350

35 x 60

35 x 80

50 x 105

65 x 105

385

35 x 60

35 x 80

50 x 80

50 x 105

65 x 105

400

35 x 60

35 x 80

35 x 105

50 x 80

50 x 105

65 x 105

450

35 x 60

35 x 105

50 x 80

50 x 105

65 x 105

76 x 105

Revision: 09-Mar-12

Document Number: 28371

For technical questions, contact:

aluminumcaps2@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
