D100G20U2JL6TJ5

Description
CAPACITOR, CERAMIC, 500 V, U2J, 0.00001 uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size126KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

D100G20U2JL6TJ5 Overview

CAPACITOR, CERAMIC, 500 V, U2J, 0.00001 uF, THROUGH HOLE MOUNT, RADIAL LEADED

D100G20U2JL6TJ5 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instruction, 2014
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance0.00001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high9 mm
length5 mm
Manufacturer's serial numberHV500V
Installation featuresTHROUGH HOLE MOUNT
multi-layerNo
negative tolerance2%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeDISK PACKAGE
Package formRadial
method of packingTR, 14 INCH
positive tolerance2%
Rated (DC) voltage (URdc)500 V
seriesHV 500V NARROW
size code2014
surface mountNO
Temperature characteristic codeU2J
Temperature Coefficient120ppm/Cel ppm/°C
Terminal pitch5 mm
Terminal shapeWIRE
width3.5 mm

D100G20U2JL6TJ5 Preview

HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
FEATURES
Low losses
D
High stability
High capacitance in small size
Kinked (preferred) or straight leads
Lead (Pb)-free available
SH
e3
RoHS
COMPLIANT
tangent
line
APPLICATIONS
Bypassing
Coupling
Resonant circuit
F
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
Capacitors with 5 mm (0.20") lead spacing
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and a lead length from 4 to 30 mm.
Encapsulation is made of phenolic resin.
CAPACITANCE RANGE:
TEMPERATURE COEFFICIENTS:
Class 1 NP0; N750
Class 1, at 1 MHz, 1.2 V (RMS); 1.0 pF to 330 pF
1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than
1000 pF
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
EIA 198
RATED DC VOLTAGE:
500 V
DIELECTRIC STRENGTH:
CLIMATIC CATEGORY:
Class 1 55/125/21
250 % of rated voltage
INSULATION RESISTANCE AT 500 V (DC):
OPERATING TEMPERATURE RANGE:
Class 1 - 55 to + 125 °C
10 000 MΩ
TOLERANCE ON CAPACITANCE:
± 0.25 pF; ± 2 %
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
DISSIPATION FACTOR:
Class 1, C
30 pF;
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
0.2 %
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions.
www.vishay.com
40
For technical questions, contact: CDC@vishay.com
Document Number: 28514
Revision: 20-Mar-07
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
D109C20C0KL6.J5.
D159C20C0KL6.J5.
D229C20C0JL6.J5.
D339C20C0JL6.J5.
D479C20C0HL6.J5.
D689C20C0HL6.J5.
D100G20C0GL6.J5.
D150G20C0GL6.J5.
D220G25C0GL6.J5.
D330G25C0GL6.J5.
D470G29C0GL6.J5.
D680G33C0GL6.J5.
D101G39C0GL6.J5.
D151G47C0GL6.J5.
Vishay BCcomponents
CLASS 1 NP0
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
± 0.25 pF
5.0
5.0
6.5
±2%
7.5
8.5
10.0
12.0
4.0
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD SPACING
F
(mm)
SH
(2)
(mm)
CLEAR TEXT CODE
13
th
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
D689C20U2JL6.J5.
D100G20U2JL6.J5.
D150G20U2JL6.J5.
D220G20U2JL6.J5.
D330G25U2JL6.J5.
D470G29U2JL6.J5.
D680G33U2JL6.J5.
D101G39U2JL6.J5.
D151G47U2JL6.J5.
CLASS 1 N750
6.8
10
15
22
33
47
68
100
150
Notes
± 0.25
5.0
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
1. Maximum thickness 3.5 mm.
2. SH = seated height.
3. Lead style codes refer to inward kinked leads. Other styles available on request.
4. Other capacitance values E12 series available.
PACKAGING
D
max
(mm)
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
SIZE CODE
20
25
29
33
39
43
47
BULK
PACKAGING QUANTITIES
REEL
AMMO
1000
2000
2000
Note
1. The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack.
Document Number: 28514
Revision: 20-Mar-07
For technical questions, contact: CDC@vishay.com
www.vishay.com
41
HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
Δ
Δ
Δ
Δ

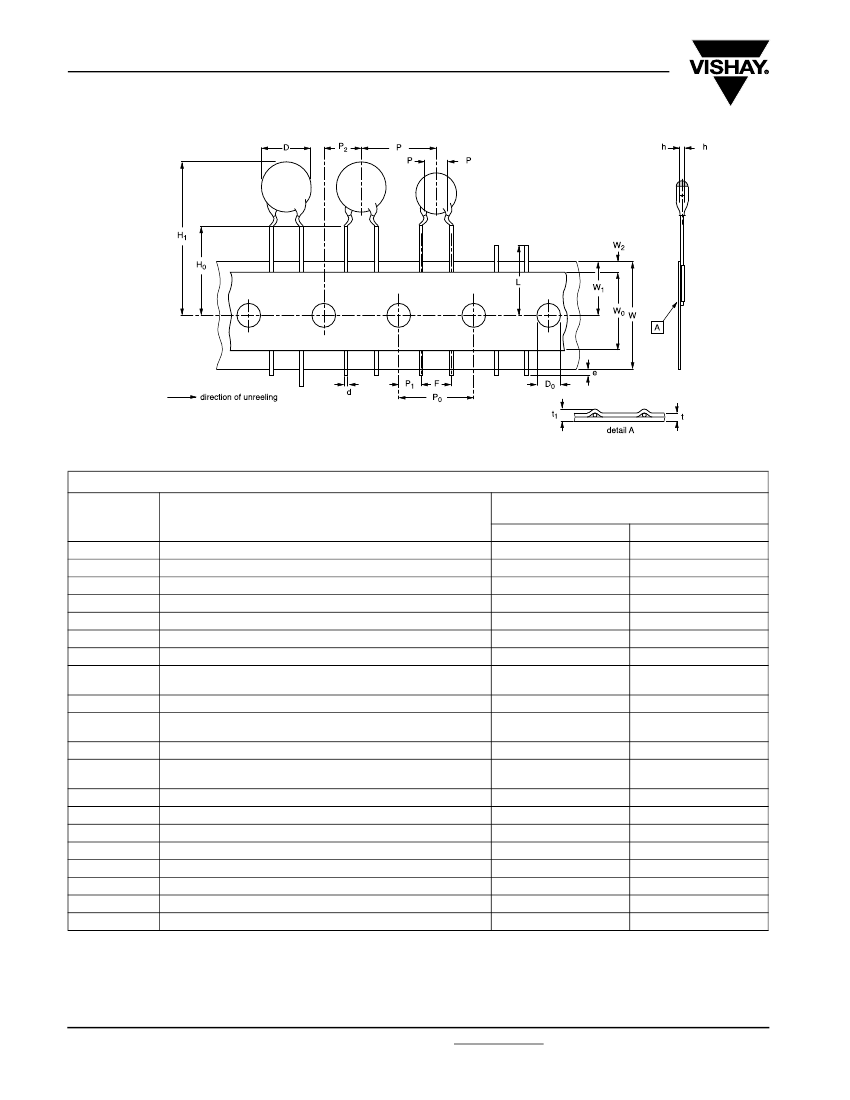

Kinked capacitors on tape, lead spacing 5.0 mm (0.2")
DIMENSIONS OF TAPE
SYMBOL
D
d
P
P
0
ΔP
P
1
P
2
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
PARAMETER
NOMINAL
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
DIMENSIONS
(mm)
TOLERANCE
-
± 0.05
± 1.0
± 0.3; note 1
-
± 0.7; note 2
± 1.3; note 2
+ 0.6
- 0.4
± 1.0
+ 1.0
- 0.5
-
+ 0.75
- 0.5
-
± 0.5
-
-
-
± 0.2
maximum thickness of tape and wires
t
1
Notes
1. Cumulative pitch error: ±
1 mm/20 pitches.
2. Obliquity maximum 3°.
www.vishay.com
42
For technical questions, contact: CDC@vishay.com
Document Number: 28514
Revision: 20-Mar-07
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance

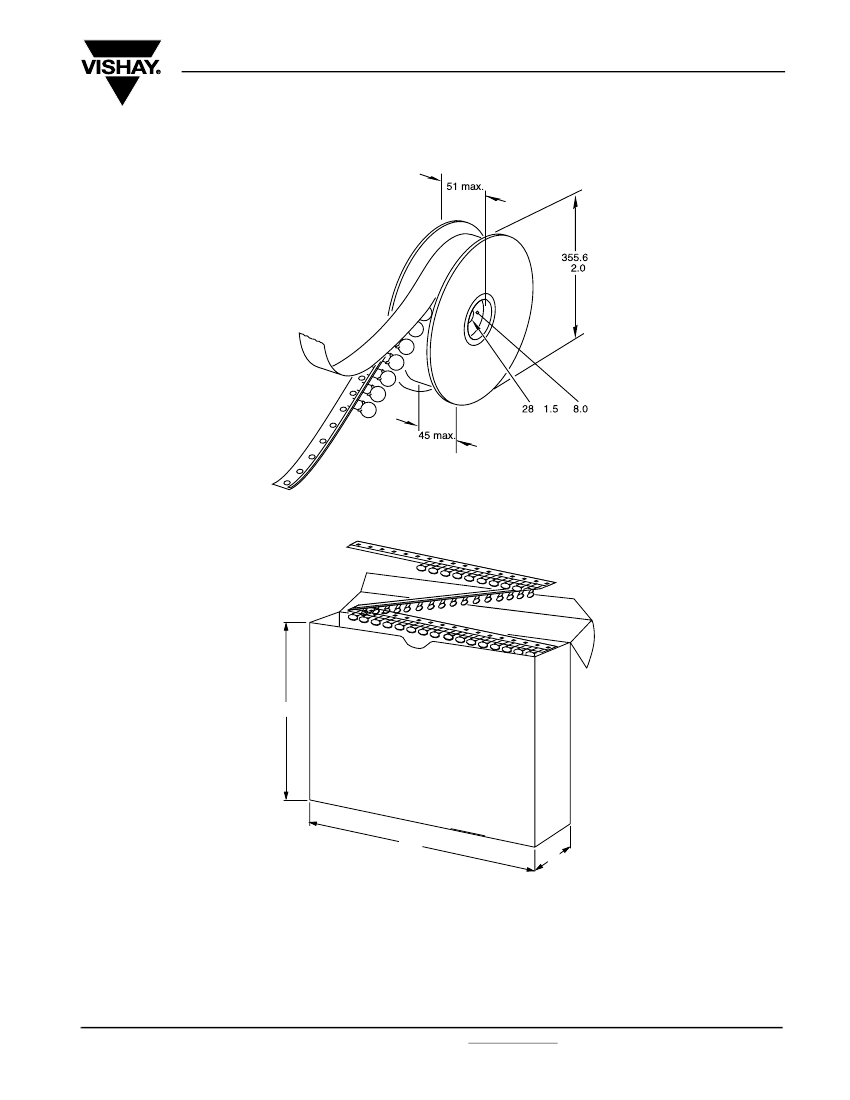

REEL AND TAPE DATA
in millimeters
Vishay BCcomponents
±
±
Reel with capacitors on tape
290
335
50
Ammopack with capacitors on tape
Document Number: 28514
Revision: 20-Mar-07
For technical questions, contact: CDC@vishay.com
www.vishay.com
43
Legal Disclaimer Notice
Vishay
Notice
Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc.,
or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's
terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness
for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Vishay for any damages resulting from such improper use or sale.
Document Number: 91000
Revision: 08-Apr-05
www.vishay.com
1

D100G20U2JL6TJ5 Related Products

D100G20U2JL6TJ5 D229C20C0JL6TJ5 D229C20C0JL6UJ5 D229C20C0JL63J5 D100G20U2JL63J5 D100G20U2JL6UJ5 D220G20U2JL63J5 D220G20U2JL6TJ5 D220G20U2JL6UJ5
Description CAPACITOR, CERAMIC, 500 V, U2J, 0.00001 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, C0G, 0.0000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, C0G, 0.0000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, C0G, 0.0000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, U2J, 0.00001 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, U2J, 0.00001 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, U2J, 0.000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, U2J, 0.000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED CAPACITOR, CERAMIC, 500 V, U2J, 0.000022 uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Vishay Vishay Vishay Vishay Vishay Vishay Vishay Vishay Vishay
package instruction , 2014 , 2014 , 2014 , 2014 , 2014 , 2014 , 2014 , 2014 , 2014
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 0.00001 µF 0.0000022 µF 0.0000022 µF 0.0000022 µF 0.00001 µF 0.00001 µF 0.000022 µF 0.000022 µF 0.000022 µF
Capacitor type CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR
dielectric materials CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC
high 9 mm 9 mm 9 mm 9 mm 9 mm 9 mm 9 mm 9 mm 9 mm
length 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
multi-layer No No No No No No No No No
negative tolerance 2% 11.3636% 11.3636% 11.3636% 2% 2% 2% 2% 2%
Number of terminals 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package shape DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE DISK PACKAGE
Package form Radial Radial Radial Radial Radial Radial Radial Radial Radial
method of packing TR, 14 INCH TR, 14 INCH AMMO PACK BULK BULK AMMO PACK BULK TR, 14 INCH AMMO PACK
positive tolerance 2% 11.3636% 11.3636% 11.3636% 2% 2% 2% 2% 2%
Rated (DC) voltage (URdc) 500 V 500 V 500 V 500 V 500 V 500 V 500 V 500 V 500 V
size code 2014 2014 2014 2014 2014 2014 2014 2014 2014
surface mount NO NO NO NO NO NO NO NO NO
Temperature characteristic code U2J C0G C0G C0G U2J U2J U2J U2J U2J
Temperature Coefficient 120ppm/Cel ppm/°C -/+30ppm/Cel ppm/°C -/+30ppm/Cel ppm/°C -/+30ppm/Cel ppm/°C 120ppm/Cel ppm/°C 120ppm/Cel ppm/°C 120ppm/Cel ppm/°C 120ppm/Cel ppm/°C 120ppm/Cel ppm/°C
Terminal pitch 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
Terminal shape WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE
width 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm
Manufacturer's serial number HV500V - - - HV500V HV500V HV500V HV500V HV500V
