Soft Termination MLCC for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
HMJ325B7223MNHT
Features
Item Summary
0.022uF±20%, 100V,
X7R, 1210/3225 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.022 uF ± 20 %
1210/3225
100 V
3.5 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.30 mm
2.5 ±0.20 mm
1.9 ±0.20 mm
0.60 +0.4/-0.3 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

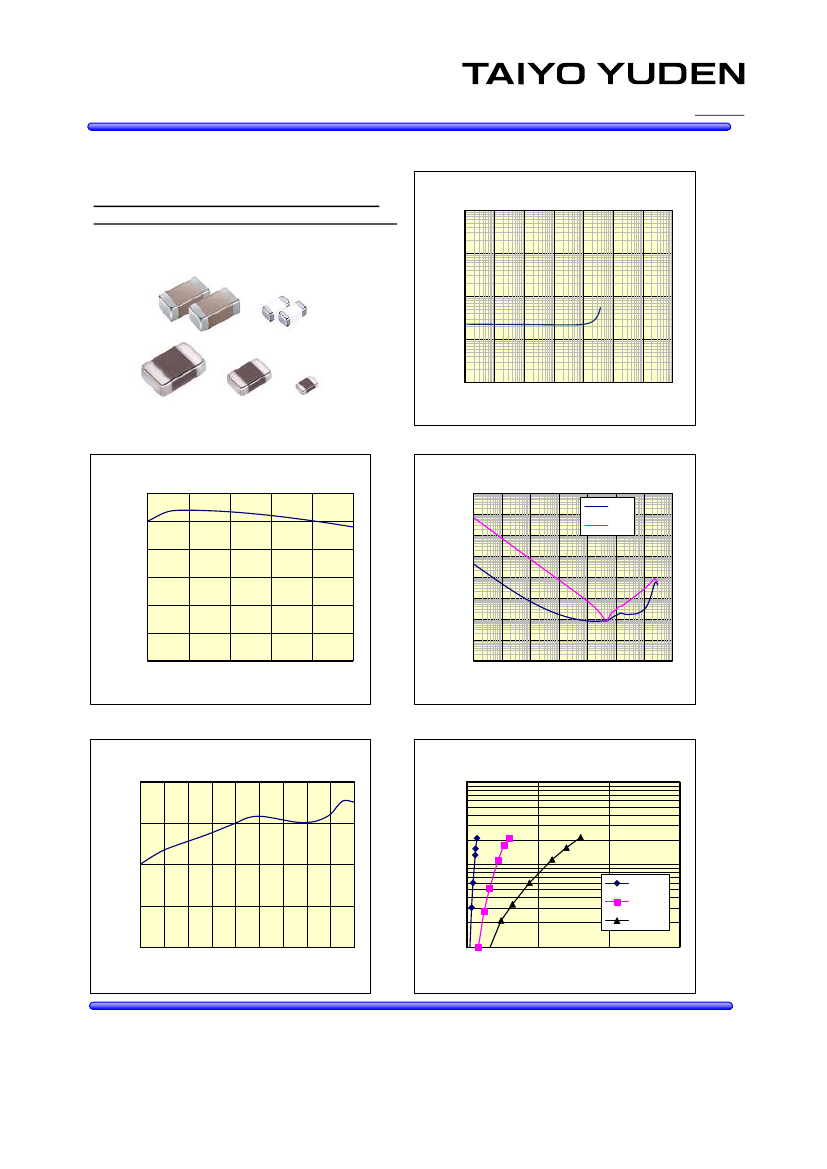

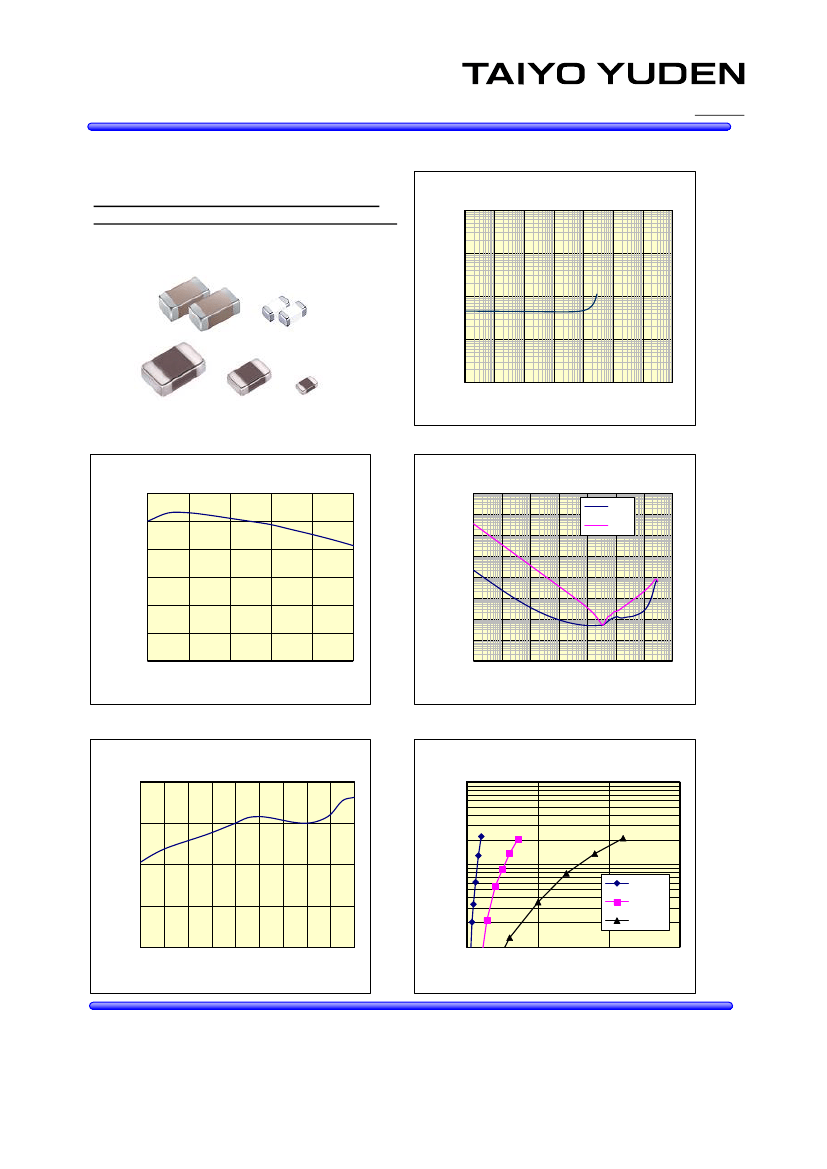

Multi Layer Ceramic Capacitor
○HMJ325B7223MNHT
100V 3225 X7R 0.022uF +/- 20% t=2.1mmMAX
100V 1210 X7R 0.022uF +/- 20% t=0.083inchMAX
Capacitance[uF]
10
-Electrical Characteristics Data-
17QA07
RoHS compliance product
HMJ325B7223MNHT
Capacitance Freq.
1
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
HMJ325B7223MNHT
DC Bias Char.
10
0
-10
100000
HMJ325B7223MNHT
Impedance,ESR Freq.
10000
1000
ESR
Z
Z,ESR[OHM]
0
20
40
60
80
DC Bias Voltage[V]
100
HMJ325B7223MNHT
Capacitance Temp.
dC/C[%]
100
10
-20
-30
-40
-50
1
0.1
0.01
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
HMJ325B7223MNHT
Ripple Current
100
10
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
Ripple Current[Arms]
1.5
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
